Belden 1885ENH CAT7 S/FTP data cable

Belden 1885ENH is a high-quality Category 7 (CAT7) S/FTP data cable for demanding network solutions. The cable is designed for modern 10 Gigabit Ethernet networks and for future high-bandwidth data transmission applications.

Key features

• Cable type: CAT7 / CAT7+ S/FTP (pair-level and overall braided shielding)
• 4 pairs (4 x 2 x 23 AWG)
• Conductor material: solid copper
• Shielding: 100% foil-shielded pairs + copper braid (~30%)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Diameter approx. 7.0 mm
• Nominal impedance: 100 Ω
• Frequency range up to 1000 MHz

Applications

• 10GBase-T (10 Gigabit Ethernet)
• Gigabit Ethernet (1000Base-T)
• Data networks, data centers and backbone cabling
• Horizontal cabling inside buildings
• Industrial and infrastructure installations

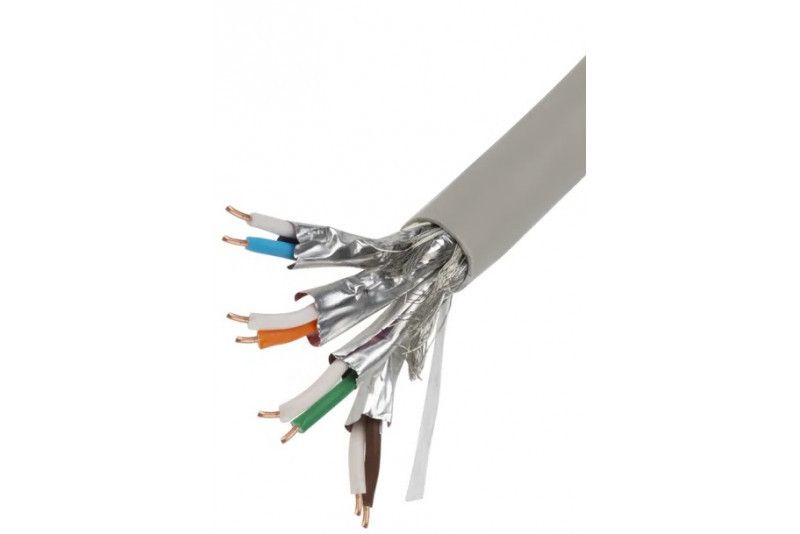

Construction

• 4 shielded twisted pairs
• FPE/PE insulation (foamed polyethylene)
• Aluminium/polyester foil on each pair
• Tinned copper braid as outer shield

Benefits

• Very high immunity to interference (EMI/RFI)
• Suitable for high-speed and high-bandwidth networks
• LSZH jacket for safe indoor installations
• Future compatibility with CAT6A–CAT7 systems
