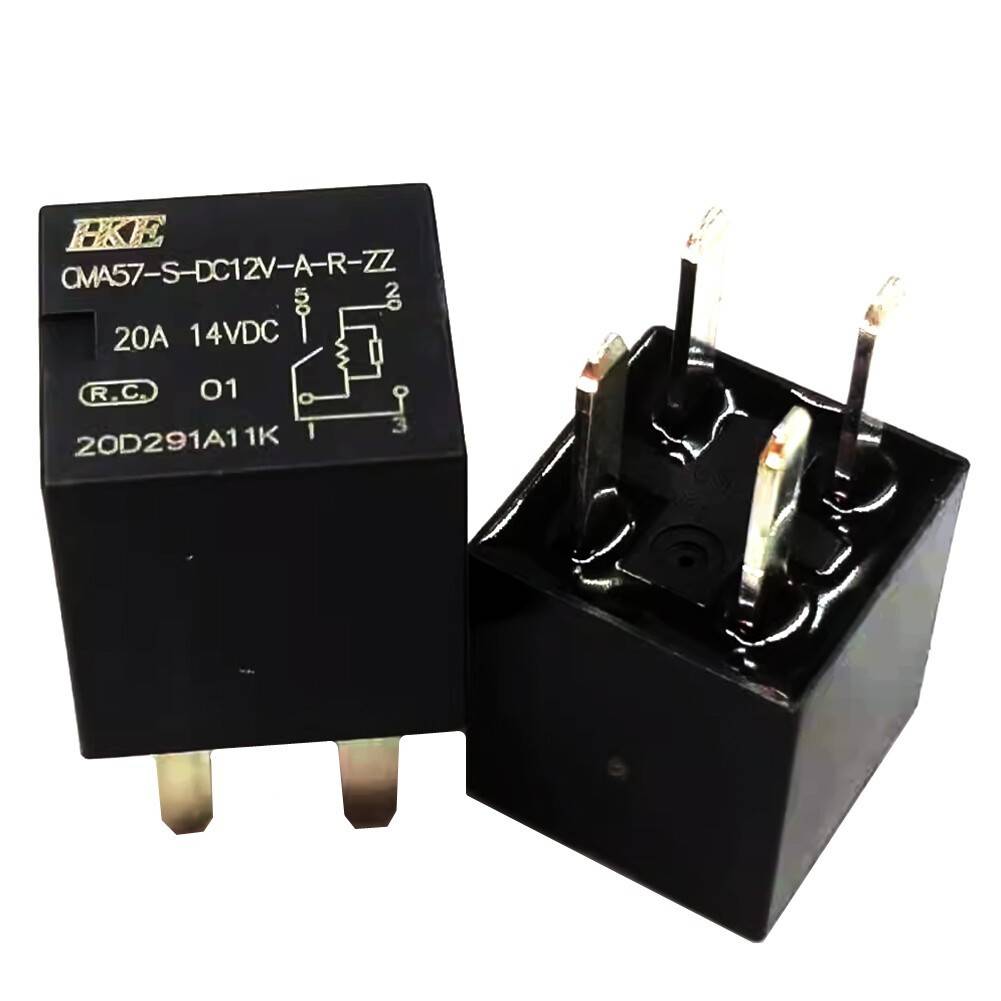

AUTOMOTIVE RELAY 12V 20A 1-NO

In stock 20 pcs

SKU#: CMA57SDC12VAR

AUTOMOTIVE RELAY 12V 20A 1-NO

AUTOMOTIVE RELAY 12V 20A 1-NO

In stock 20 pcs

SKU#: CMA57SDC12VAR

Quantity discount

Quantity (kpl)		Price
10+	undefined%	5,02 € / pcs

5,50 €

In stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

2,8 mm flat quick connector
Ag-alloy contact material
Maximum 50 mohmin contact resistance, 100 000 mating cycles
Minimum 100 mohmin insulation resistance at 500 VDC, maximum 10 ms operate and release time
12 VDC nominal voltage, 155 ohmin ±10 % coil resistance
1000 ohmin parallel resistance, 7,2 VDC operating voltage
dimensions: 15,6 mm × 15,2 mm × 16,5 mm
Operating temperature range -40 °C – +125 °C

Product Information

Availability In stock
Product path Home new-arrivals AUTOMOTIVE RELAY 12V 20A 1-NO
SKU CMA57SDC12VAR
Attributes
- Operating temperature -40...+125°C
- Voltage class 12V
- Power Class 20A
- Control voltage 12VDC
- Connector type 2,8x0,5mm lattaliittimet
