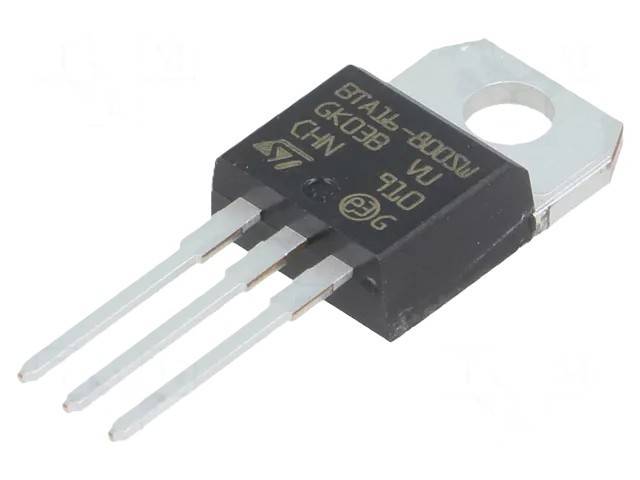

BTA16-800SWRG Triac 800 V / 16 A

BTA16-800SWRG is a powerful isolated triac manufactured by STMicroelectronics for controlling AC loads. The component is suitable for switching and controlling 230 VAC loads such as heating elements, motors, pumps, lighting and other similar loads.

Features

• Rated current: 16 A RMS
• Repetitive voltage (VDRM/VRRM): 800 V
• Sensitive 10 mA gate drive (SW version)
• Snubberless design for inductive loads
• Insulated TO-220AB package
• High noise immunity (dV/dt)
• RoHS compliant

Applications

• Power control for heating equipment
• Motor speed control
• Control of pumps and fans
• Industrial automation
• Light dimmers and mains loads
• SSR and optotriac-controlled switching

Technical specifications

• Manufacturer: STMicroelectronics
• Product code: BTA16-800SWRG
• Type: Triac
• Package: TO-220AB Insulated
• Maximum current: 16 A
• Maximum voltage: 800 V
• Gate trigger current (IGT): 10 mA
• Mounting: THT, through-hole

BTA16-800SWRG is suitable as a replacement for many 16 A / 800 V triacs, such as the BTA316-800ET model, when a sensitive 10 mA gate drive and an insulated TO-220 package are required.
