Power resistor 200W (Pn @ 40°C)

• resistance 75 Ω +/- 10%
• dimensions 360x60x31 mm
• weight 1,3kg
• built-in temperature monitor
• cables 300mm

Pulse load / environment at 40°C:

• 25,6kW 1s every 120s
• 5,2kW 5s every 120s
• 2,6kW 10s every 120s
• 0,7 kW 40s every 120s

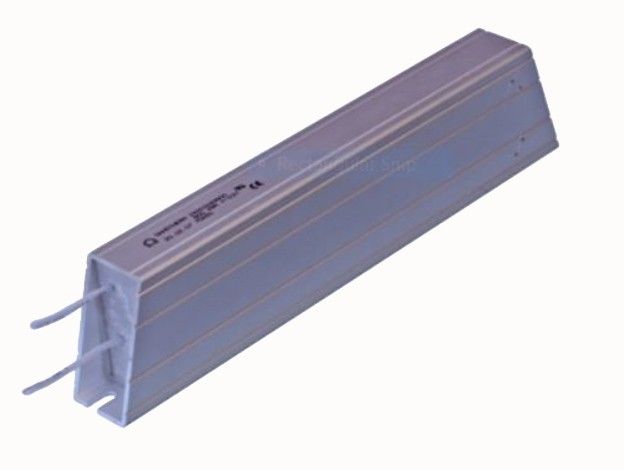

The temperature monitor's separate wires are not visible in the resistor shown in the picture.
Image for guidance, exact details in the brochure.
