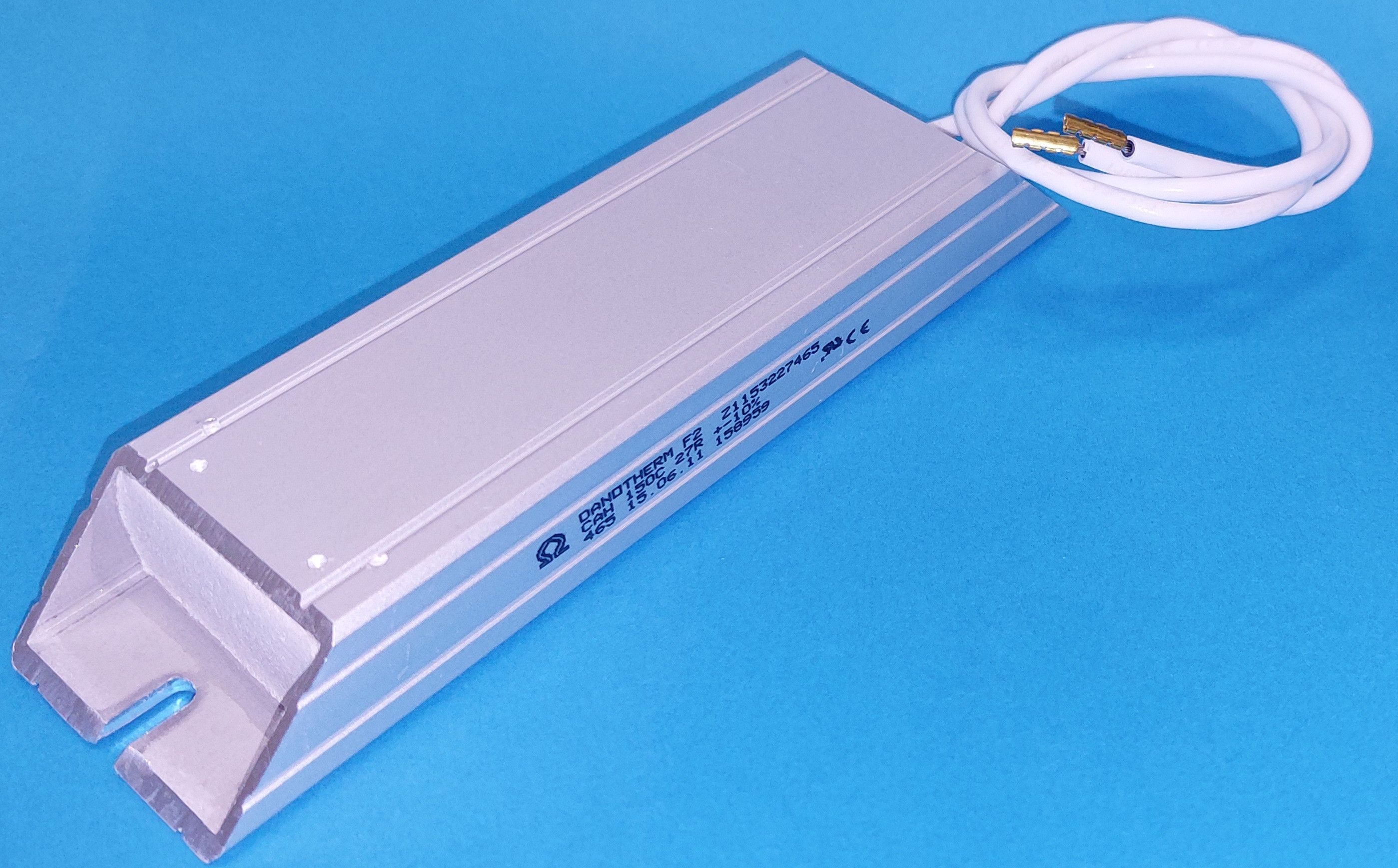

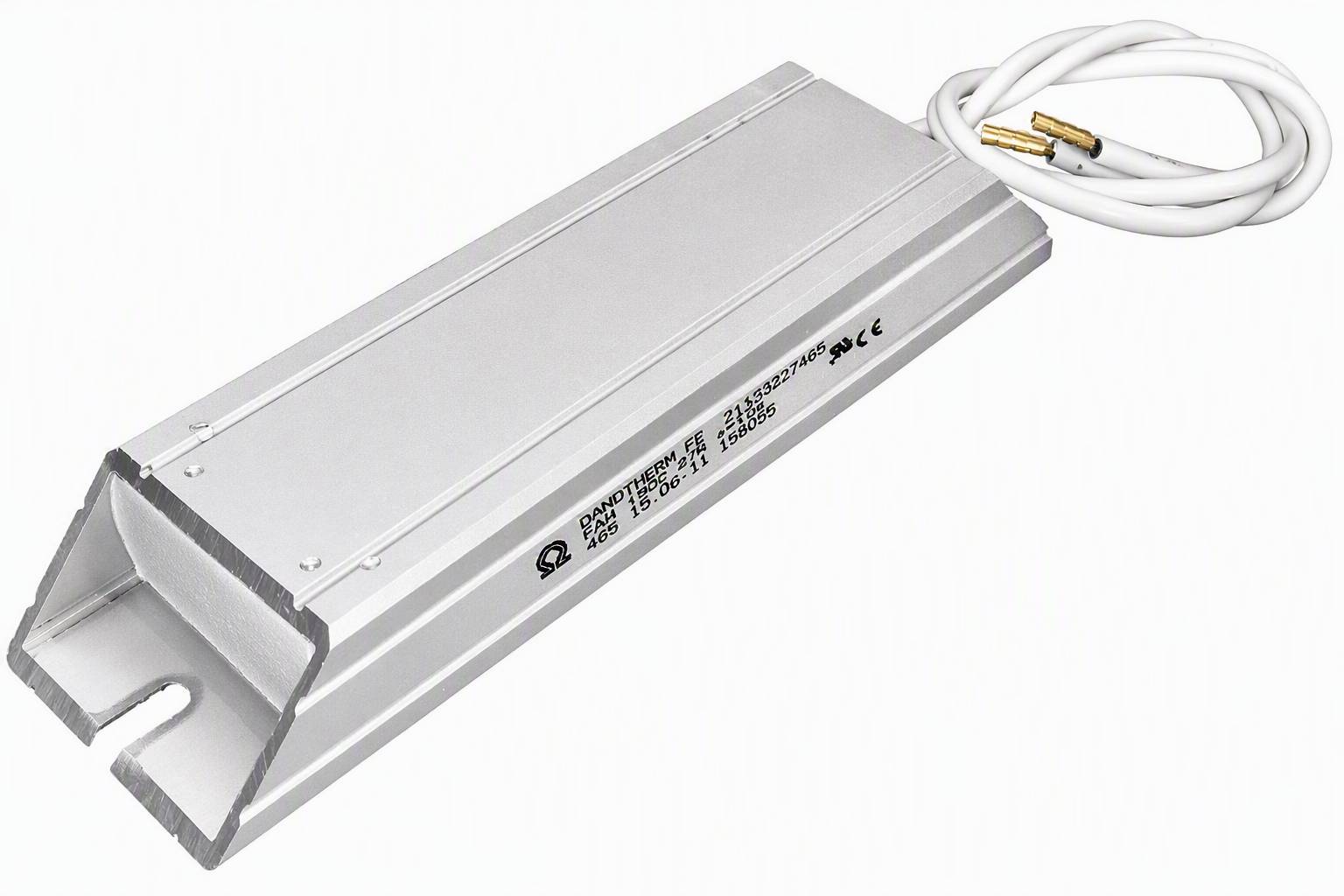

Danotherm CAH 150C 27R 90W is an aluminum-bodied power resistor particularly suited as a brake resistor for frequency converters, a discharge resistor, and for load and current-limiting applications in power electronics. The durable aluminum enclosure ensures efficient heat dissipation and long service life in demanding industrial environments.

• Resistance value: 27 Ω
• Rated power: 90 W
• Power class @ 40 °C: 100 W
• Construction: Aluminum-cased power resistor
• Dimensions: 150 × 40 × 20 mm
• Lead length: 300 mm
• Weight: 186 g
• Manufacturer: Danotherm

Suitable as a charge and discharge resistor for DC bus applications, as a brake resistor for frequency converters, and for other high-power resistor applications.

Pulse load / environment at 40 °C:

• 2,42kW 1s every 120s
• 820W 5s every 120s
• 600W 10s every 120s
• 255W 40s every 120s
