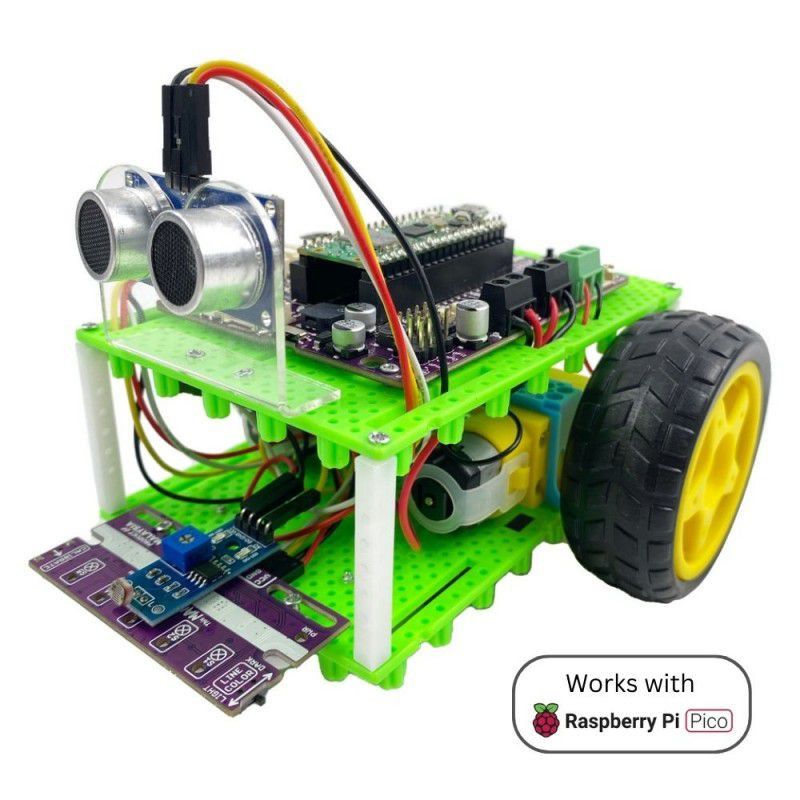

• Based on Raspberry Pi Pico W and Robo Pico expansion board
• Suitable for makers, hobbyists, secondary and tertiary level of education, who want to start learning Raspberry Pi and robotics
• 5-in-1 Robot:
  • Basic Movement
  • Obstacle Avoidance
  • Light Searching
  • Line Following
  • WiFi Controlled
• Complete guidance provided, covering installation setup and example codes for each project

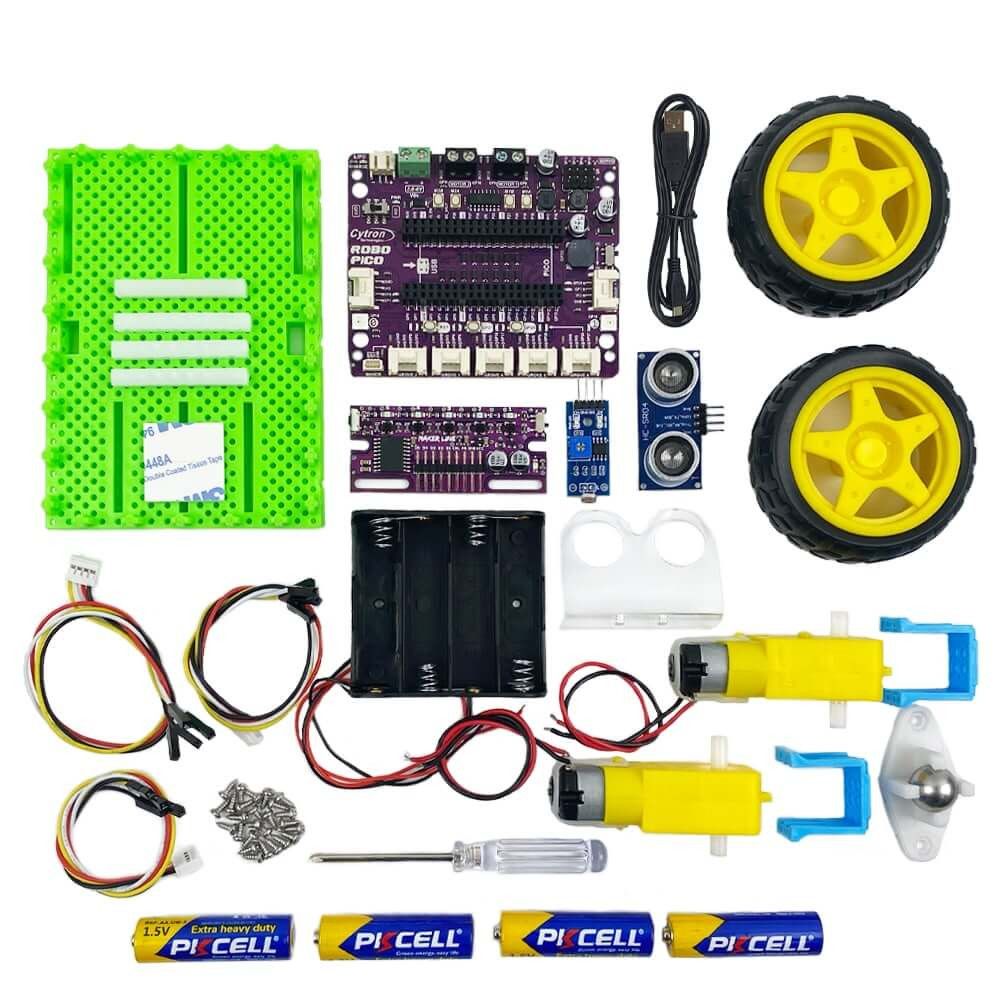

• Durable and lightweight plastic chassis
• Robo Pico offers additional features for implementing other custom projects

Robo Pico Specifications

• Compatible with Raspberry Pi Pico and Raspberry Pi Pico W
• Versatile power circuit
  • Automatic power selection: USB 5V, LiPo (1-cell) or Vin (3.6-6V)
  • Built-in 1-cell LiPo/Li-Ion charger (over-charged & over-discharged protection)
  • Power on/off switch with status LED
• GPIO Breakout for Raspberry Pi Pico/Pico W
• 1 x Reset Button
• 7 x Grove Ports (flexible I/O options: digital, analog, I2C, SPI, UART)
• 1 x Maker Port (JST-SH 4-Ways Connector)
• 13 x Status indicator LEDs for GPIO pins
• 2 x RGB LED (Neopixel)
• 2 x Programmable Button
• 1 x Piezo Buzzer with Buzzer Mute Switch
• 2 x DC Motor Terminals
  • 2 x Motor Status LEDs for each Motor Terminal
  • 2 x Motor Test Buttons for each Motor Terminal
• Mounting holes
  • 4 x 4.8mm mounting hole
  • 4 x M3 screw hole
