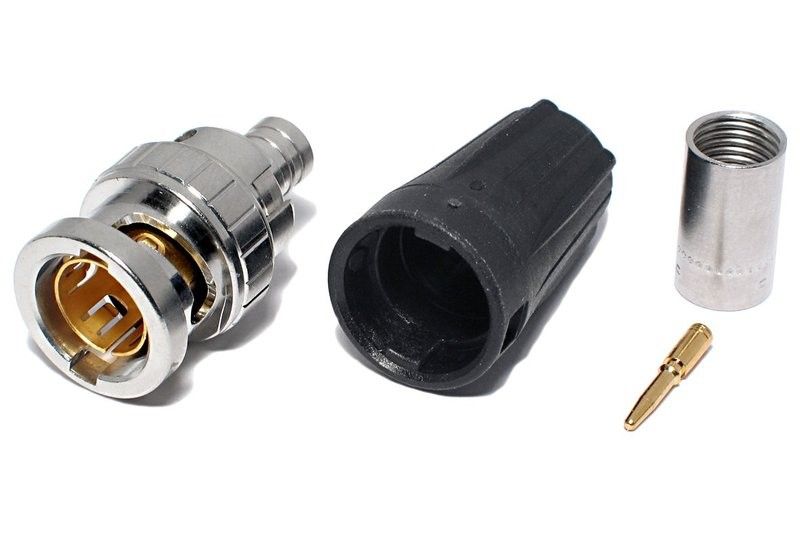

BNC CONNECTOR MALE CRIMP RG59

Name: BNC CONNECTOR MALE CRIMP RG59
Brand: Neutrik
SKU: BNC-UP-RG59-NTR
Price: 6.66 EUR
Availability: InStock

In stock 26 pcs

SKU#: BNC-UP-RG59-NTR

In stock 26 pcs

SKU#: BNC-UP-RG59-NTR

RearTwist® Principle
suitable for Ø 6,3 mm cables (outer diameter)
nominal impedance: 75ohm
insulation material: Teflon PTFE
crimp tool: 1,6 mm center pin / 6,47 mm sleeve
cable stripping dimensions for connector (total 16 mm):
- center conductor: 4 mm
- insulation: 5 mm
- braid/shield: 7 mm
see suitable crimping pliers below

Quantity discount

Quantity (kpl)		Price
10+	undefined%	6,07 €

6,66 €

In stock

Add a comment about the product

Product Description

RearTwist® Principle
suitable for Ø 6,3 mm cables (outer diameter)
nominal impedance: 75ohm
insulation material: Teflon PTFE
crimp tool: 1,6 mm center pin / 6,47 mm sleeve
cable stripping dimensions for connector (total 16 mm):
- center conductor: 4 mm
- insulation: 5 mm
- braid/shield: 7 mm
see suitable crimping pliers below

Availability In stock
Manufacturer Neutrik
Product path Home Connectors RF Connectors BNC Connectors BNC CONNECTOR MALE CRIMP RG59
SKU BNC-UP-RG59-NTR
Attributes
- Classification RG59 (75ohm)
- Connector-A BNC
- Gender uros
- Connector type Johtoliitin, puristettava
- Manufacturer's model NBNC75BLP7
- Click for more details http://www.neutrik.com/us/en/video/210_48861/NBNC75BLP7_detail.aspx
