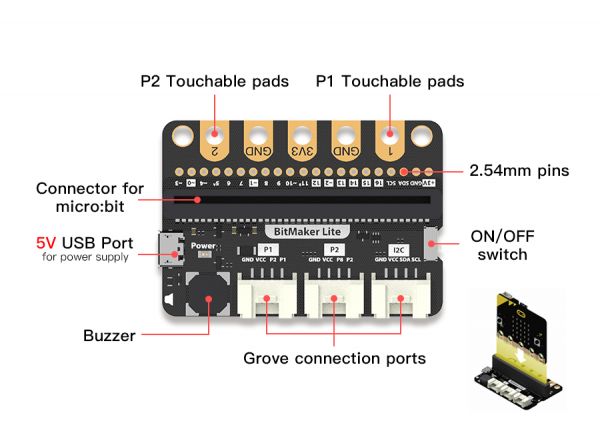

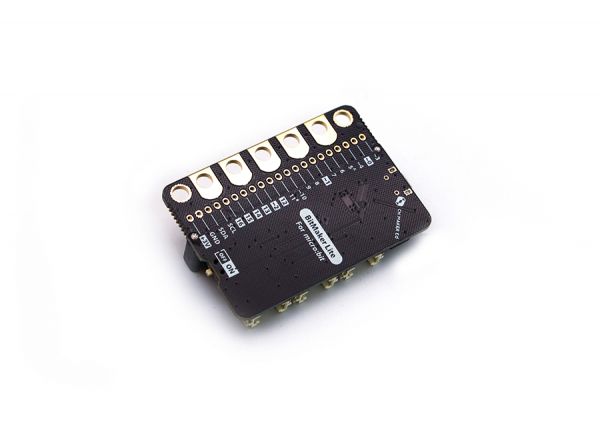

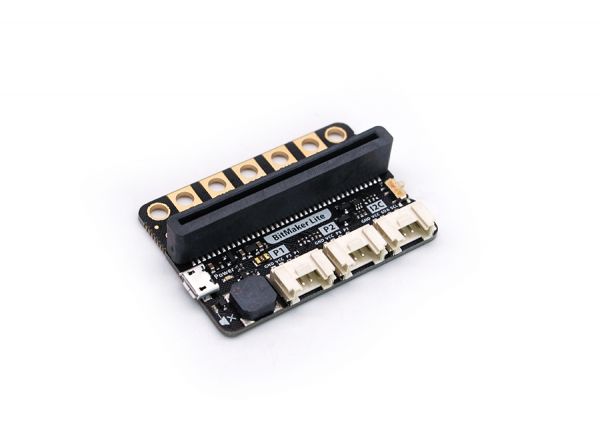

The BitMaker Lite is essentially a micro:bit shield, which breaks out the micro:bit connections and makes it easy for you to interface with other devices through the broken out pins, Grove ports for additional Grove sensors, as well an onboard buzzer.

BitMaker Lite is a simplified version of the BitMaker and is primarily designed for users who are beginning to learn and use the micro:bit. You can easily slide the micro:bit into the BitMaker Lite. The included buzzer, means the BitMaker Lite enables a lot of interesting audio projects, e.g. a fruit piano (to implement the fruit piano you will also need alligator clips).

It has 3 connection ports for Grove modules, allowing beginners to explore many different micro:bit's projects with diverse functions.

This product is suitable for:

• Maker teachers
• DIY hobbyists
• upper-primary/lower-high school students
• micro:bit users
• homeschooling educators

Feature

• Plug and play
• Three Grove interface ports (1 of which is I2C)
• Built in buzzer
• Compact design
• Keeps touch pins of micro:bit accessible
• Provides micro:bit expansion component holes
• Microsoft MakeCode Compatible ~ A Powerful Programming Platform
• MakeCode is a widely-used graphical programming software which allows you to program the micro:bit. You can easily use it through a web browser.
• Professional and Detailed accompanying course materials

Specifications

Part List

• 1x BitMaker Lite
• 1x User Guide

Links

• Help Documentation
• Sample Code Files
• Wiki - BitMaker Lite

Video
