BISTABLE PCB RELAY SPDT 16A 24VDC

Temporarily out of stock

SKU#: FI406160240000

BISTABLE PCB RELAY SPDT 16A 24VDC

BISTABLE PCB RELAY SPDT 16A 24VDC

BISTABLE PCB RELAY SPDT 16A 24VDC

Temporarily out of stock

SKU#: FI406160240000

Finder 40.61.6.024.0000

5,97 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

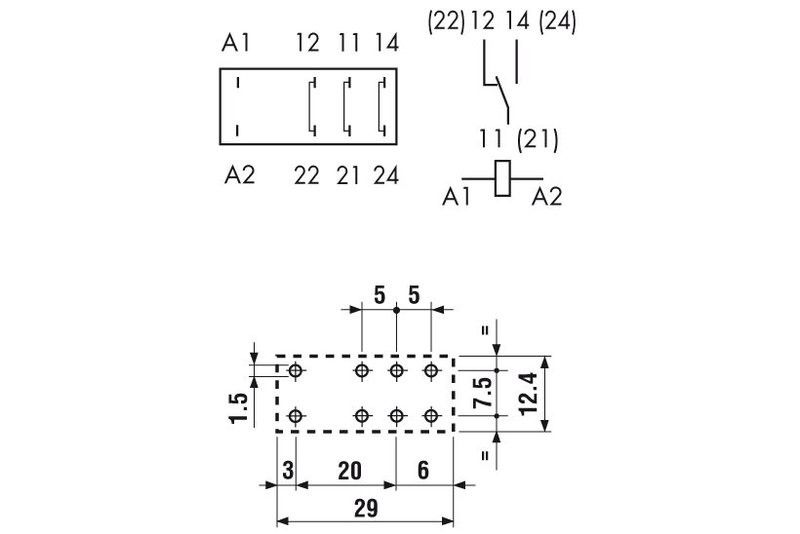

raster 5,0 mm
coil 24VDC 520Ω
"remembers" the state using a small auxiliary magnet

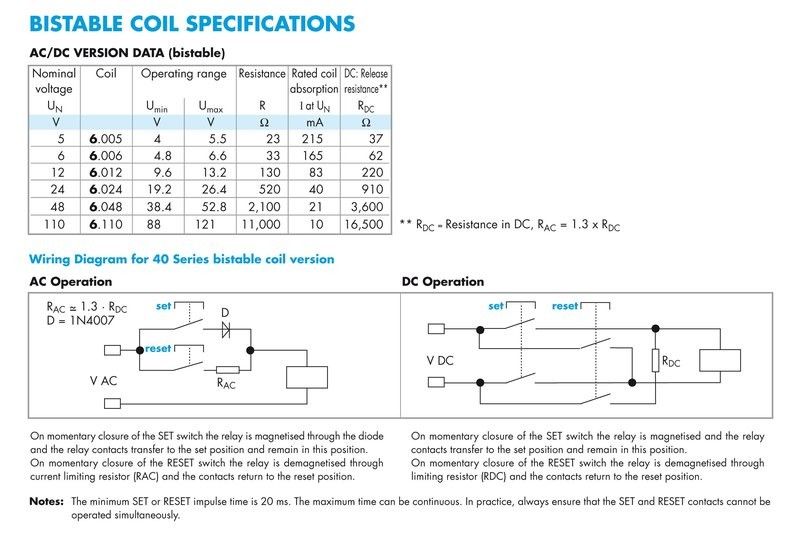

RESET, i.e. state reset, is performed with a reverse SET, that is with a current smaller than the set current (implemented in the circuit using a resistor)
Minimum S/R pulse time 20 ms
- circuit R_AC = 1183Ω / R_DC = 520Ω

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Finder
Product path Home Components Electromechanical Components Relays State memory relays BISTABLE PCB RELAY SPDT 16A 24VDC
SKU FI406160240000
Attributes
- Power Class 16A
- Control voltage 24V
- Product family Finder 40
- Manufacturer's model 40.61.6.024.0000
- Click for more details https://www.findernet.com/en/worldwide/series/40-series-miniature-pcb-relays-8-10-12-16a/type/type-4061-pcb-plug-in-relay-16a/

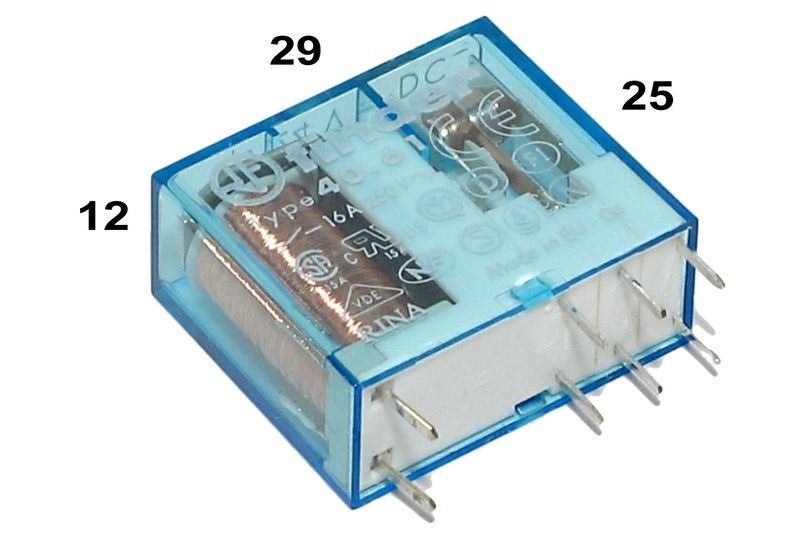

- Dimensions 12 x 25 x 29 mm
