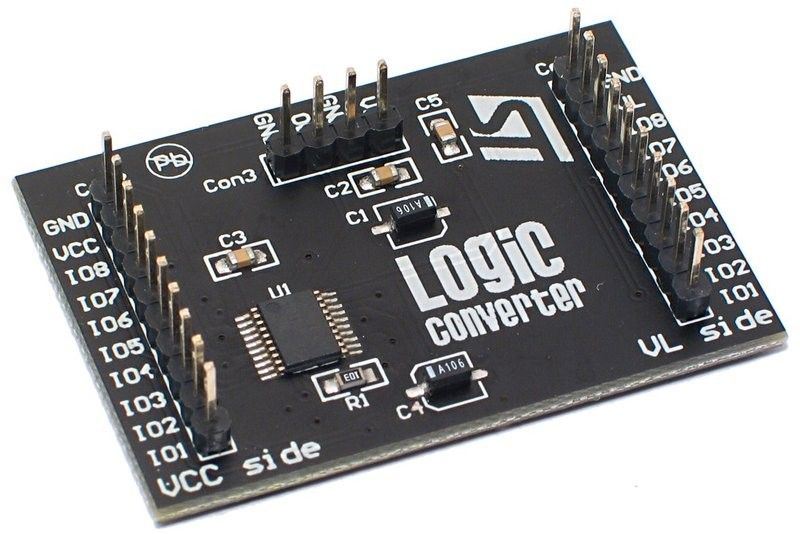

BIDIRECTIONAL VOLTAGE LEVEL TRANSLATOR FOR PROTOTYPING
In stock under 5 pcs
SKU#: LLC-8CH
BIDIRECTIONAL VOLTAGE LEVEL TRANSLATOR FOR PROTOTYPING
In stock under 5 pcs
SKU#: LLC-8CH
- operation is based on the ST2378E IC
- 8-bit bus in and out
- The voltage on the VCC side must be higher than on the VL side
- voltage range 1,71...5,5VDC
- circuit speed max. 13Mbps
- totem-pole and open-drain output for I2C bus
- The OE pin can put both sides into HiZ state
- 15kV ESD protection
15,98 €
In stock
Product Description
Product Information
- Availability In stock
- Product path Home ComponentsActive IngredientsLogic Level Converters BIDIRECTIONAL VOLTAGE LEVEL TRANSLATOR FOR PROTOTYPING
- SKU LLC-8CH
- Attributes
- Dimensions 48.5 x 34 mm
