BISTABLE PCB RELAY SPDT 16A 12VDC

Temporarily out of stock

SKU#: FI406160120000

BISTABLE PCB RELAY SPDT 16A 12VDC

BISTABLE PCB RELAY SPDT 16A 12VDC

BISTABLE PCB RELAY SPDT 16A 12VDC

Temporarily out of stock

SKU#: FI406160120000

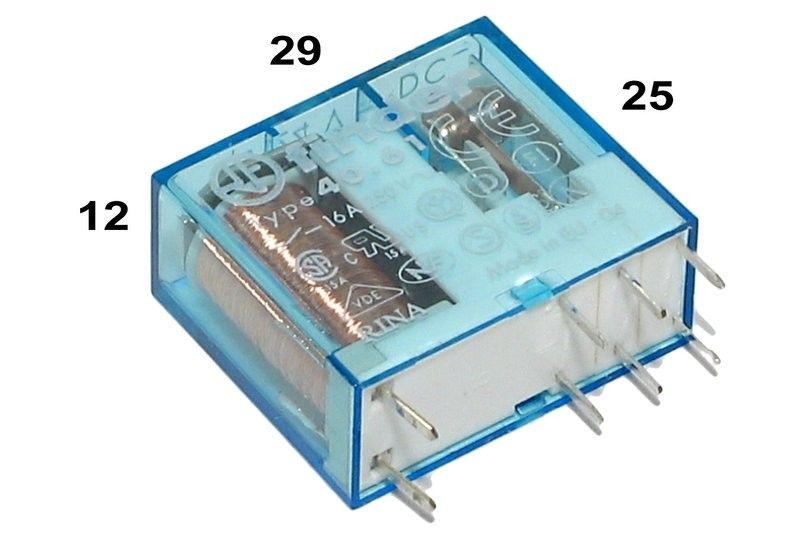

Finder 40.61.6.012.0000

16,20 €

Made to order, delivery time usually 7-14 days

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

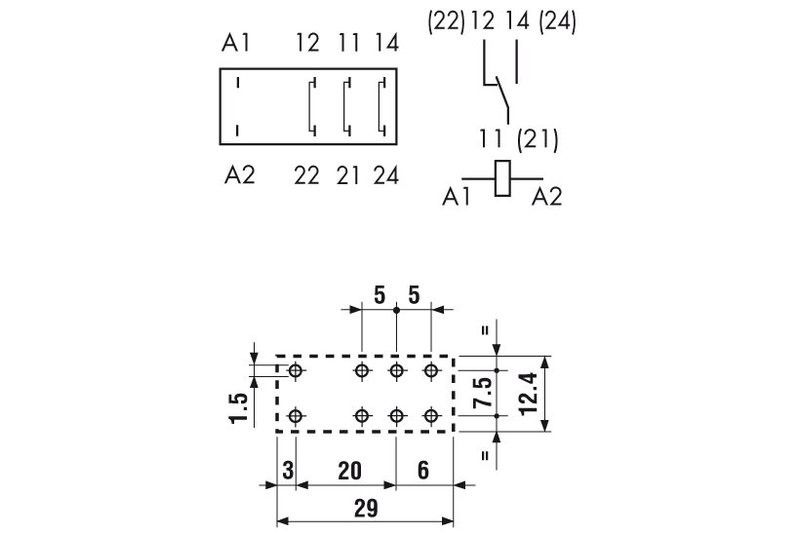

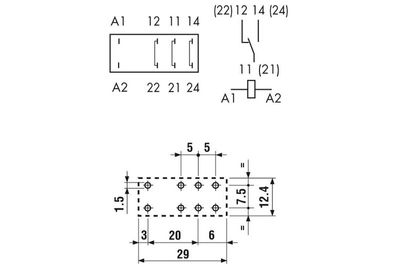

pitch 5,0 mm
coil 12VDC 130Ω
"remembers" state with a small auxiliary magnet
RESET (state reset) is performed by a reverse SET, i.e. with a current smaller than the SET current (implemented in the circuit using a resistor)
minimum S/R pulse duration 20 ms
circuit R_AC = 286Ω / R_DC = 220Ω

Product Information

Availability Made to order, delivery time usually 7-14 days
Manufacturer Finder
Product path Home Components Electromechanical Components Relays State memory relays BISTABLE PCB RELAY SPDT 16A 12VDC
SKU FI406160120000
Attributes
- Power Class 16A
- Control voltage 12V
- Product family Finder 40
- Manufacturer's model 40.61.6.012.0000
- Click for more details https://www.findernet.com/en/worldwide/series/40-series-miniature-pcb-relays-8-10-12-16a/type/type-4061-pcb-plug-in-relay-16a/
- Delivery time 6-12 weeks
