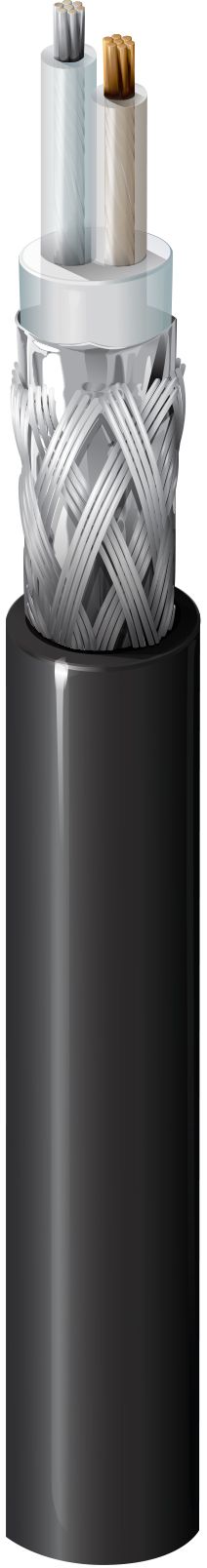

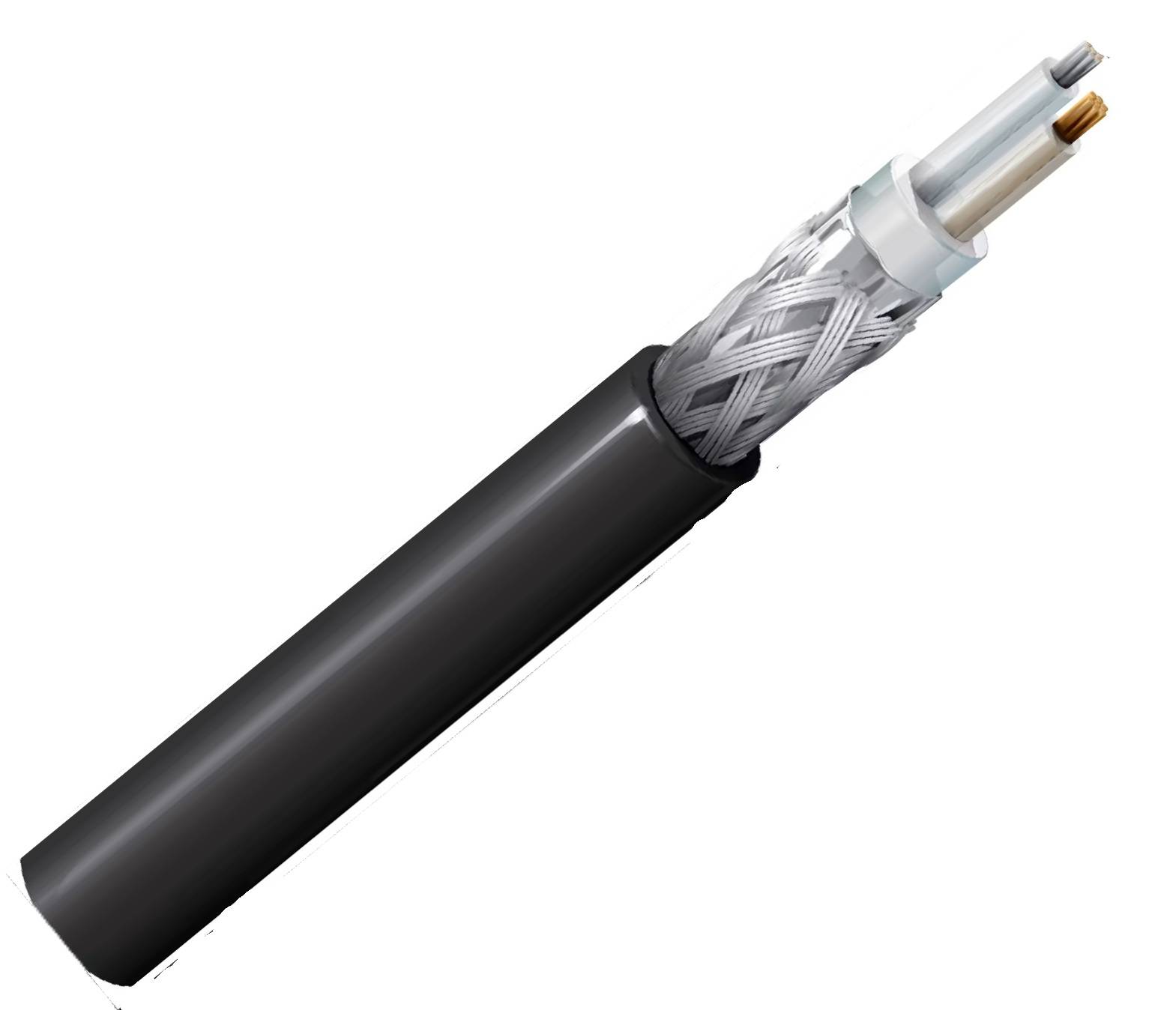

Belden 9207NH Armoured Data Cable

Overview: Belden 9207NH is a high-quality armoured data cable designed for reliable data transmission in demanding environments. It is equipped with a low smoke, halogen-free (LSZH) outer jacket, making it suitable for indoor locations where fire safety is important.

Key features:

• Conductors: 20 AWG stranded (7x28) one tinned copper conductor and one bare copper conductor.
• Insulation: Polyethylene insulation for each conductor.
• Shielding: Duofoil® (100% coverage) and tinned copper braid (85% coverage) for excellent interference resistance.
• Jacket: LSZH outer jacket, flame-retardant according to IEC 60332-3C standards.
• Impedance: Nominal characteristic impedance 100 ohms.
• Capacitance: Nominal capacitance 47.6 pF/m (conductor to conductor) and 75.5 pF/m (conductor to shield).
• Temperature range: Operating temperature -45°C - +80°C (fixed installation) and -15°C - +80°C (flexible installation).
• Voltage rating: 300 V.

Applications:

• Ideal for twinaxial instrumentation and computer cabling applications.
• Suitable for high-speed data transmission in data centers, enterprise networks and industrial automation systems.

Physical characteristics:

• Outer diameter: 8.6 mm.
• Minimum bending radius: 86 mm during installation.
• Color: black

Compliance:

• Meets IEC 60332-1-2 and IEC 60332-3-24 flame retardancy standards.
• Halogen-free according to IEC 60754-1 and IEC 60754-2 standards.
