Features

• easier prototyping with micro:bit
• many kinds of power sources possible
• simple electronic circuits are easy to keep intact
• clear markings for the pins

Specifications

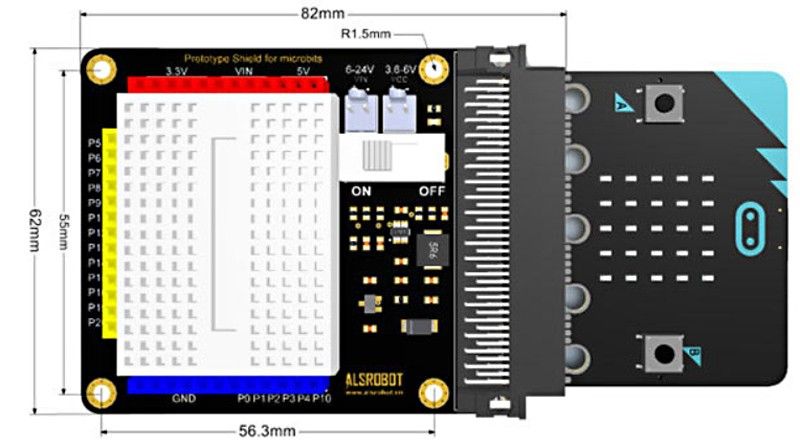

• board size: 62 x 82 mm
• ON/OFF switch and indicator LED
• power input: two red pin header connectors for different ranges or micro:bit microUSB
• input voltages: 6-24V (VIN) or 3,6-6V (VCC)
• digital pins: P0-P20
• analog pins: P0, P1, P2, P3, P10

Notes

• if VIN input is used (6-24V), the red pin header provides VIN, 3,3V and 5V voltages
• if VCC input is used (3,6-6V), the red pin header provides only 3,3V voltage
• if the board is powered via micro:bit, the red pin header VIN and 5V are unpowered, but the 3,3V marked pins provide voltage

Delivery

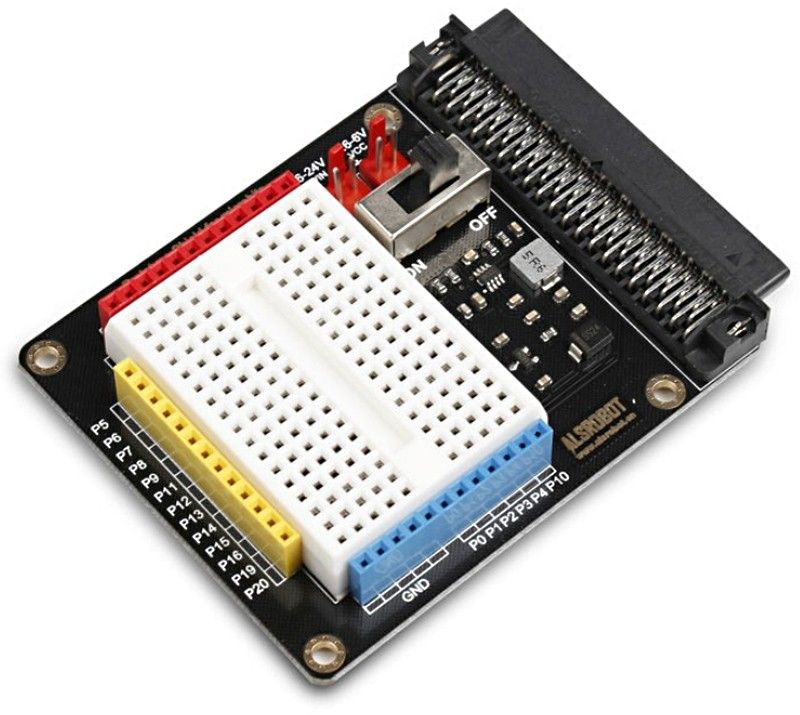

• Prototype shield for micro:bit board
• small breadboard 46 x 35 mm
