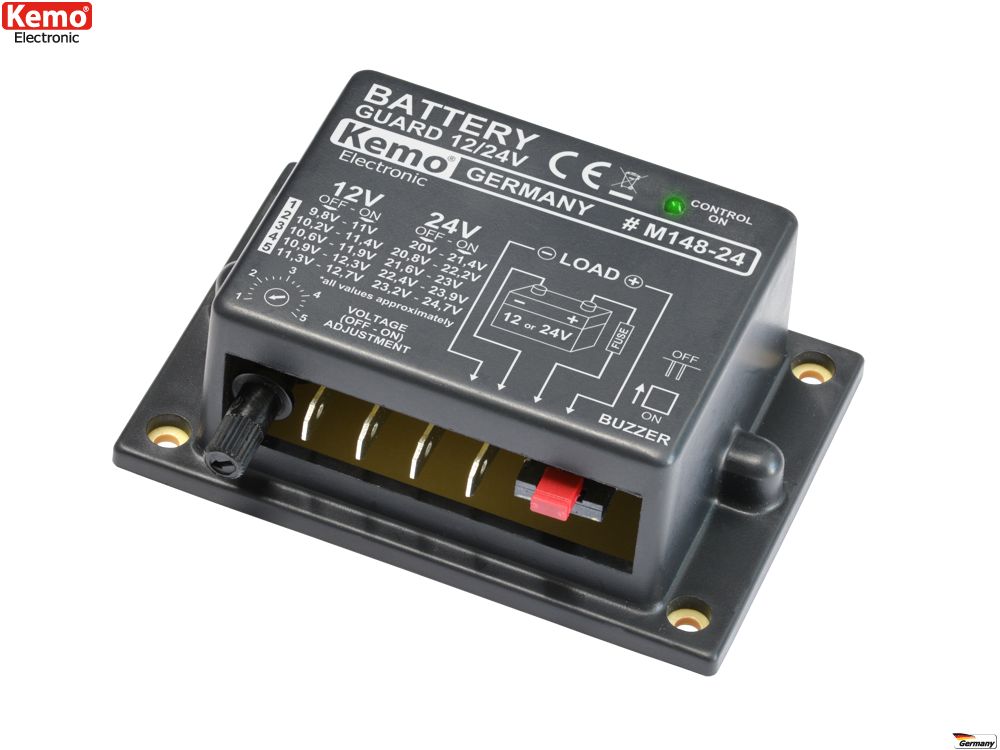

Kemo M148-24 - protects the lead-acid battery from over-discharge caused by auxiliary devices. This model is suitable for 12V and 24V systems.

58,29 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Protect the car battery from complete discharge by disconnecting in time the accessories that load it, such as the cooler box, heater, charger, etc. When the car battery voltage returns to normal, power can be supplied to the devices again.

Features

Automatically detects the electrical system voltage 12V or 24V.
An indicator LED shows operation.
The threshold is adjusted by turning the trimmer.
Buzzer alarm that can be enabled with a jumper.
Connects between the battery and the devices to be powered.
Connections with 6.3mm spade terminals.

Technical specifications

Operating voltage	battery voltage 12 V or 24 V (automatically detected)
Max. switching current	40 A maximum for 10 seconds or 20 A continuous current (only in a well-ventilated location)
Cut-off voltage	adjustable approx. 9.8 - 11.3 V with 12 V / approx. 20 - 23.2 V with 24 V (acoustic signal before switching off, may be deactivated).
Hysteresis point	approx. 1.2 – 1.6 V higher than the set voltage level
Implementation	power FET in the positive voltage line
Own current consumption	approx. <1.2 mA off, approx. <2.4 mA on (LED flashing)
Dimensions	approx. 87 x 60 x 33 mm

Installation instructions

Always use a fuse Kemo 148A-24 between the battery and the device; do not connect directly to the battery terminals.

Ensure sufficient cooling and clearance around the device.

Product Information

Availability In stock
Manufacturer Kemo Electronic
EAN 4024028031477
Product path Home Do It Yourself Building Kits Kemo ready-made modules BATTERY GUARD 12/24VDC
SKU KEMO-M148-24
Attributes
- Manufacturer's model M148-24
- Click for more details https://www.kemo-electronic.de/en/Car/Modules/M148-24-Battery-Guard-for-12-or-24-V-DC.php
- Dimensions 87 x 60 x 33 mm
