Kemo M188 - Monitoring device for the charge state, charging and discharging of 12V lead-acid batteries.

26,69 €

In stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

The battery monitor shows with three differently colored LEDs how the battery charge and discharge voltages are fluctuating. Suitable for 12V lead-acid batteries. The red LED indicates the battery voltage is too low, which may permanently damage the battery. The green LED indicates when the battery charging voltage is sufficiently high.

The battery monitor is designed for permanent installation. Low power consumption, only 4.9mA!

Technical specifications

Operating voltage	10.4 – 15.5 V/DC
Current consumption	Ø < 4.9 mA
Display	3 LEDs: Full (green), Low (yellow), Empty (red)
Measurement range	(tolerance: max. 5%)
- red	< 10.4 V
- yellow/red	10.5 – 10.8 V
- yellow	10.9 – 12.2 V
- yellow/green	12.3 – 12.6 V
- green	> 12.7 V

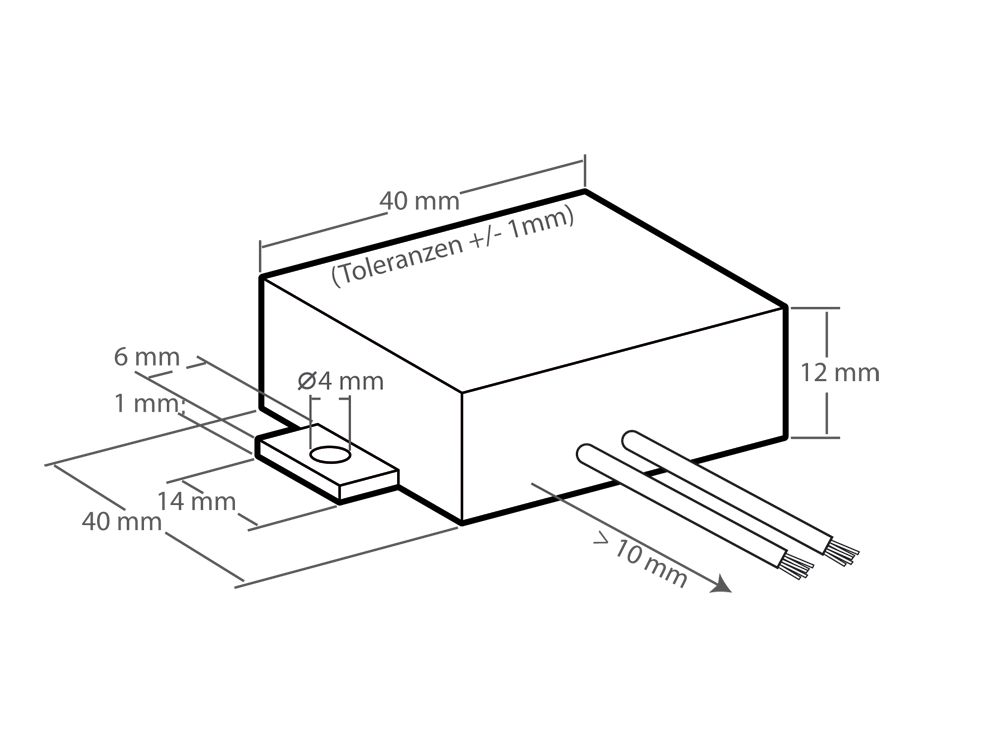

Dimensions	approx. 40 x 40 x 13 mm (without mounting ears)

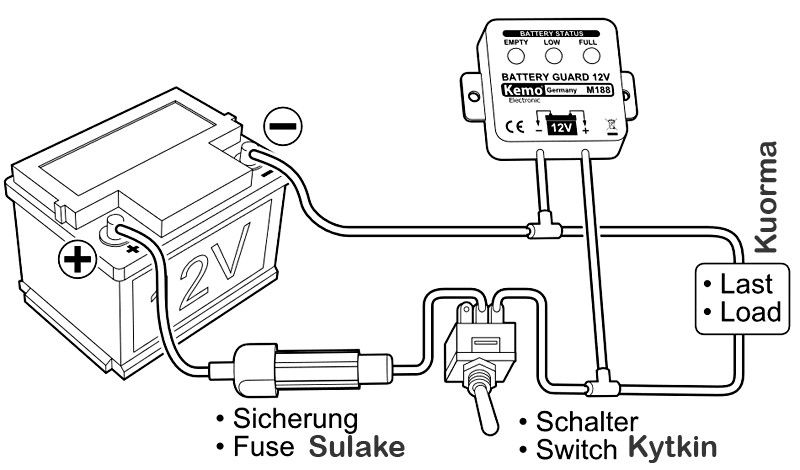

Short user guide

connect the red wire to the positive voltage
connect the black wire to the negative voltage
do not connect directly to the battery without a fuse

Product Information

Availability In stock
Manufacturer Kemo Electronic
EAN 4024028031880
Product path Home Do It Yourself Building Kits Kemo ready-made modules Battery Guard 12V
SKU KEMO-M188
Attributes
- Manufacturer's model M188
- Click for more details https://www.kemo-electronic.de/en/Car/Modules/M188-Battery-Guard-12-V.php
- Dimensions 40 x 40 x 13 mm
