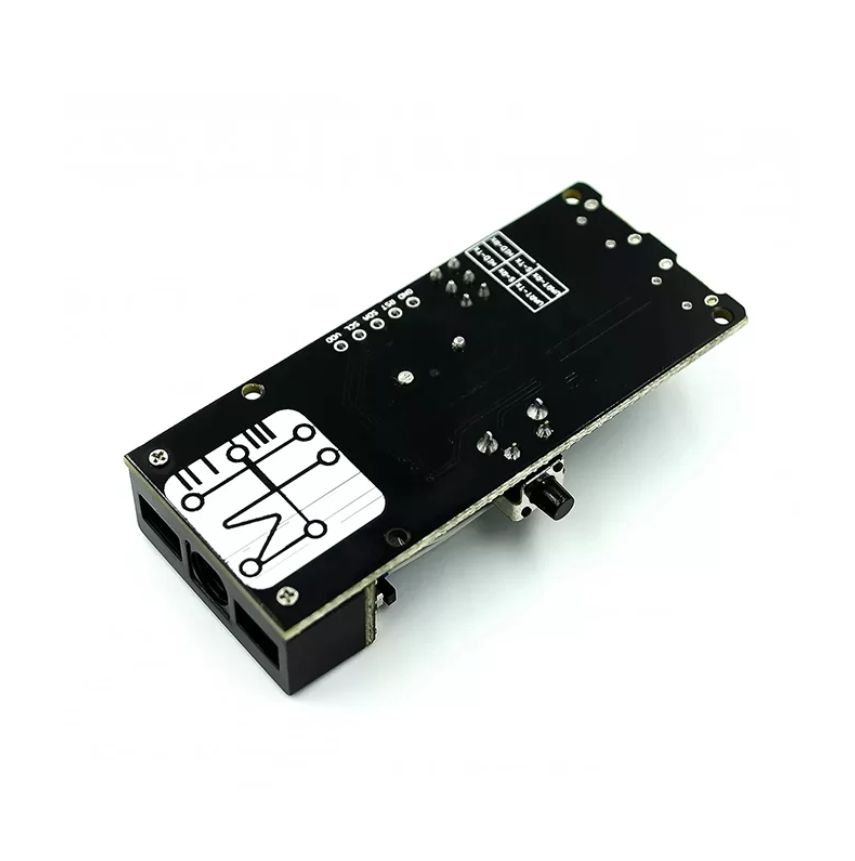

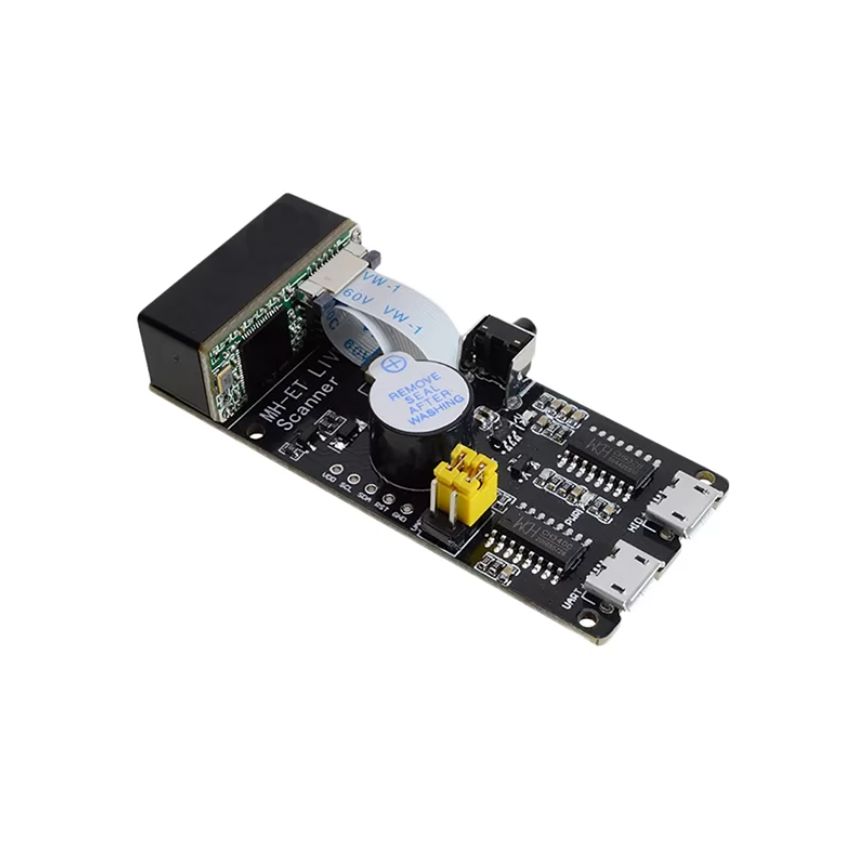

This Scanner v3.0 is a linear and QR code scanning module. It uses a professional image-processing chip for barcode recognition. Small size, built-in USB and UART interfaces, can be connected directly to a computer or integrated into various devices. The product has low power consumption and low heat generation. Fast startup, can be kept in standby.
Features
- Easy to use; no need to understand complex image-recognition algorithms.
- Supports reading common one-dimensional and two-dimensional codes, such as barcodes and QR codes.
- Built-in micro-USB and UART serial ports for connecting to a computer or an embedded device.
- Built-in light source for reading in completely dark environments.
- Support for setting module parameters by scanning a configuration code (see the specification for details).
- Configurable parameters include the following (read mode, baud rate setting, command mode, prompt sound output adjustment, output format, selective barcode configuration).
Barcode/QR code reading types:
Read barcode type (1D): UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat Read the QR code type (2D): QR Code, PDF417, Data Matrix
Package contents
- 1 x Bar Code Recognition Module
