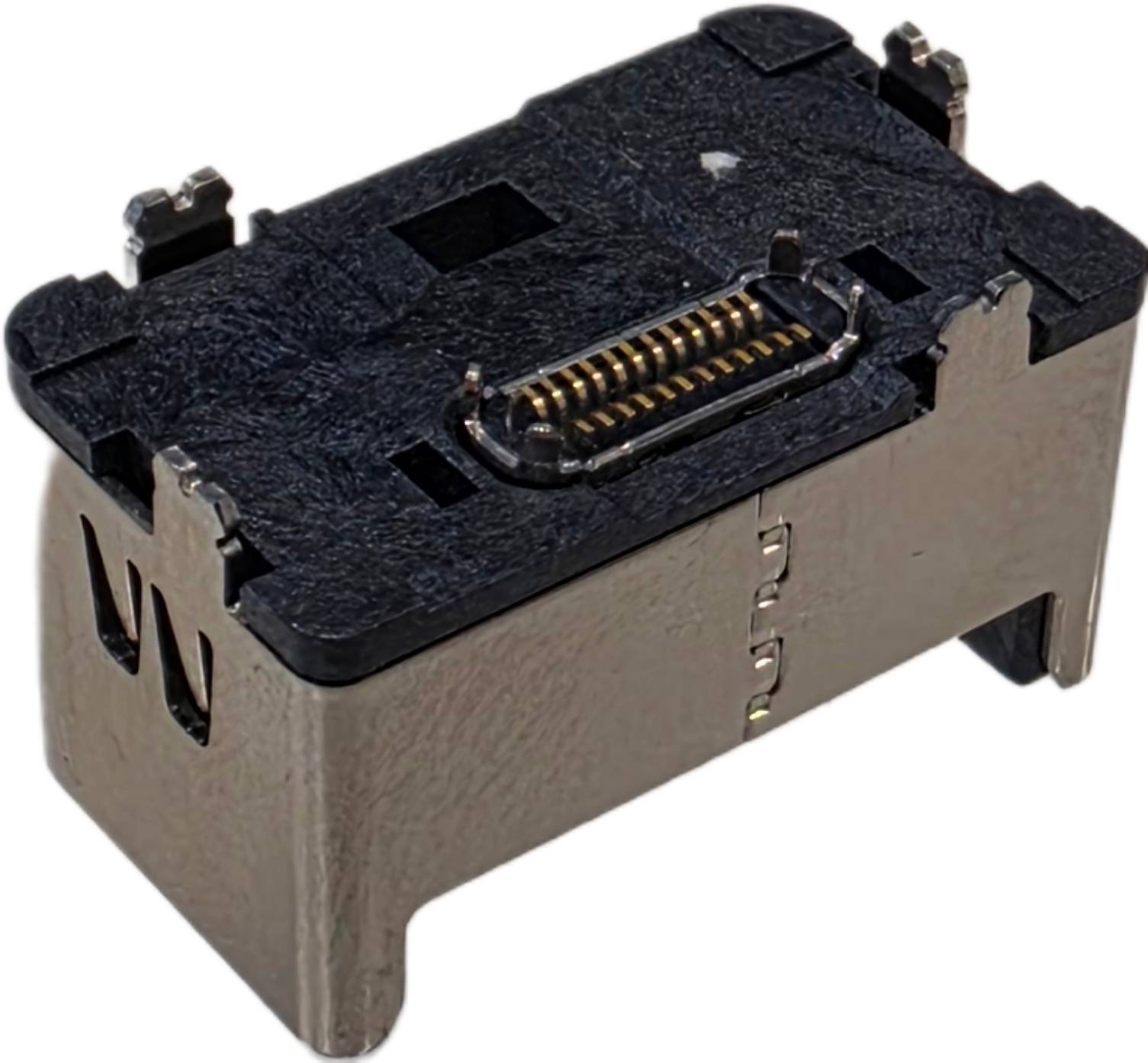

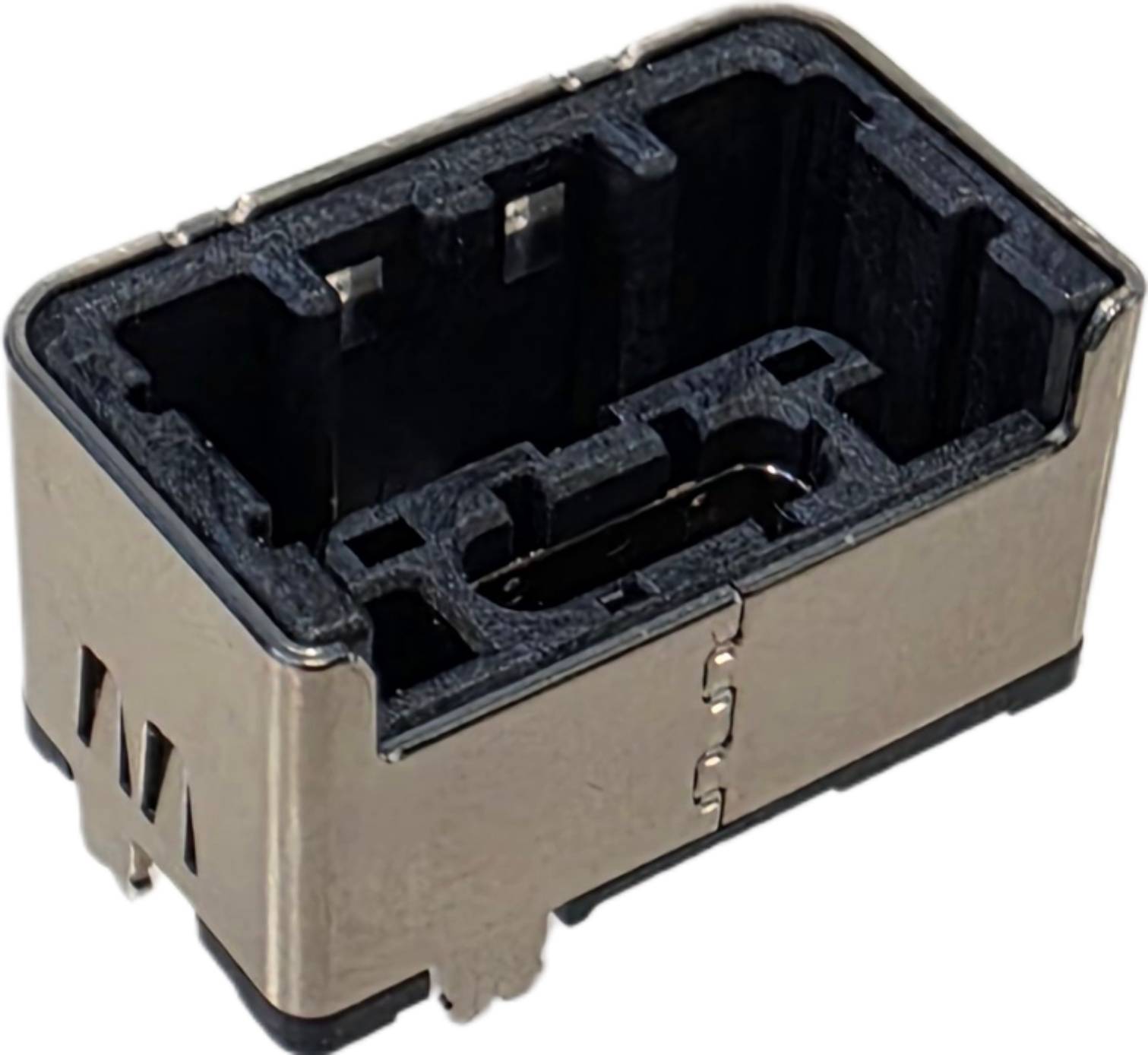

Hirose AU1FS-24P(805) - 24-pin SMT connector

The Hirose AU1FS-24P(805) is a compact, high-density surface-mount connector (SMT) from the AU1 series, designed for fast and reliable data transmission in demanding electronic applications. Its compact design makes the connector especially suitable for space-constrained devices that require high contact density and good mechanical durability.

Features

• 24-pin high-density connector
• Surface mount (SMT)
• Compact design for small electronic devices
• Metal-shielded housing improves EMC performance
• Mechanical latch ensures a reliable connection
• Suitable for high-speed signal transmission
• For industrial and electronic equipment use

Technical specifications

• Manufacturer: Hirose Electric
• Series: AU1
• Product number: AU1FS-24P(805)
• Connector type: Receptacle (socket)
• Number of pins: 24
• Mounting: SMT (Surface Mount Technology)
• Housing: Metal-shielded
• RoHS compliant

Applications

• Display and video transmission systems
• Industrial electronics
• Internal device cabling
• Telecommunication equipment
• Measurement and analysis instruments
• Embedded systems
