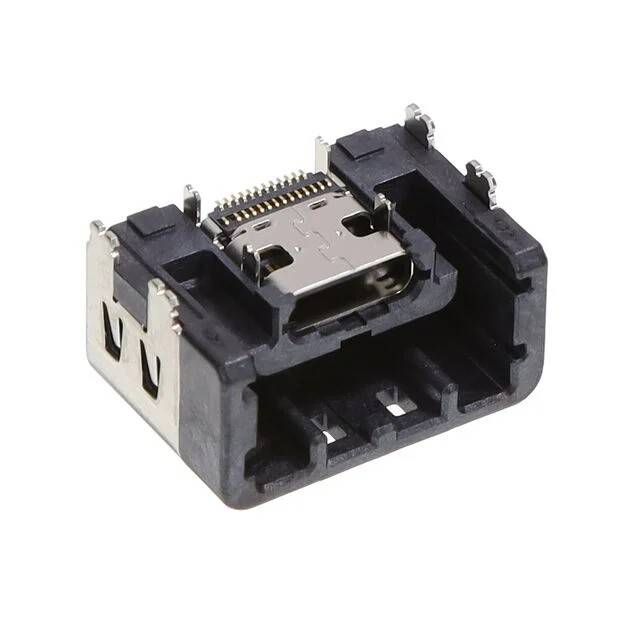

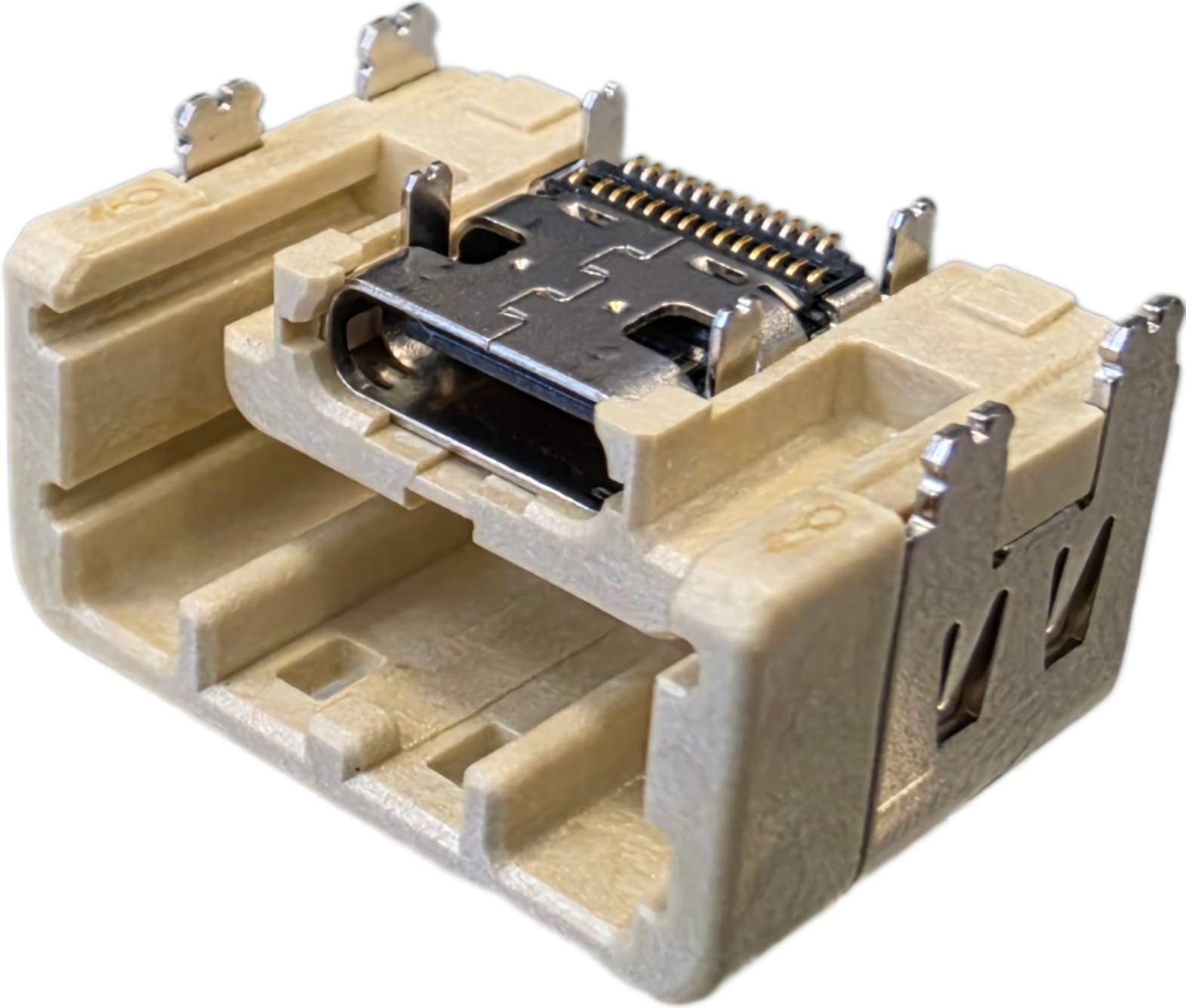

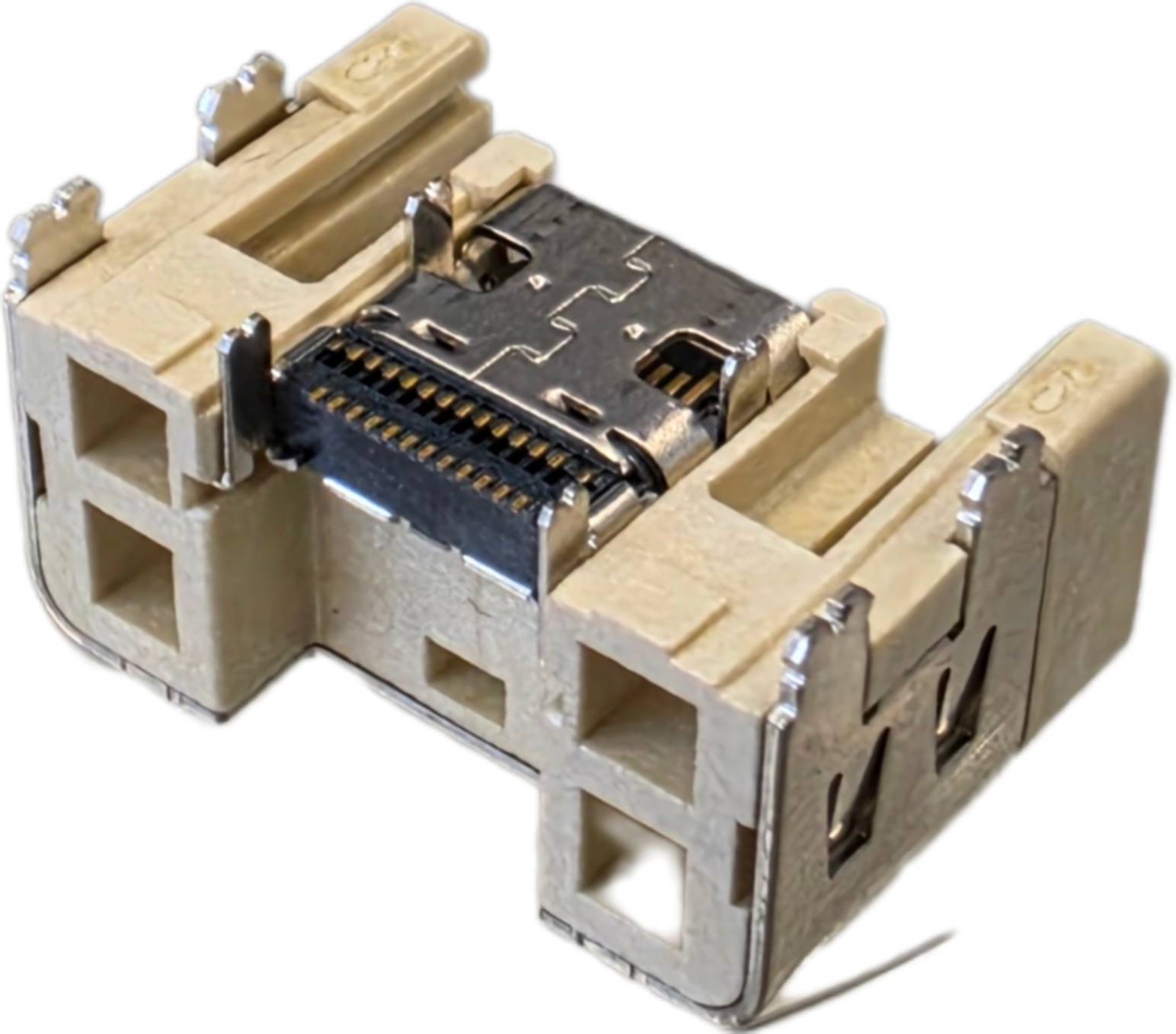

Hirose AU1FR-24P(805) A-Key USB Type-C connector, SMT

Hirose AU1FR-24P(805) is an AU1-series USB Type-C female connector for surface-mount assembly (SMT). The connector supports data transfer and power delivery according to the USB Type-C standard. The A-Key locking configuration allows compatibility only with the corresponding Hirose AU1-series mating A-Key counterpart.

Features

• USB Type-C female connector
• SMT surface-mount assembly
• 24 contacts
• A-Key locking configuration
• Compact and low-profile design
• Suitable for data and power interfaces
• Designed for industrial, embedded and electronic applications

Technical specifications

• Manufacturer: Hirose Electric
• Product series: AU1
• Manufacturer part number: AU1FR-24P(805)
• Connector type: USB Type-C, female
• Key code: A-Key
• Number of pins: 24
• Mounting type: SMT (Surface Mount Technology)
• Contact material: Copper alloy
• RoHS compliant: Yes

Note: AU1FR-24P(805) uses an A-Key locking configuration and is compatible only with the corresponding Hirose AU1-series A-Key mating counterpart. The connector is not a general-purpose USB-C connector and is not compatible with standard USB Type-C cables or connectors.
