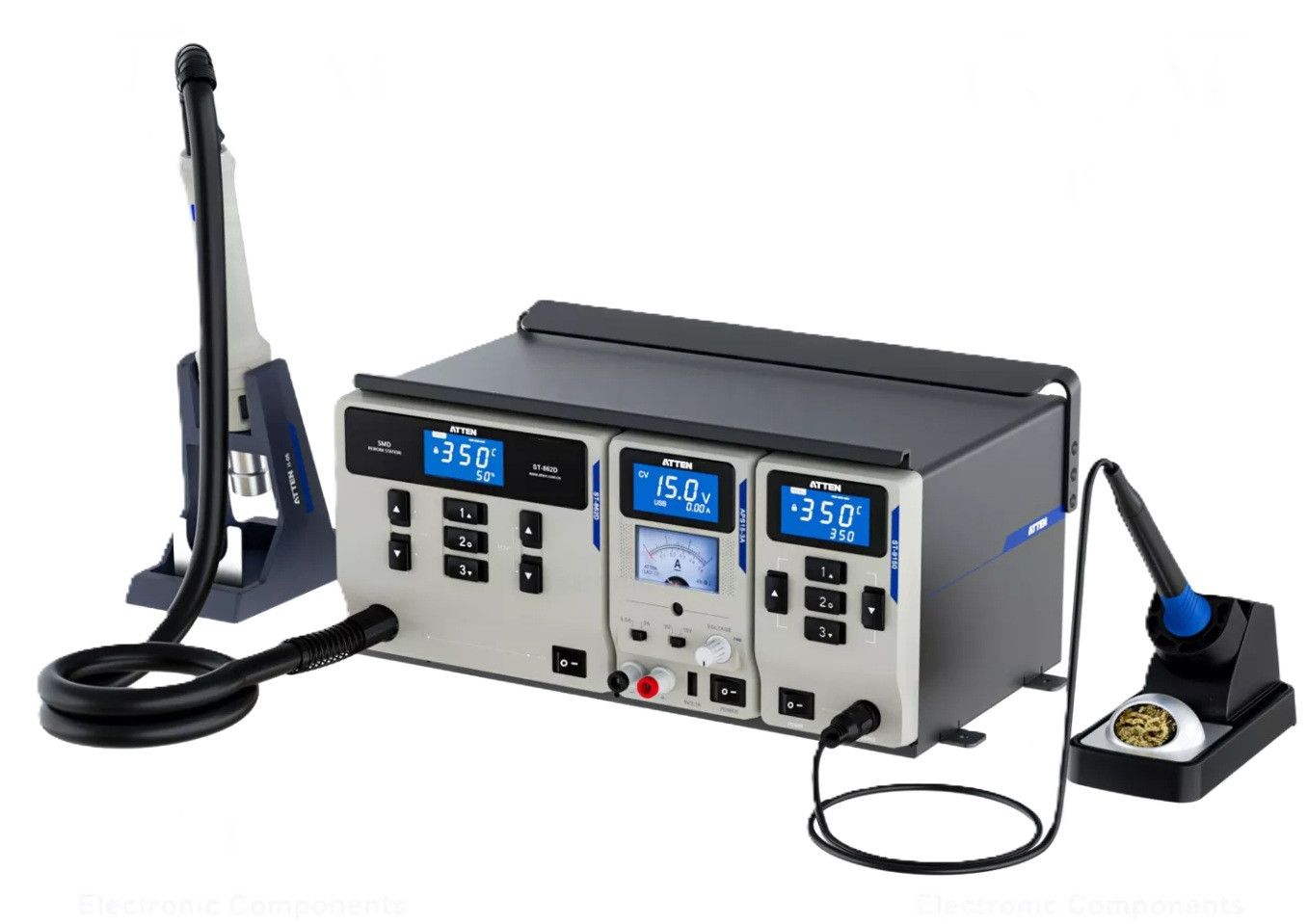

Atten MS-500 consists of three parts: 125W DC power supply APS22-5A, 1000W hot air station ST-862D + 150W soldering station ST-1509

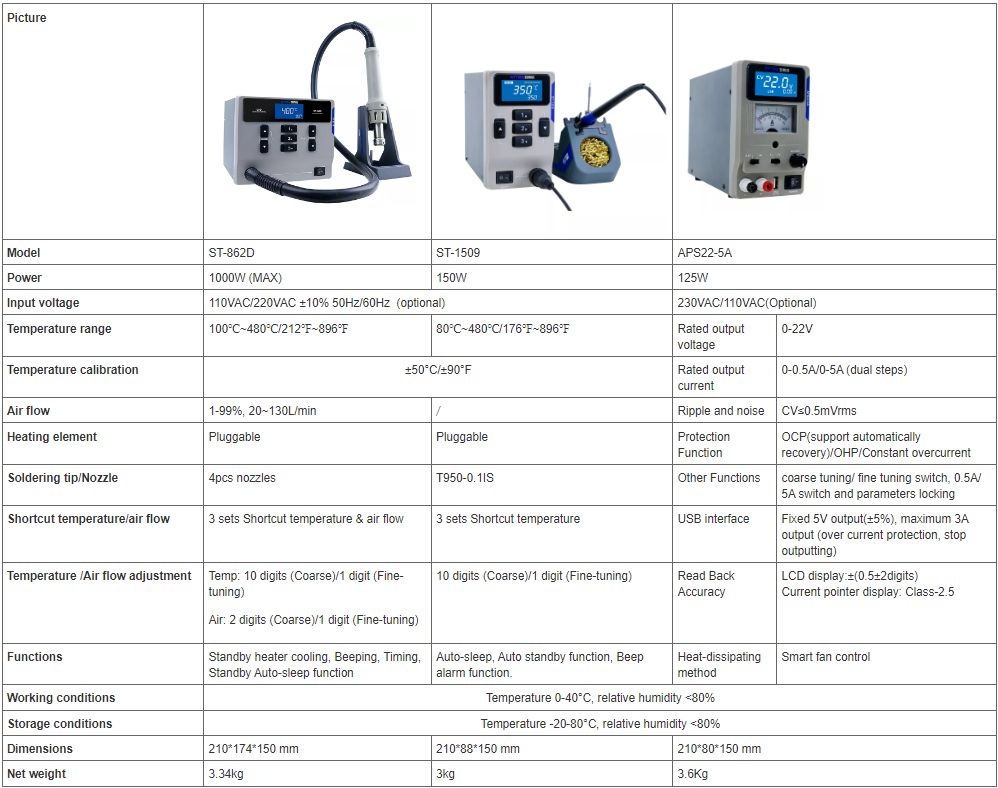

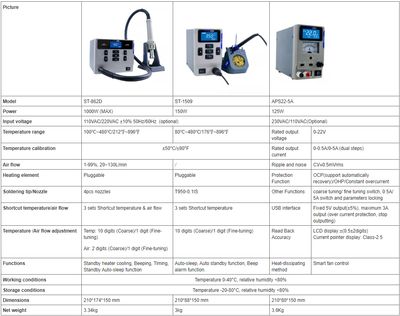

Product technical specifications

Soldering station (ATTEN ST-1509)

• Easy temperature setting
• Save or use frequently used temperature
• Temperature lock function
• ℃/℉ available and switchable
• Temperature calibration
• Automatic sleep function
• Automatically turn off heating function
• Beep notification function available
• Over/under temperature alarm function
• Password protection
• Fault alarm function

Specs:

• Power: 150W
• Temperature: 80 - 480°C
• Dimensions: 210 x 88 x 150mm
• Weight: 3kg

Hot air station (ATTEN ST-862D)

• Microcontroller-controlled air heating and airflow adjustment
• Clear digital display
• Temperature and airflow setting with one-digit precision
• Easy temperature setting and lock
• Three preset values for quick selection
• Timer function
• Auto-sleep standby
• On-screen error codes provide more details about possible faults

Specs:

• Power: 1000W
• Temperature: 100℃ - 480℃
• Airflow: 20 - 130L/min
• Dimensions: 210 x 174 x 150 mm
• Weight: 3,34kg

DC power supply (ATTEN APS22-5A)

Specs:

• Input voltage: 230VAC/115VAC (optional)
• Rated output voltage: 0-22V
• Rated output current: 0-0.5A/0-5A
• Rated output power: 125W (including USB output)
• Ripple and noise value: CV≦0.5mVrms (5Hz～1MHz)
• Line regulation: CV≦0.01%+3mV CC≦0.1%+3mA
• Load regulation: CV≦0.01%+4mV(I<3A)
• Setting accuracy: Voltage: 3mV, Current: 1mA
• Protection functions: OCP (supports auto recovery)/permanent overvoltage protection/OHP
• Other functions: coarse/fine tuning switch, 0.5A/5A switch and parameter lock
• USB interface: supports QC fast charge protocol, up to 3A output
• Readback accuracy: LCD display: ±(0.5±2digits), current indicator class 2.5
• Cooling method: intelligent fan control
• Operating environment: Temperature: 0～40℃, humidity: <80%
• Storage conditions: Temperature: -20~70℃, humidity: <80%
• Dimensions: 88 x 150 x 215mm
• Net weight: 3.6 kg
