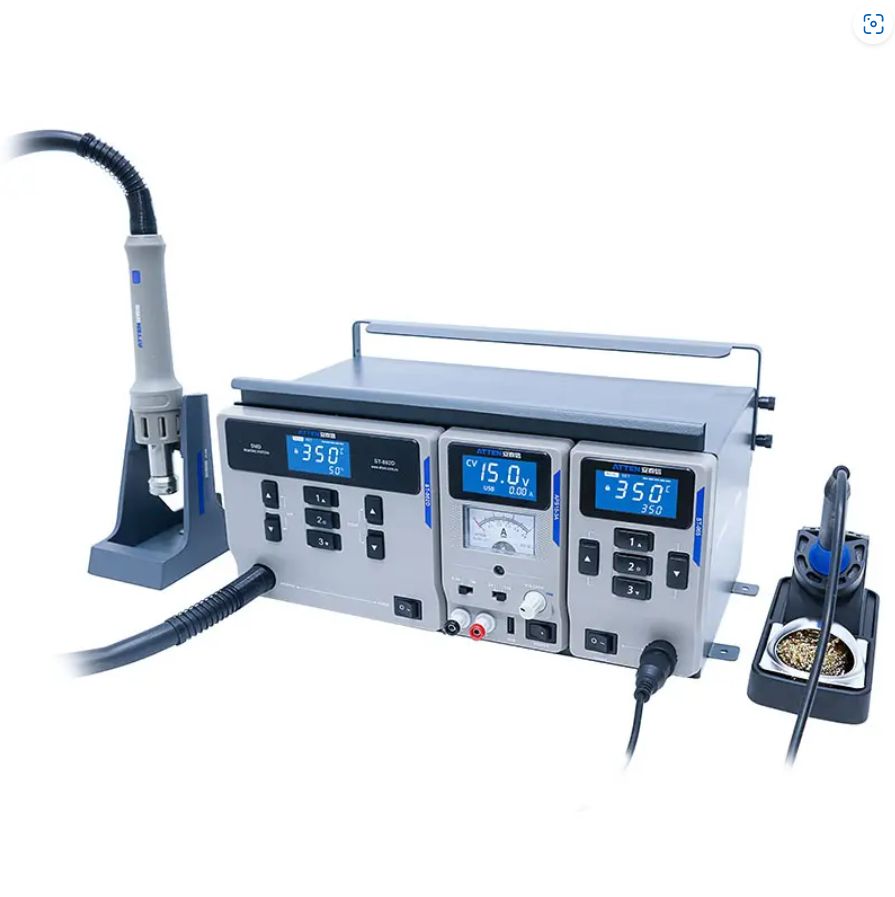

Atten MS-300 consists of three parts: 56W DC power supply APS1503 + 1000W hot air station ST-862D + 65W soldering station ST-965

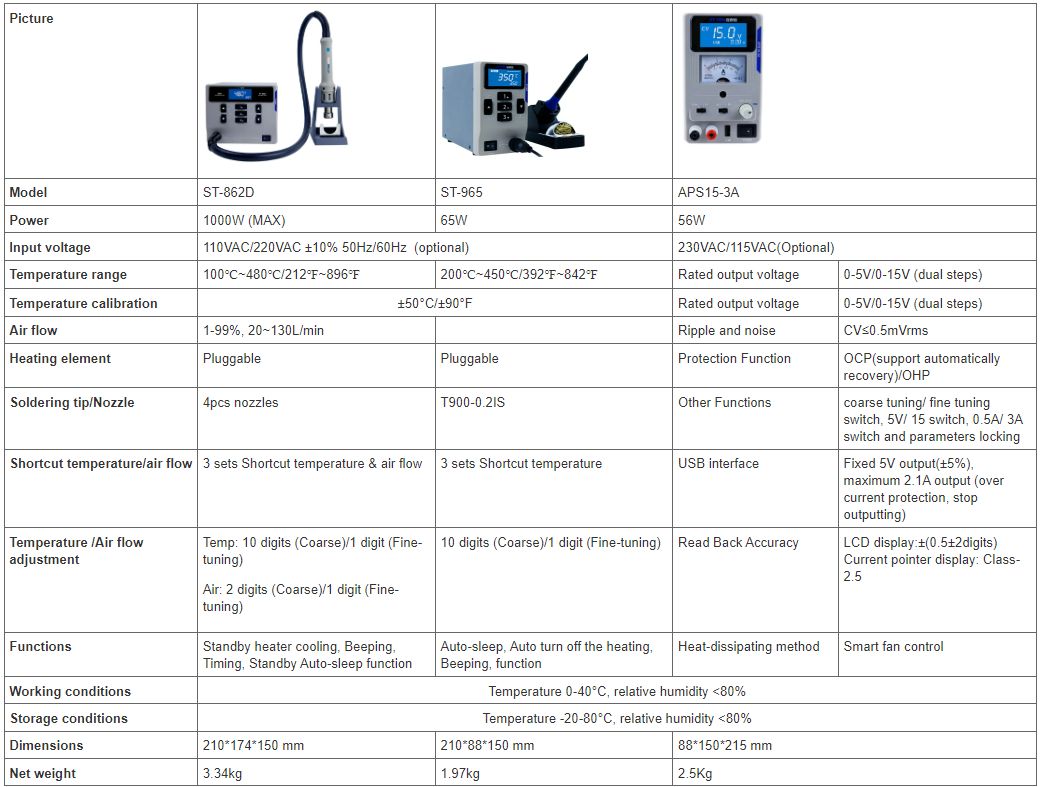

Product specifications

Soldering station (ATTEN ST-965)

• Temperature lock, temperature calibration and temperature alarm function
• MCU-controlled temperature calibration
• Ability to change the time before entering standby
• Automatically shuts off the heating function
• Auto-sleep standby mode
• Error code on the display gives more detailed information about a possible fault

Specifications:

• Power: 65W
• Temperature: 200 - 450°C (Note! Slightly low temperature for lead-free soldering)
• Dimensions:210 x 88 x 150mm
• Weight: 1,97kg

Hot air station (ATTEN ST-862D)

• Microcontroller-controlled air heating and airflow adjustment
• Clear digital display
• Temperature and airflow setting with single-digit precision
• Easy temperature setting and lock
• Three preset values in quick selection
• Timer function
• Auto-sleep standby mode
• Error code on the display gives more detailed information about a possible fault

Specifications:

• Power: 1000W
• Temperature: 100℃ - 480℃
• Airflow: 20 - 130L/min
• Dimensions: 210 x 174 x 150 mm
• Weight: 3,34kg

DC power supply (ATTEN APS1503)

Specifications:

• Output power: 56W
• Input voltage: 110V or 220V
• Output type: Single
• Output voltage: 0-15V
• Output current: 0-3A
• Line frequency: 50/60HZ
• USB port parameters
• Voltage: 5V output (±5% accuracy)
• Current: up to 2.1A (overcurrent protection)
• Protections: OVP OCP OHP protection
• Voltage adjustment range: 0-5V/0-15V
• Current adjustment range: 0-0.5A/0-3A
• Operating environment: Relative humidity < 80% (indoor use).
• Cooling-distribution method: Intelligent fan control
• Storage environment: -10 ℃ ~ 70 ℃, <70%.
