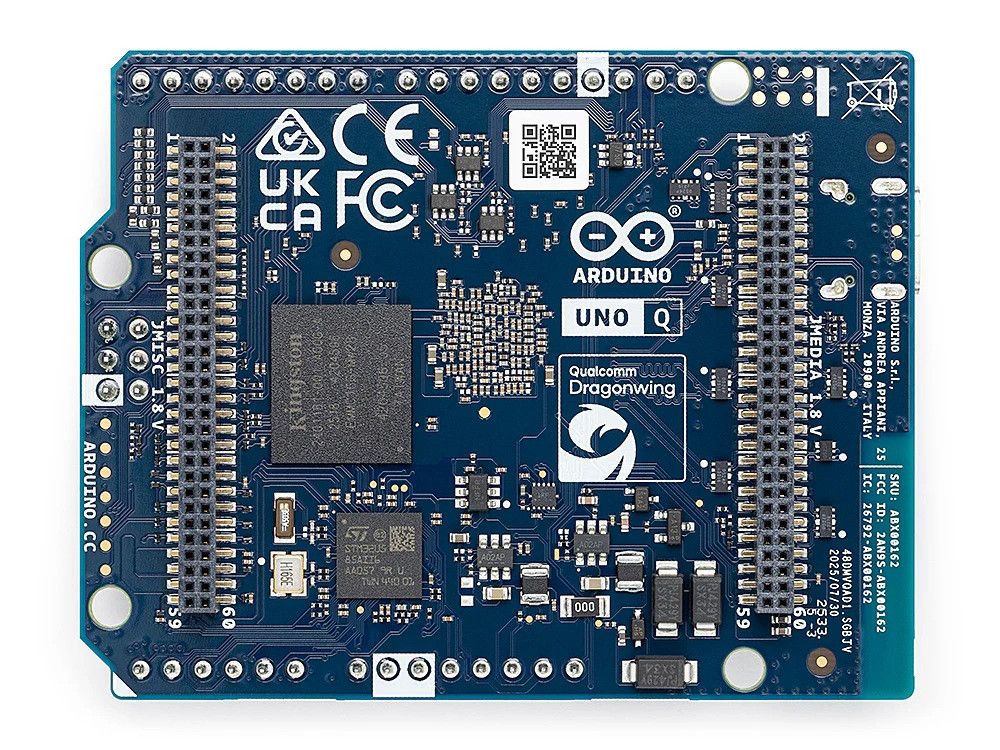

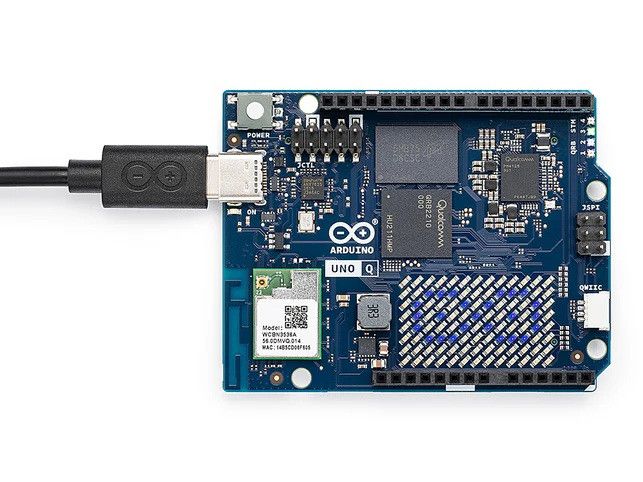

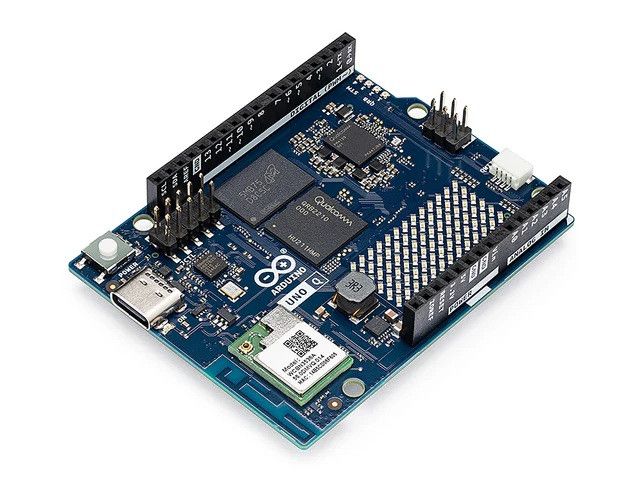

Arduino UNO Q (ABX00162) is a next-generation development platform designed for edge computing and IoT applications. It features the Qualcomm® QRB2210 quad-core Arm® Cortex®-A53 processor running the Debian Linux operating system, and an STM32U585 microcontroller running the Arduino Core software on Zephyr OS. This hybrid architecture allows developers to run high-level applications and real-time tasks on the same board.

Key features:

• Processor: Qualcomm® QRB2210, quad-core Arm® Cortex®-A53 @ 2,0 GHz
• Microcontroller: STM32U585, Arm® Cortex®-M33 @ 160 MHz
• Memory: 2 GB LPDDR4X RAM, 16 GB eMMC storage
• Connectivity: Dual-band Wi-Fi® 5, Bluetooth® 5.1
• Interfaces: UART, I²C, SPI, I³C, CAN, JTAG, Qwiic connector
• Display and indicators: 4 RGB LEDs, 8×13 LED matrix
• Power: USB-C® Power Delivery with video output
• Operating systems: Debian Linux + Zephyr OS
• Dimensions: 68,58 mm × 53,34 mm
• Compliance: CE, FCC, RoHS

Applications:

• Edge AI and machine learning
• Robotics and automation
• Smart devices and IoT
• Education and prototype development
