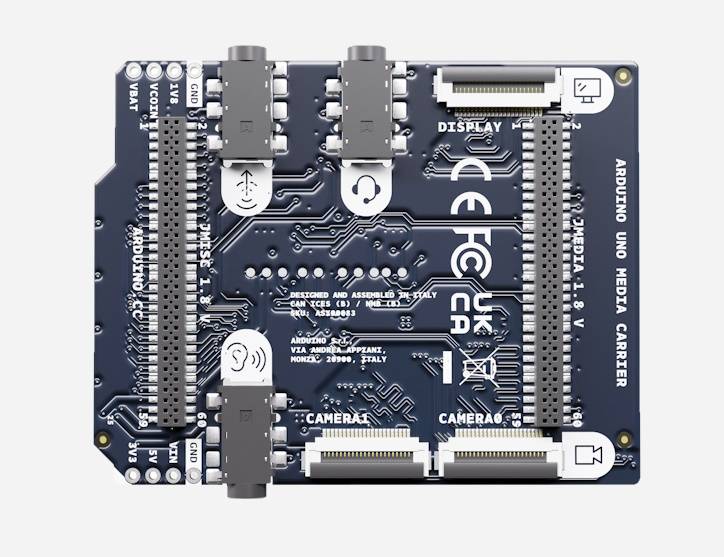

Arduino UNO Media Carrier expansion board extends the multimedia capabilities of compatible Arduino host boards by providing connectors for cameras, displays and audio devices. The board is suitable for machine vision, display and audio projects as well as edge computing applications.

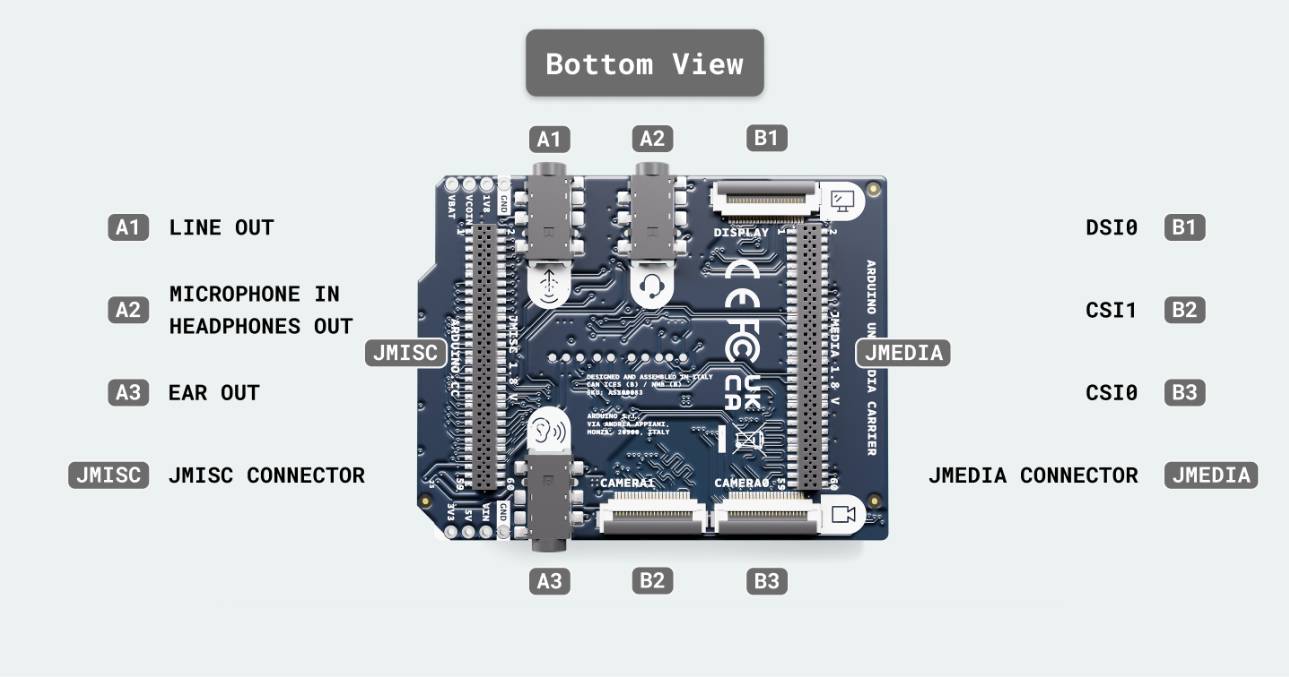

The board connects to a compatible Arduino board via the JMEDIA and JMISC high-speed connectors. Thanks to the pass-through design, all connectors remain available for use with other modules or expansion boards.
Two 22-pin MIPI-CSI connectors enable the use of Raspberry Pi–compatible cameras for applications such as stereo imaging, object detection and multi-angle image capture. The 22-pin MIPI-DSI connector supports Raspberry Pi displays for building interactive user interfaces.
Audio connectors include a combined microphone input and headphones output, as well as separate line out and earphone outputs. These allow for audio recording, monitoring and driving external amplifiers or active speakers.
The board is suitable for AI-powered kiosks, object tracking, interactive exhibits and other embedded applications that utilize multimedia.
- Versatile multimedia features: Support for two cameras, one display and multiple audio outputs on a single expansion board.
- Plug-and-play connectivity: Direct connection to Arduino-UNO Q boards without separate adapters.
- Pass-through design: Preserves the host board’s connectors for use with other modules.
- Suitable for edge AI projects: Supports vision, displays and audio in a single solution.
Specifications
- Board name: Arduino UNO Media Carrier
- 2 × MIPI-CSI 22-pin camera connectors for Raspberry Pi–compatible cameras
- 1 × MIPI-DSI 22-pin display connector for Raspberry Pi–compatible displays
- 1 × 3.5 mm MIC IN / Headphones Out combined microphone input and headphone output
- 1 × 3.5 mm Line Out for amplifiers and active speakers
- 1 × 3.5 mm Earphones Out for headphones
- Host connector: JMEDIA and JMISC high-speed connectors
- Pass-through design: Preserves availability of all connectors

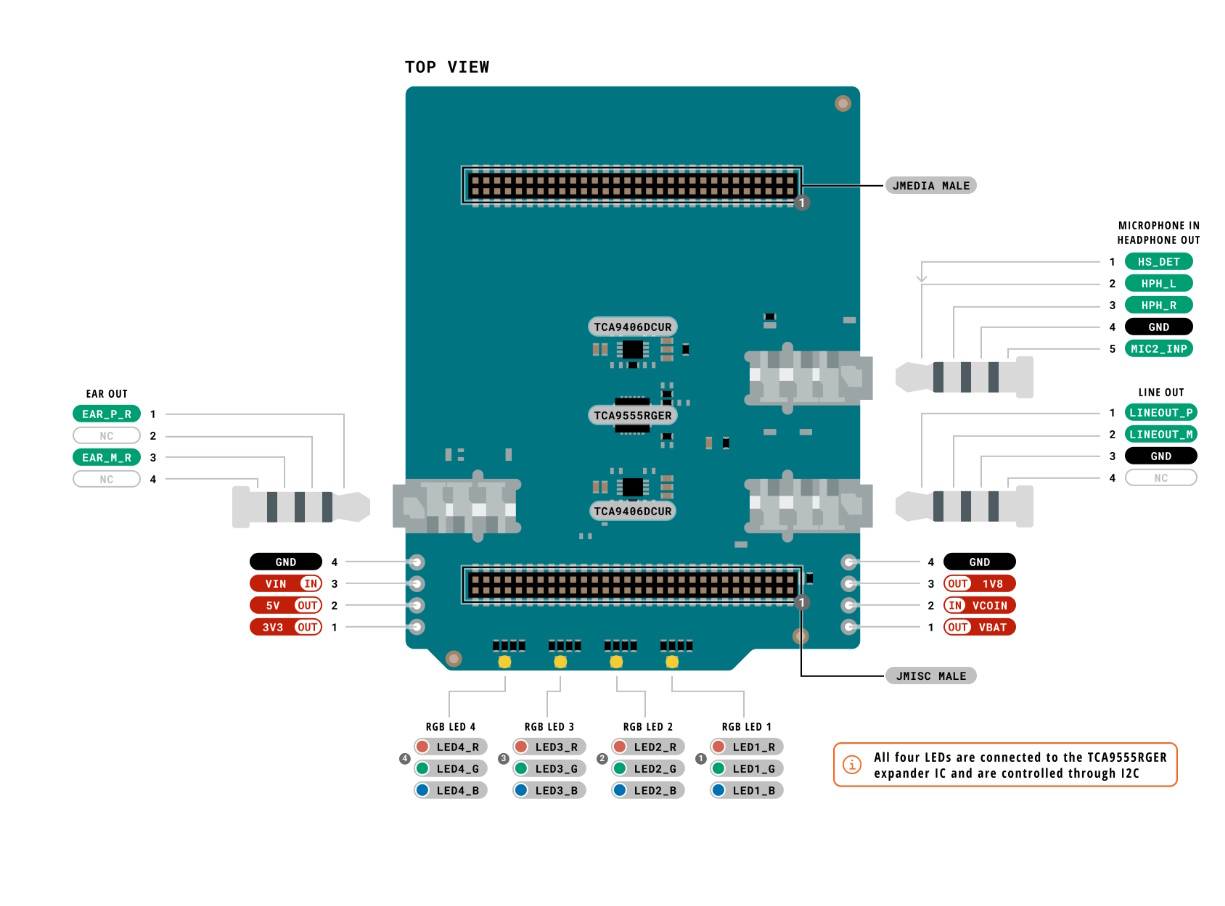

- Supported interfaces: I2C, MIPI-CSI, MIPI-DSI, PSSI, GPIO
- Audio interfaces: HP OUT, LINE OUT, MIC IN, EAR OUT
Package contents
- Arduino UNO Media Carrier expansion board
