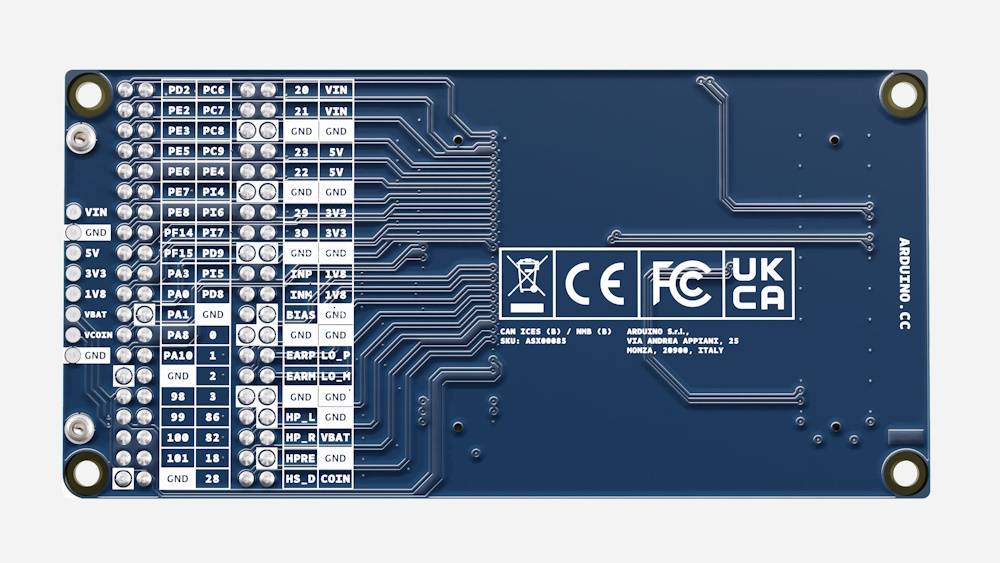

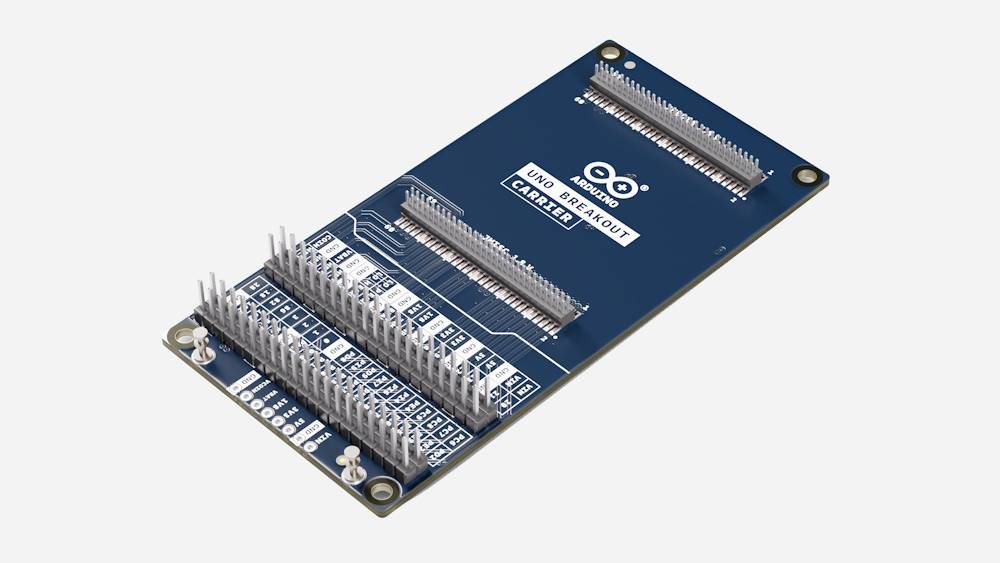

Arduino UNO Breakout Carrier brings the Arduino UNO Q board's JMEDIA and JMISC high-speed connector signals to easily accessible and clearly labeled pin headers. The board is designed for prototyping, measurements, troubleshooting and device integration.

The Breakout Carrier provides direct access to audio, I²C, SPI, UART, PWM, power and control signals without separate adapters or soldering. Standard male headers allow easy connection to test equipment, breadboards, custom PCBs and third-party modules.

The board is especially suitable for measuring signals with an oscilloscope or logic analyzer, testing interfaces and integrating the Arduino UNO Q board into larger embedded systems.

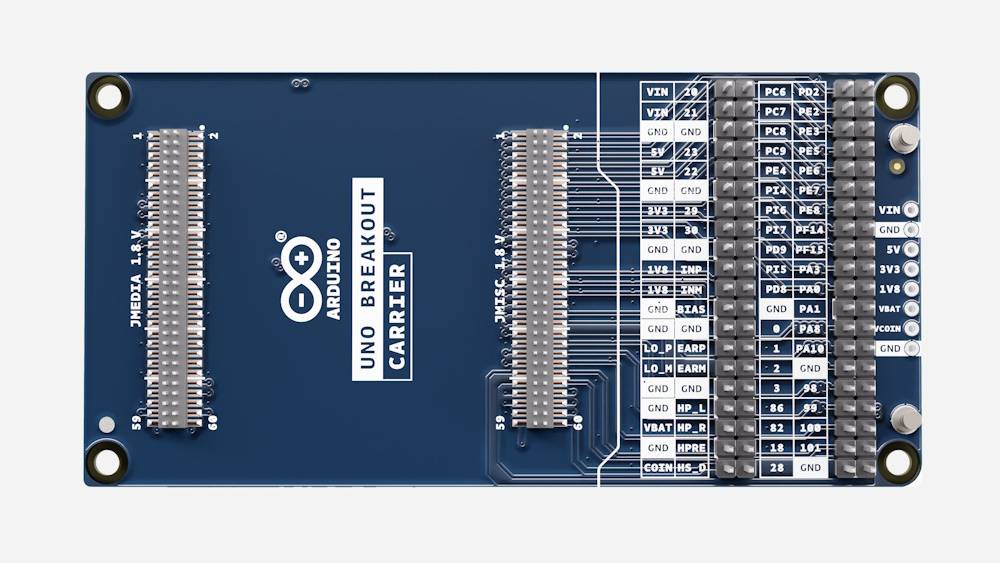

• Direct access to signals: The key signals from the JMEDIA and JMISC connectors are routed to clearly labeled headers.
• No adapters or soldering: Standard pin headers enable immediate use.
• Makes measurements and signal validation easier: Suitable for oscilloscope and logic analyzer use.
• Simplifies integration: Enables direct connection to custom electronic solutions.

Features

• Manufacturer model: ASX00085
• Compatibility: Arduino UNO Q
• Host connectors: JMEDIA and JMISC high-speed connectors

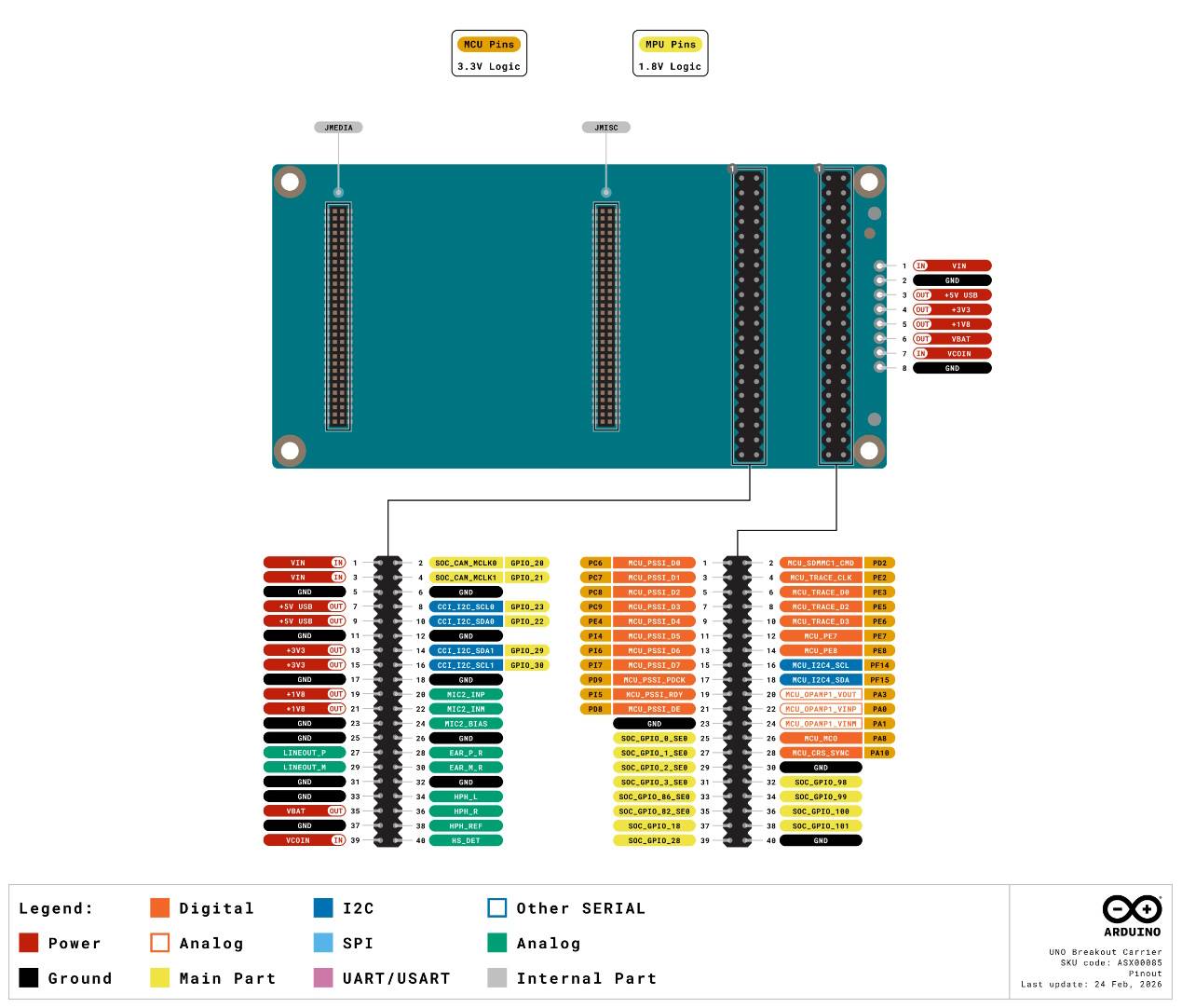

• Connections: I²C, SPI, UART, PWM, audio, GPIO, control signals and power rails
• Use cases: Development, measurement, signal validation, educational use and system integration

Package includes

• Arduino UNO Breakout Carrier

Links

Manufacturer product page

Datasheet (pdf)
