Note! You can use this electronics starter kit with any platform such as Arduino, BBC micro:bit, ESP.

This kit includes a display, 5 different sensors (vibration, touch, flame, temperature & humidity, soil moisture), a DC motor with propeller, a servo motor, many jumper wires, LEDs, switches, a relay and a breadboard.

This kit is suitable for a beginner adventure with Arduino. However, there are enough and varied parts so that more than just blinking an LED is possible.

Note! Arduino or a similar development board must be purchased separately.

Features

• comprehensive manual with examples, 24 different projects (in English)
• a total of 33 sensors, components and other parts

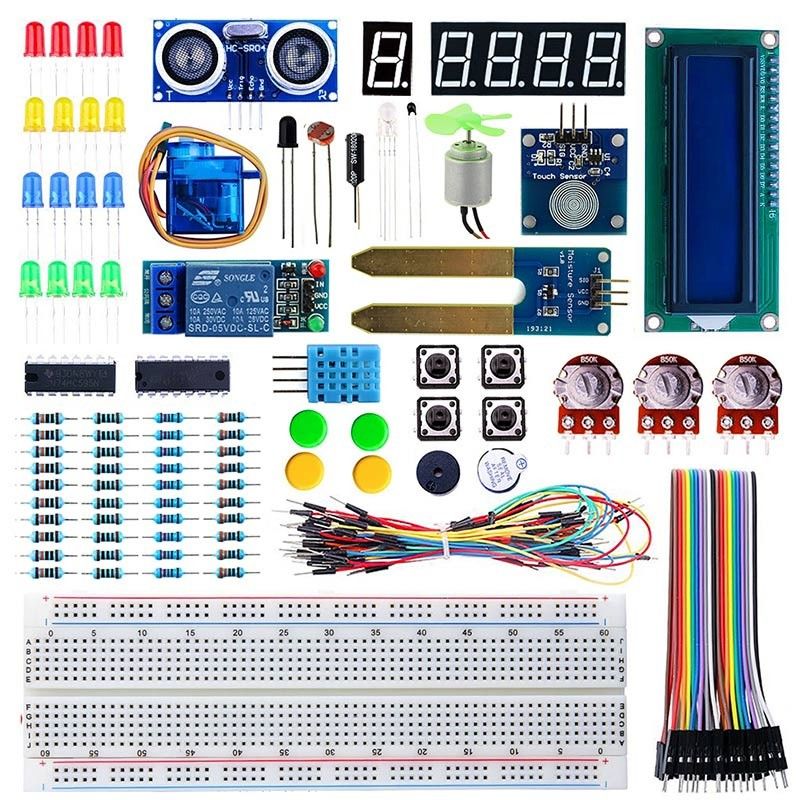

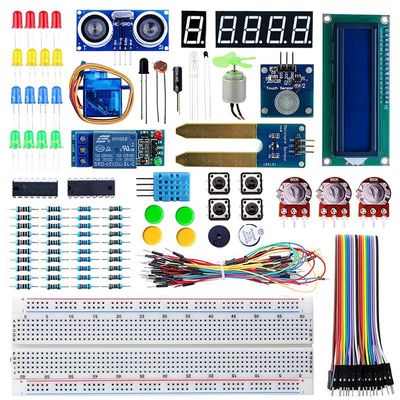

Parts list

• Breadboard x 1
• 65 Jumper Wire x 1
• Female-to-male Dupont Wire x 10
• Resistor (220R) x 10
• Resistor (330R) x 10
• Resistor (1K) x 10
• Resistor (10K) x 10
• Yellow LED x 4
• Blue LED x 4
• Green LED x 4
• Red LED x 4
• Button (big) x 4
• Button cap x 4
• Active Buzzer x 1
• Passive Buzzer x 1
• RGB LED(common cathode) x 1
• 1 digit 7-segment Display(common cathode) x 1
• 4 digit 7-segment Display (common anode) x 1
• IC 74HC595 x 1
• LCD1602 Module x 1
• 5V relay x 1
• Vibration Sensor x 2
• Photoresistor x 1
• Flame sensor x 1
• Thermistor x 1
• DHT11 Temperature and humidity sensor x 1
• Touch sensor x 1
• Soil moisture sensor x 1
• HC-SR04 module x 1
• 9G servo x 1
• DC motor with male Dupont Wire + fan blade x 1
• IC L293D x 1
• Potentiometer（10K）x 3

Useful links

• User manual (pdf)
• Arduino code (zip)
