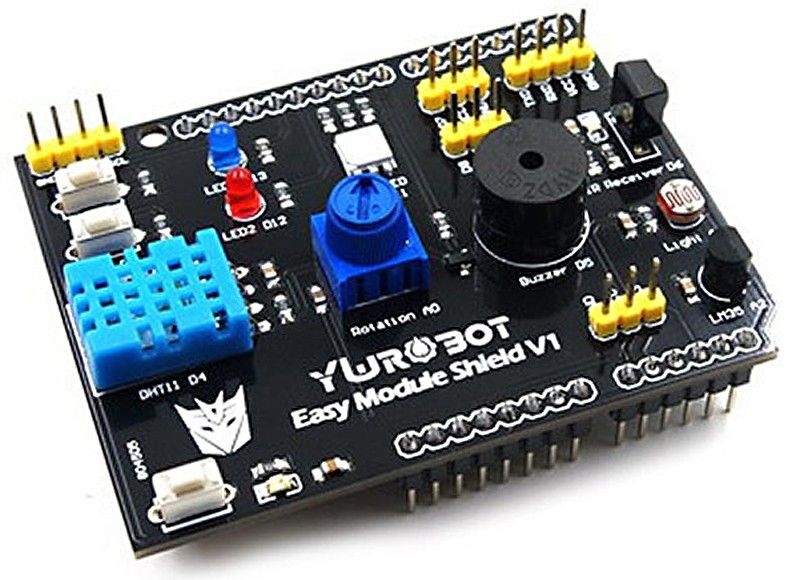

This versatile shield is compatible with the Arduino UNO. It makes it easy to get started with Arduino programming. With this single add-on board the functions can also be done separately, for example with Linkerkit or Arduino Sensor Kit series. You don’t need soldering or fiddling with wires.

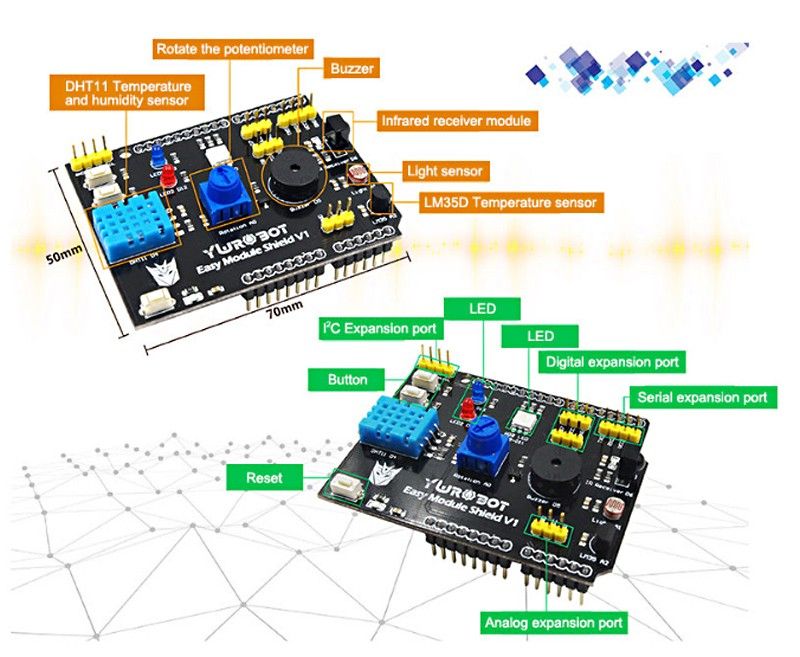

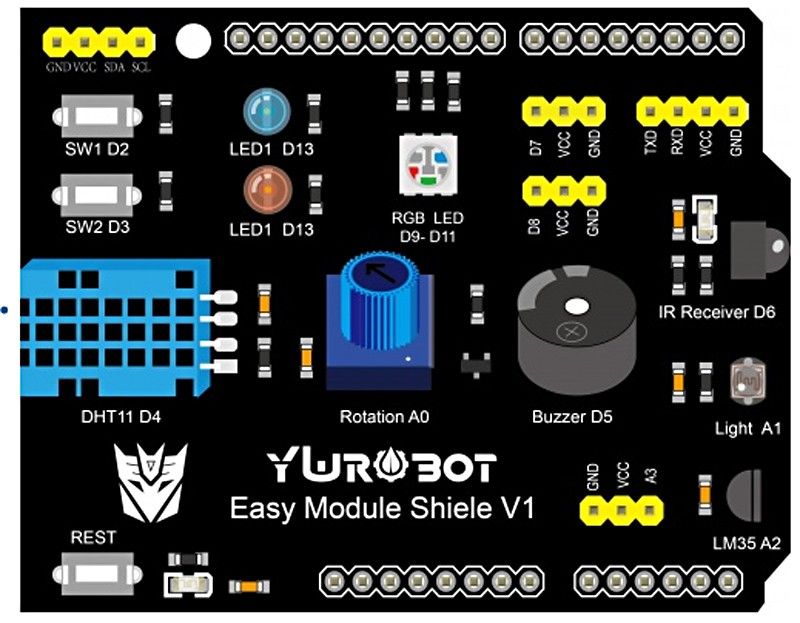

Features

• two push-button switches (2-way button module)
• two LEDs (2-way LED module)
• RGB LED (Full color LED module)
• infrared receiver for remote control (IR receiver module)
• brightness measurement with LDR (LDR Brightness sensor module)
• linear temperature measurement (LM35D temperature sensor module)
• buzzer (Passive buzzer module)
• potentiometer (Rotary potentiometer module)
• digital temperature and humidity measurement (DHT11 temperature and humidity sensor module)
• I2C port (A4 SDA, A5 SCL)
• TTL/CMOS level serial port
• two digital ports (D7, D8)
• analog input port (A3)
• reset button

Links

• Ks0183 keyestudio Multi-purpose Shield V1
