ARDUINO SHIELD RTC Data Logger

In stock 1 pcs

SKU#: ARD-ASC7503RTC

ARDUINO SHIELD RTC Data Logger

ARDUINO SHIELD RTC Data Logger

ARDUINO SHIELD RTC Data Logger

In stock 1 pcs

SKU#: ARD-ASC7503RTC

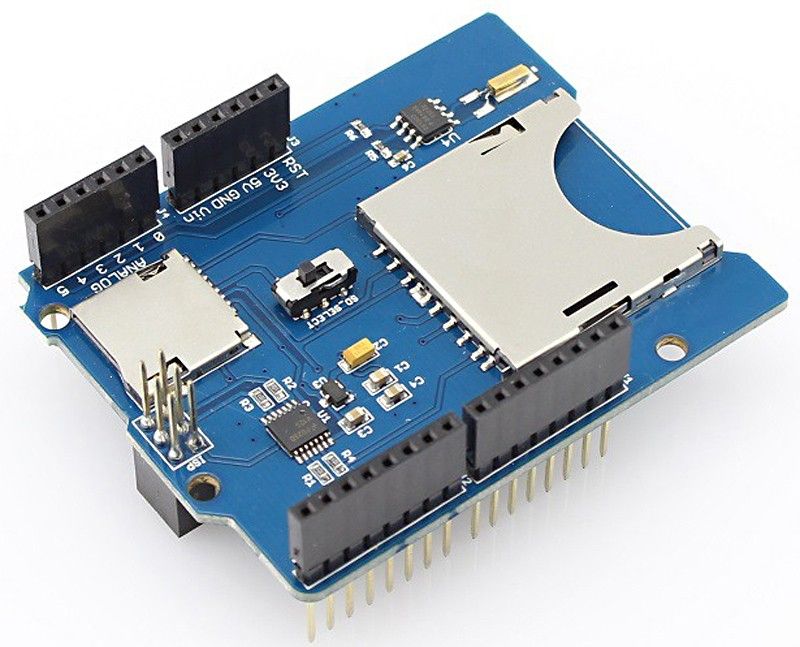

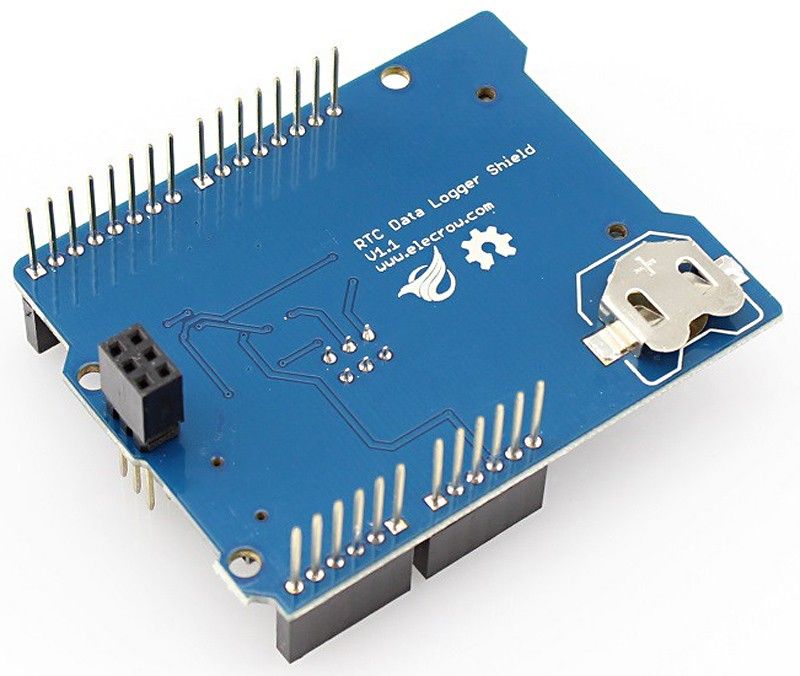

Elecrow ASC7503RTC - RTC Data Logger Shield for Arduino with SD card reader.

The estimated restock date of the product is 30 September 2026

17,49 €

In stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

compatible with Arduino UNO and compatibles (not compatible with Arduino Mega)
supports SD, Micro SD and SDHC memory cards
- with basic libraries max. 4GB cards work
memory card selection by switch (on the SPI bus)
uses I2C and SPI buses
compatible with 3.3V and 5V logic levels
real-time clock is based on the popular DS1307 RTC chip (on the I2C bus)
battery: CR1220 (not included)
operating voltage: 2.6-3.6VDC
stackable (reserves pin D4 for chip select line)

Links

Product Information

Availability In stock
Manufacturer Elecrow
Product path Home Development Cards Arduino Arduino expansion boards (shields) ARDUINO SHIELD RTC Data Logger
SKU ARD-ASC7503RTC
Attributes
- Compatible Arduino Uno
- Manufacturer's model ASC7503RTC
- Click for more details https://www.elecrow.com/rtc-data-logger-shield-p-1370.html
- Dimensions 68 x 53 x 23 mm
