Features

• 168 dB maximum link budget
• +20 dBm - 100 mW constant RF output vs. V supply
• +14 dBm high efficiency PA
• Programmable bit rate up to 300 kbps.
• High sensitivity: down to -148 dBm
• Excellent blocking immunity
• Fully integrated synthesizer with a resolution of 61 Hz
• FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation
• Built-in bit synchronizer for clock recovery
• Preamble detection
• 127 dB Dynamic Range RSSI
• Automatic RF Sense and CAD with ultra-fast AFC

Specs

• Frequency Range: 868-915 MHz
• Spreading Factor: 6-12
• Bandwidth: 7.8-500 kHz
• Effective Bitrate: 0.018-37.5 kbps
• Est. Sensitivity: -111 to -148 dBm

Package contents

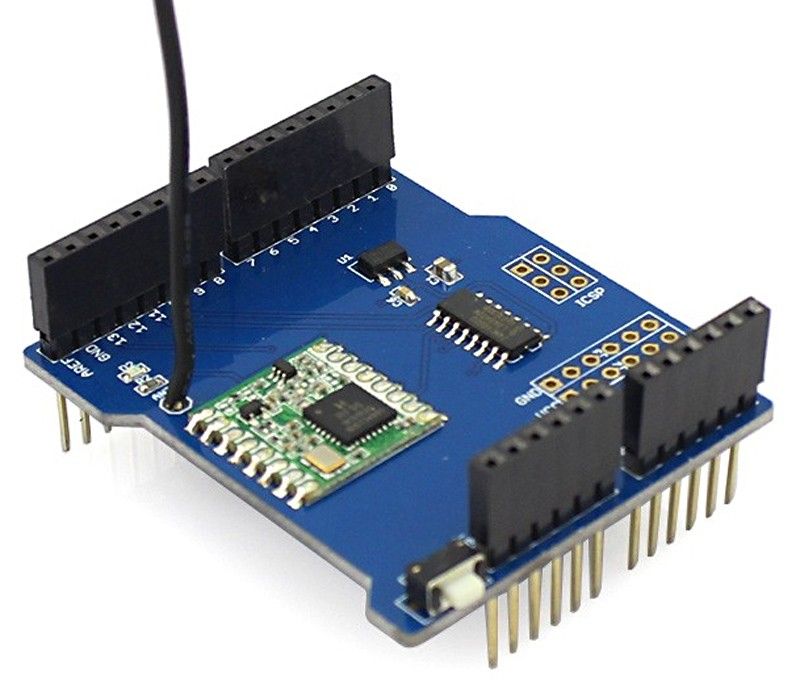

• Lora RFM95 Shield

Links

• Eagle files (zip)
• Library Radiohead (zip)
• Datasheet (pdf)
• User manual (Elecrow Wiki)

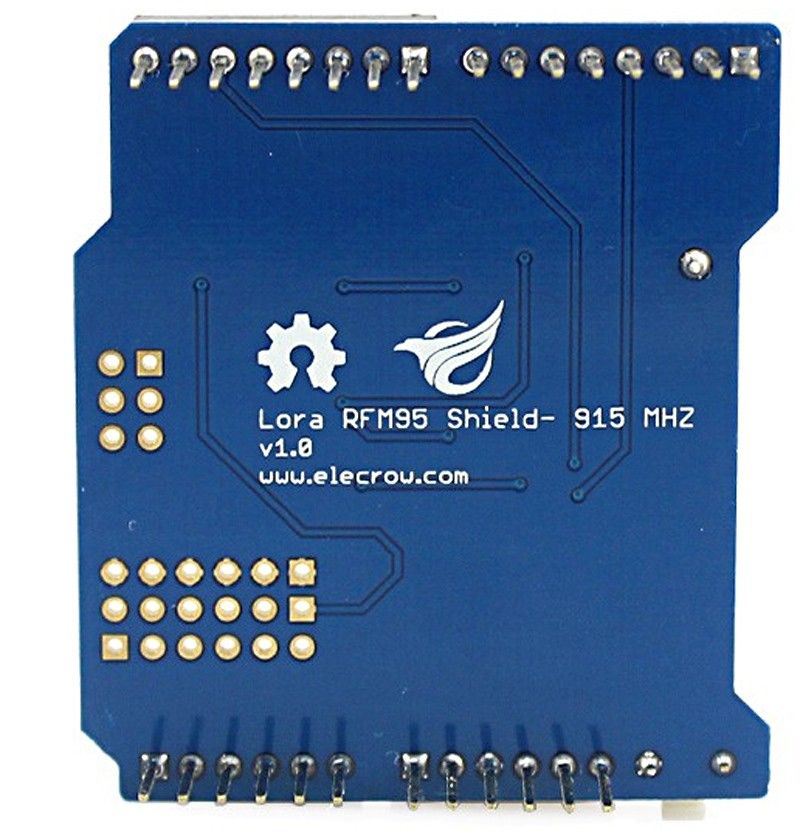

Note! The free ISM frequency bands in Europe are 433 MHz and 868 MHz. The board is equipped with the RFM95W (which is the Semtech SX1276 marked RF96) module that fits the 868 MHz and 915 MHz bands. Antenna length ~82 mm (1/4 of the 868 MHz wavelength). Therefore, despite the packaging texts, this board works for 868 MHz use.
