Ever wanted to build a small CNC router or CNC milling machine? Love working with Arduino Micro Controllers?
What projects can this be used for?
:Small CNC routers, DIY Laser Cutters, 3D Printers and almost any project where you need to control a stepper motors with high precision.

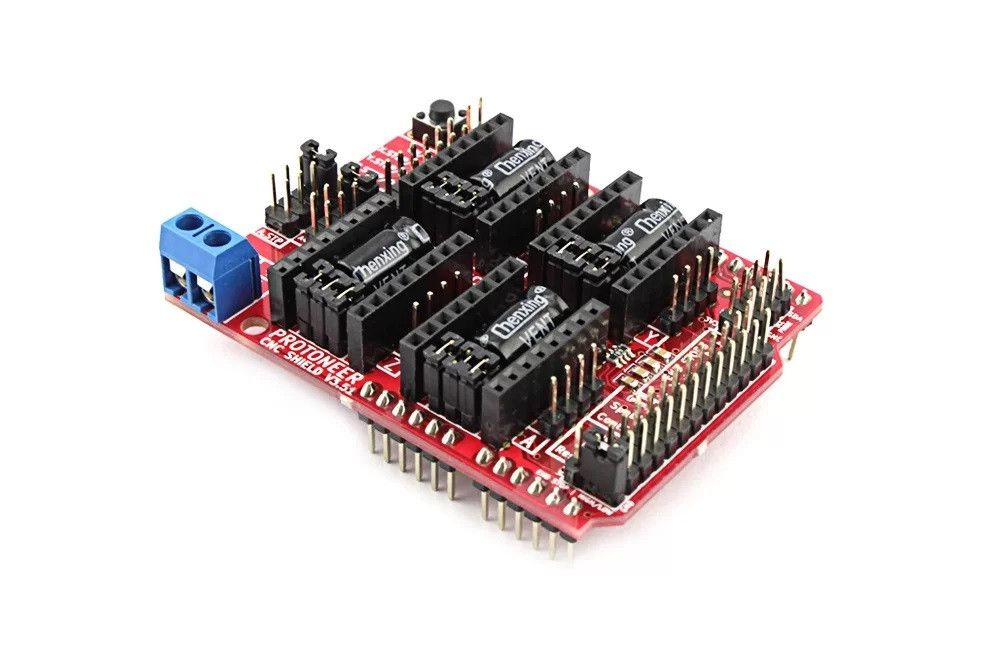

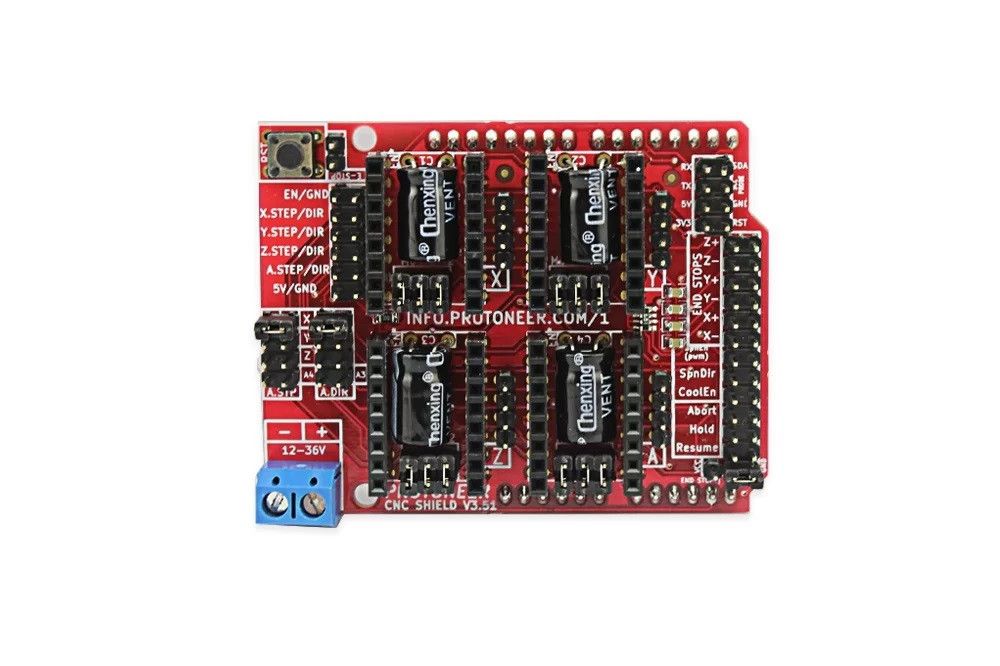

At Protoneer we designed this simple Arduino CNC shield kit (Arduino Extension Board) with the following features:
New with Version 3.51:

• Added circuitry for End-Stop and Probe signal filtering. This eliminates false triggers and makes it possible use non-shielded cable for end-stops/probes.
• Bigger Solder pads making it easier to assemble.
• Probe pin labels have been updated to make it easier to install a probe.

Features

• Includes Noise Filers on all endstops and the probing pin.(New in V3.51)
• GRBL 0.9 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals https://github.com/grbl/grbl)
• 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins A4 and A3)
• 2 x End stops for each axis (6 in total)
• Coolant enable
• Uses removable Pololu A4988 compatible stepper drivers. (A4988, DRV8825 and others)(Not Included)
• Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
• Compact design.
• Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
• Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)

Delivery

• Arduino CNC Shield V3.51 - GRBL v0.9 compatible - Uses Pololu Drivers x 1

FREQUENTLY ASKED QUESTIONS

• What is a CNC router? http://en.wikipedia.org/wiki/CNC_router
• What is GRBL?An open source, embedded, high performance g-code-parser and CNC milling controller written in optimized C that runs on an Arduino UNO. https://github.com/grbl/grbl
• What is Arduino? http://en.wikipedia.org/wiki/Arduino
• What Pololu stepper driver can it use? Pololu A4988 - http://www.pololu.com/catalog/product/1182 or Pololu DRV8825 http://www.pololu.com/catalog/product/2133 works well. Both of these driver are available at Elecrow.
• A4988 Stepper Motor Driver https://www.elecrow.com/a4988-stepper-motor-driver-module.html
• DRV8825 Stepper Motor Driver https://www.elecrow.com/drv8825-stepper-motor-driver-module-p-1347.html
• For more question, please visit forum.protoneer.co.nz
