ARDUINO SENSOR SHIELD V5

out of stock

SKU#: ARD-SENV5

ARDUINO SENSOR SHIELD V5

ARDUINO SENSOR SHIELD V5

ARDUINO SENSOR SHIELD V5

out of stock

SKU#: ARD-SENV5

10,01 €

Removed from selection

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

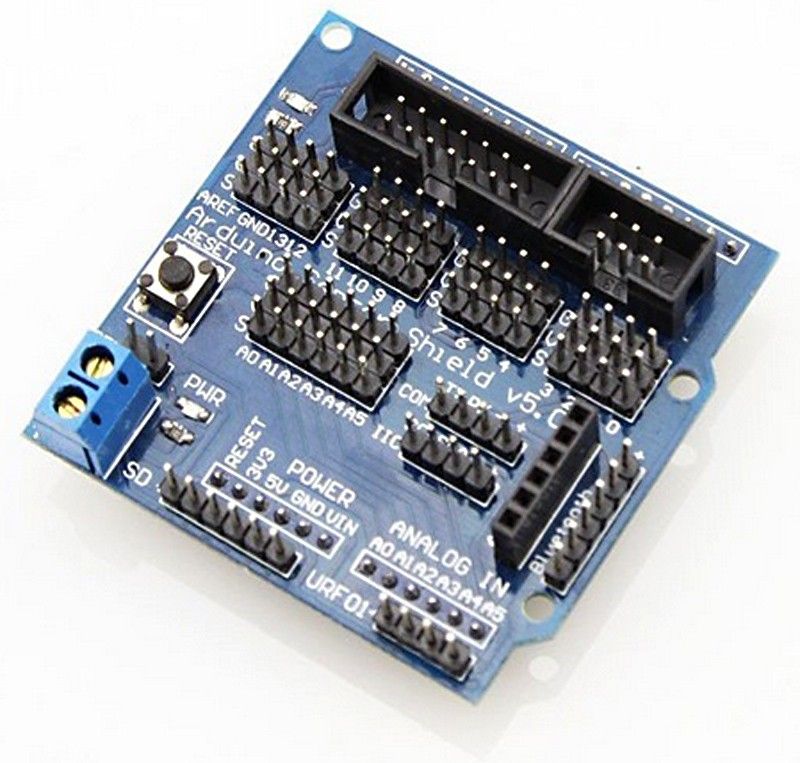

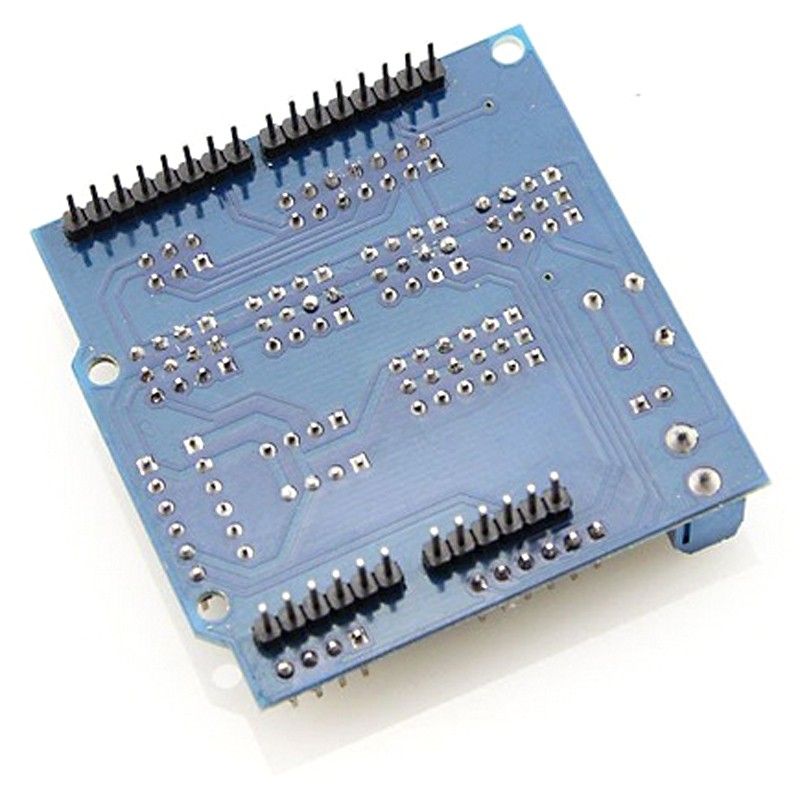

Product Description

the board itself does not require separate libraries
digital and analog in groups of three pins (VCC, GND, SIG)
auxiliary power input via screw terminal
connector for APC220 radio module
connector for Bluetooth module
connections for LCD display (serial and parallel interface)
connections for SD card
I2C and UART 5V connections
connector for RB URF v1.1 ultrasonic sensor
RESET button
dimensions: 57 x 57 mm

Product Information

Availability Removed from selection
Product path Home Development Cards Arduino Arduino expansion boards (shields) ARDUINO SENSOR SHIELD V5
SKU ARD-SENV5
Attributes
- Compatible Arduino Uno
