Note! This product is also compatible with the Finder Opta series.

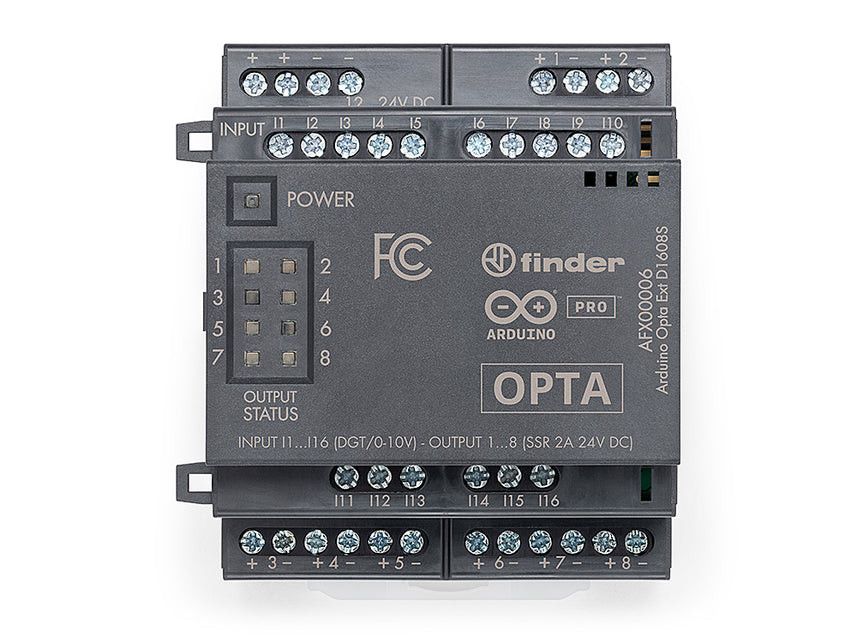

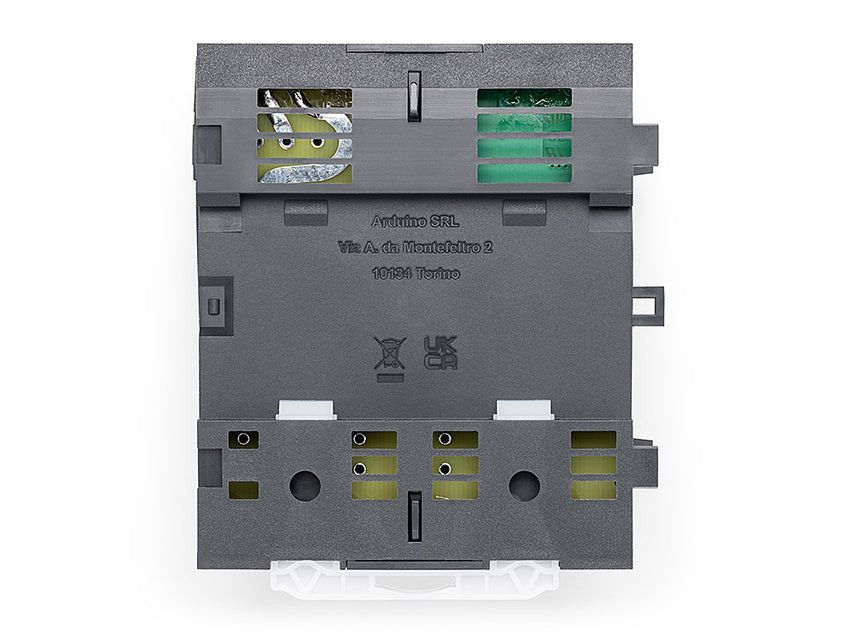

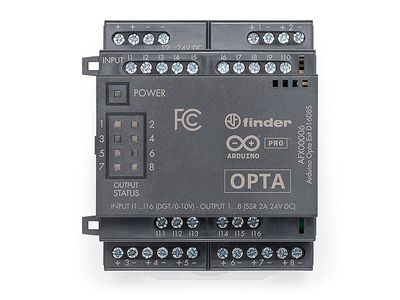

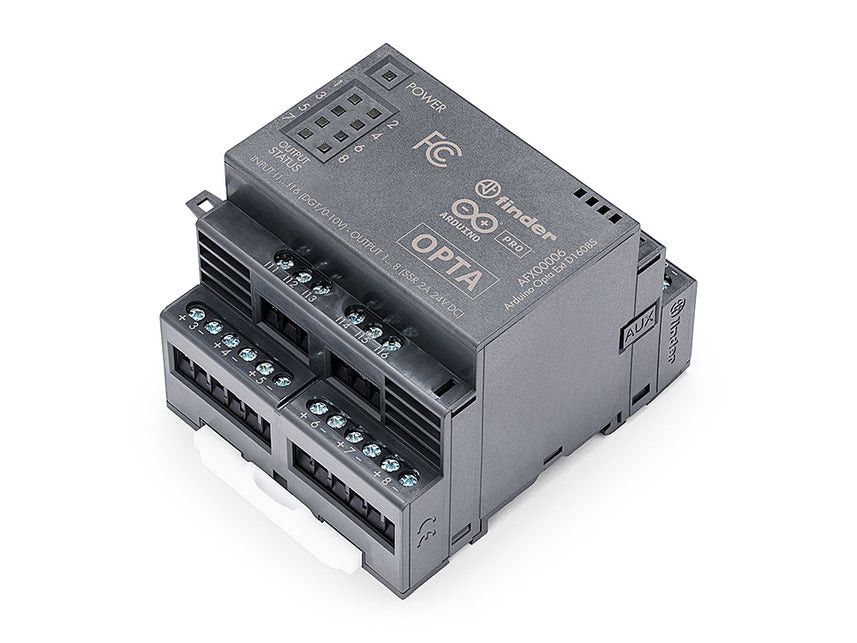

Arduino Pro Opta Ext D1608S enhances the real-time control, monitoring and predictive maintenance applications of your Arduino Opta device by adding 16 programmable voltage inputs and 8 solid-state relays 24 VDC 2A.

Click the module to flexibly and quickly extend your system capabilities and seamlessly manage new I/O ports from your Opta base unit using the open and widely known Arduino ecosystem or the PLC IDE IEC 61131-3 programming environment.

Features

• Flexible inputs: 16 new inputs per added expansion for your applications, programmable as digital 0-24 VDC or analog 0-10 V.
• Powerful outputs: 8 solid-state relays providing 24 VDC and 2A each.
• Up to 5 snap-on modules can be managed by multiplying and mixing sets of I/O ports with seamless detection: snap them directly next to your Opta base module and use the I/O ports as Opta resources.
• Extend hardware capabilities while keeping programming accessible by using the Arduino IDE with its wide range of ready-made sketches, tutorials and libraries.
• Easily set the new I/O ports to operate with IEC 61131-3 PLC languages in the PLC IDE, leveraging its low-code approach and predefined resources.
• Extend Opta benefits to real-time remote monitoring with intuitive Arduino Cloud dashboards and secure communication to a wider set of connected devices.
• Reliable by design, thanks to industrial standards and Finder’s expertise in electronic devices.
• Easy DIN-rail mounting.

Applications

Opta’s digital extensions are ideal for increasing the number of real-time control points in the manufacturing sector and in any building automation project.
The Opta ecosystem is compatible with all major cloud providers – but choosing the simplicity of Arduino Cloud can really make a difference for those who want to build, customize and manage their own dashboards remotely.

Video

Links

• Datasheet PDF
