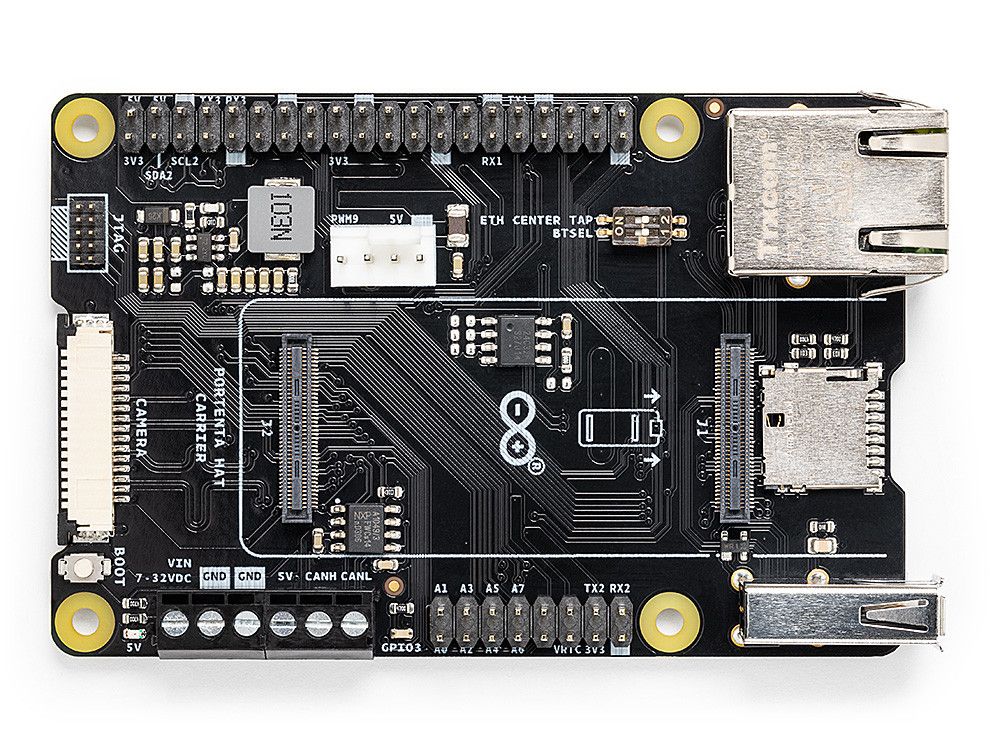

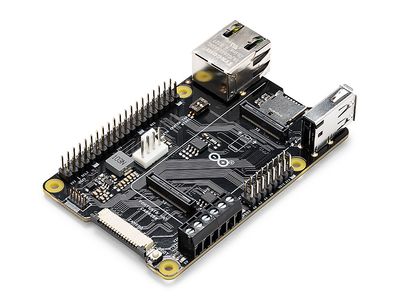

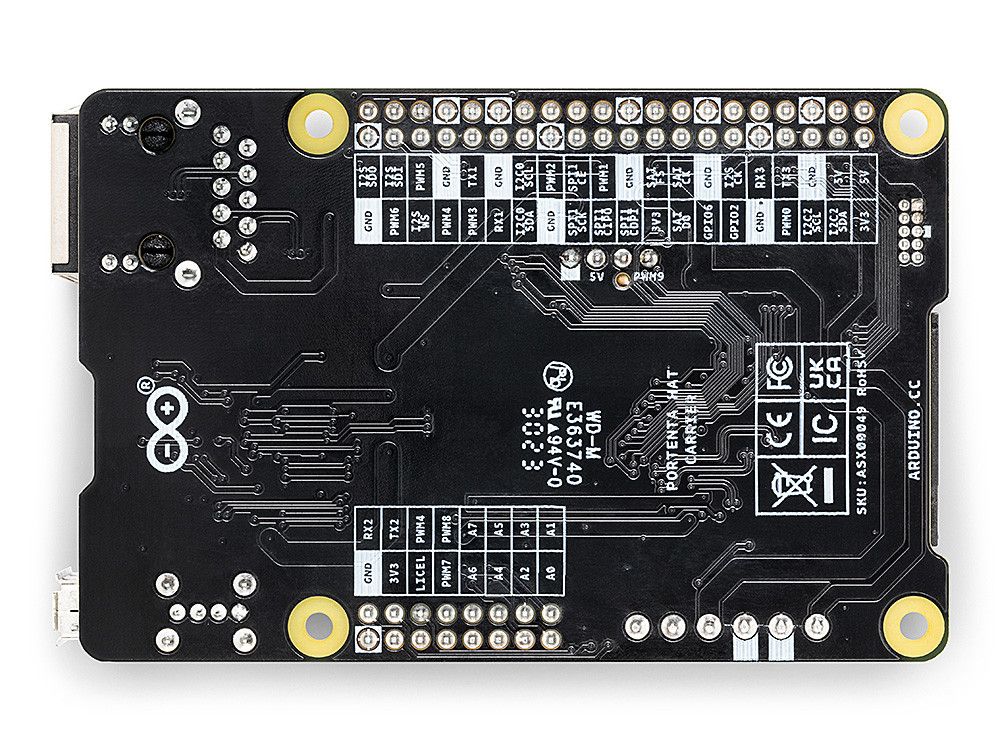

Portenta Hat Carrier is a welcome addition to the Arduino Pro product family. An expansion board compatible with Portenta C33, H7, X8 that lets you use Raspberry Pi compatible HAT add-on boards and cameras.

The Portenta Hat Carrier board provides support for multiple interfaces such as GPIO, RJ45 Ethernet, USB, CAN, and microSD.

To aid application development the board includes a JTAG connector. For thermal management there is a fan connector (PWM). A wide range of other digital and analog connection options are available.

Key benefits are:

• Add Raspberry Pi ® HATs to your Portenta projects
• Quick access to CAN, USB, and Ethernet peripherals
• Use the onboard MicroSD card for data logging
• Enjoy simple debugging via onboard JTAG pins
• Easily drive actuators and read sensors via 16x analog I/Os
• Use the onboard camera connector for machine vision

Arduino Iot Cloud

By integrating with Arduino IoT Cloud you can ensure secure communication for all your connected things.

TRY ARDUINO IOT CLOUD FOR FREE

Technical specifications

Connectors:

• High-density connectors compatible with Portenta products
• 1x USB-A female connector
• 1x Gigabit Ethernet connector (RJ45)
• 1x CAN with onboard transceiver
• 1x MIPI camera connector
• 1x MicroSD card slot
• 1x PWM fan connector
• 40-pin header GPIO connector, compatible with Raspberry Pi add-on boards (HAT)
• 16-pin header connector

  • 8x analog inputs
  • 1x GPIO
  • 1x UART (without handshakes)
  • 2x PWM
  • 1x LICELL Portenta RTC power input

Interfaces:

• CAN
• UART
• SAI
• SPI
• I2C
• PWM

Debugging: JTAG

Power inputs:

• 7-32 VDC via screw terminal
• Via USB-C
• 5V supply via GPIO connector

Operating temperature: -40° C - +85° C (-40° F - 185 °F)

Dimensions: 85 mm x 56 mm (3.35 inches x 2.6 inches)
