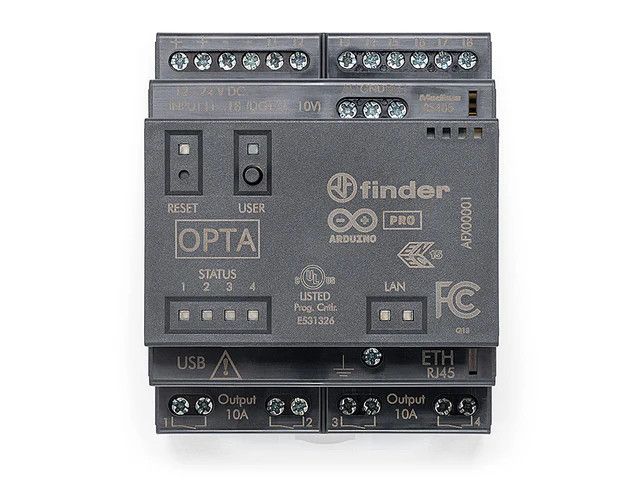

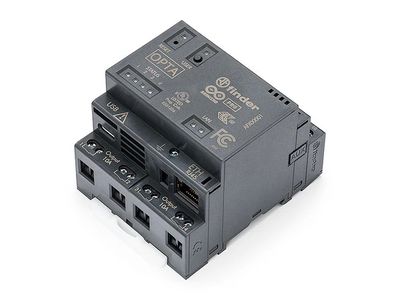

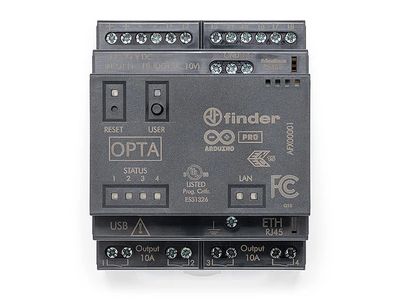

The original Arduino® Opta RS485 (AFX00001) is a programmable 4-channel logic relay that can be controlled via Ethernet or an RS485 bus. Programming is done using the Arduino C++ language or its own PLC graphical programming tool compliant with the IEC 61131-3 standards. A PLC IDE license is included with the device. Opta meets the X.509 standard requirements and is equipped with a dedicated cryptographic chip. It is therefore well suited for industrial IoT applications that require a high level of security.

Features

• Supply voltage 12…24 V DC
• DIN-rail mounting
• 8 Digital/Analog (0-10V) inputs
• 4 normally closed 10A relay outputs
• Powerful dual-core Cortex®-M7+M4 microcontroller
• USB-C port for programming and data acquisition
• RJ45 connector (MODBUS TCP/IP)
• RS485 connector (MODBUS RTU)
• IP20 enclosure rating
• Operating temperature -20°C...+50°C
