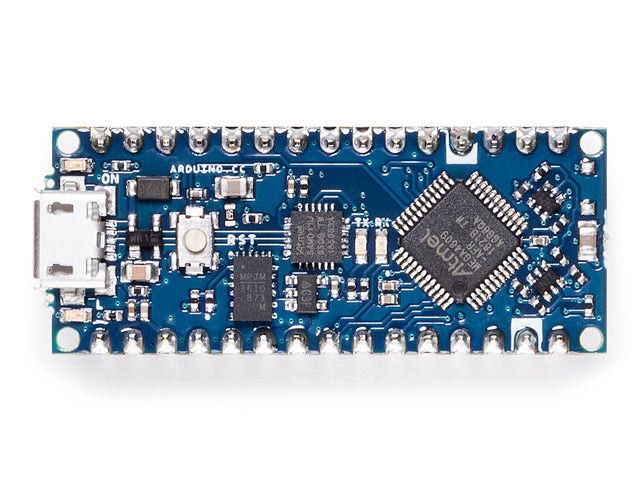

Nano Every is an Arduino 5V-compatible platform in the smallest possible form: 45x18mm!

The Arduino Nano is a favorite platform for many projects that requires a small and easy-to-use microcontroller. The small size and low price make the Nano Every especially suitable for use in inventions such as inexpensive robots, electronic instruments, and generally to control smaller parts of larger projects.

The Arduino Nano Every is an evolution of the traditional Arduino Nano platform, but it has a much more powerful processor, the ATMega4809. This allows for larger programs than on the Arduino Uno (its program space is 50% larger) and more variables (RAM is 200% larger).

A better Arduino Nano

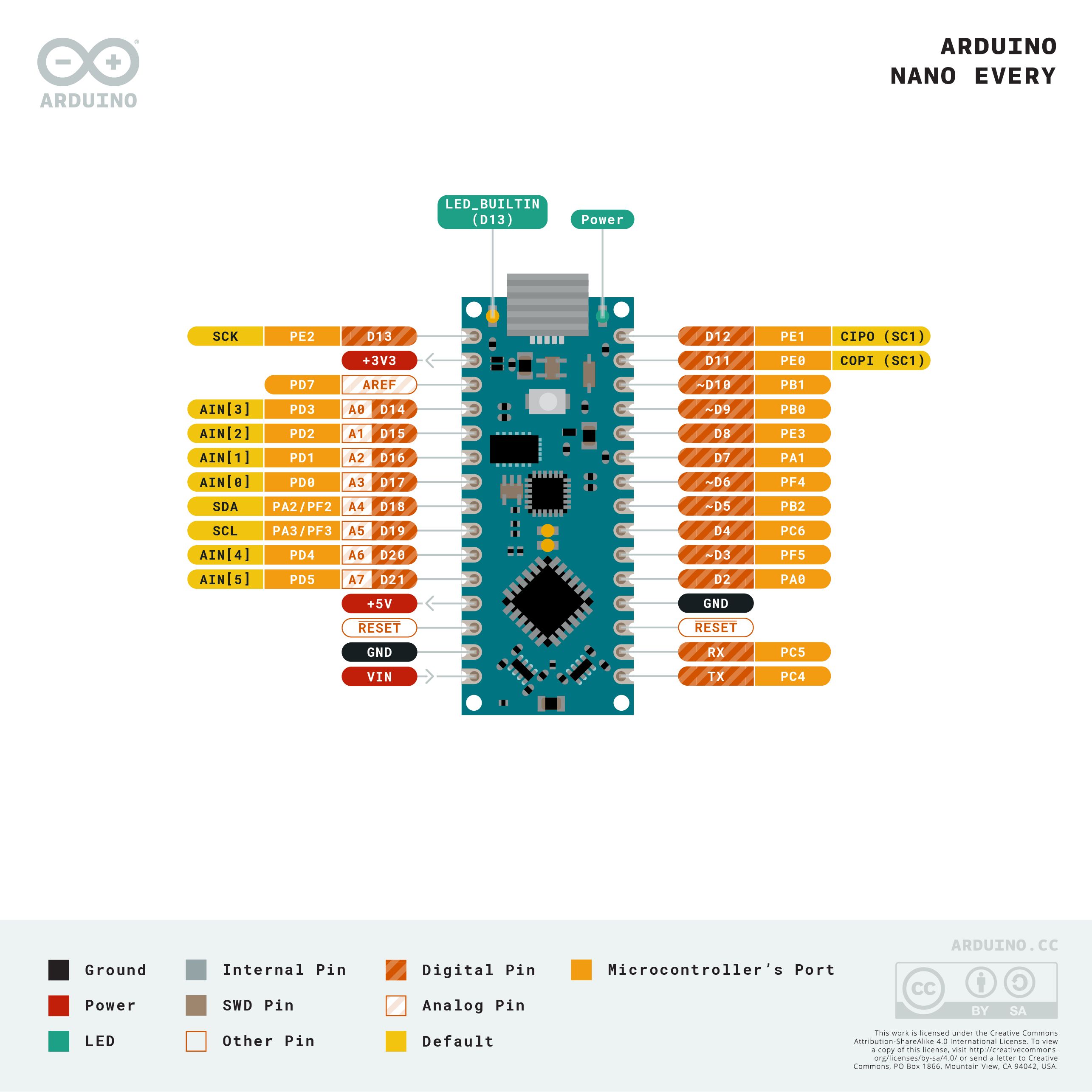

If you have used the Arduino Nano in your projects before, the Nano Every is a pin-compatible replacement. The main differences are: a better processor and a micro-USB connector.

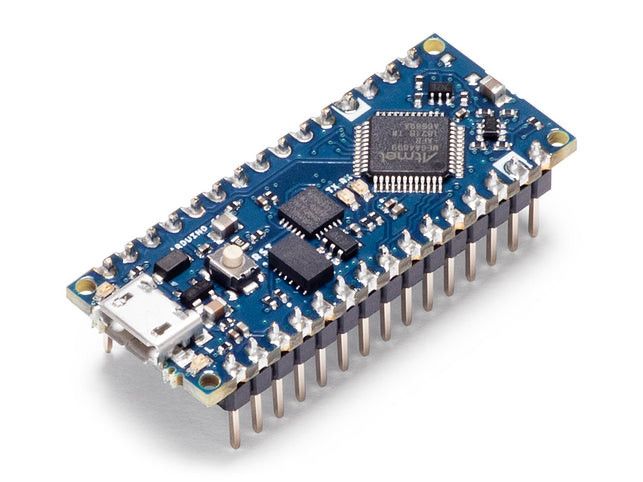

The board is available in two options: either with pins or without, which allows embedding the Nano Every into any kind of invention. The board has castellated connectors and no components on the underside. These features make it possible to solder the board directly into your own design, minimizing the overall prototype height.

Specifications

• EAGLE FILES
• SCHEMATICS
• FRITZING
• Wiki - Nano Every
