Arduino Nano Every (ABX00028)

Name: Arduino Nano Every (ABX00028)
Brand: Arduino
SKU: ARD-ABX00028
Price: 17.39 EUR
Availability: InStock

In stock 19 pcs

SKU#: ARD-ABX00028

Arduino Nano Every (ABX00028)

In stock 19 pcs

SKU#: ARD-ABX00028

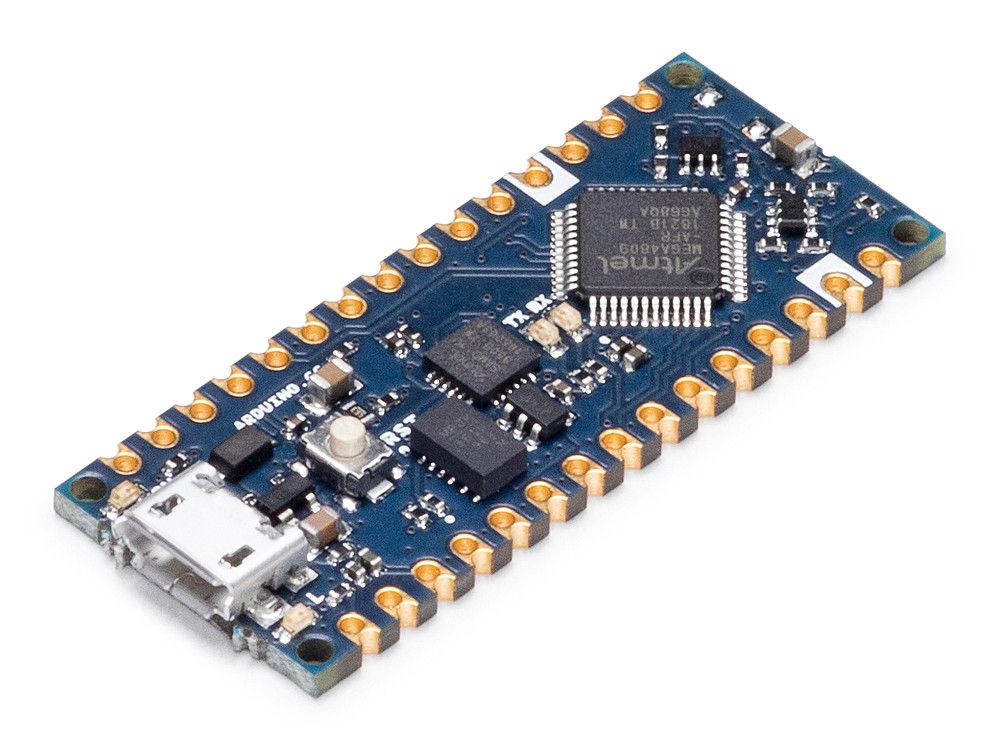

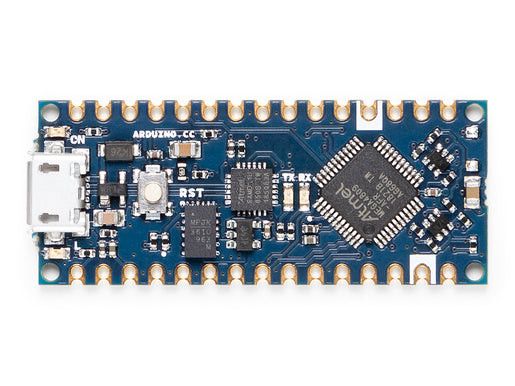

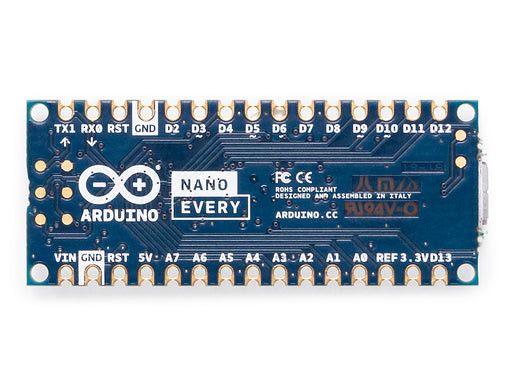

The original Arduino® ABX00028 - Arduino Nano Every - is based on the ATMega4809 microcontroller, offering more performance in the same form factor as the earlier Arduino Nano. This model does not have pin headers pre-soldered.

17,39 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Arduino Nano is a popular choice for many projects that require a small and easy-to-use microcontroller board. Due to its small size and low price, the Nano Every is particularly well suited for use in inventions, low-cost robotics, electronic instruments, and for controlling smaller parts of larger projects.

The Arduino Nano Every is an evolution of the traditional Arduino Nano board, but it has a much more powerful processor, the ATMega4809. This allows for larger programs than on the Arduino Uno (its program memory is 50% larger) and many more variables (RAM is 200% larger).

Specifications

MICROCONTROLLER	ATMega4809 (datasheet)
OPERATING VOLTAGE	5V
VIN MIN-MAX	7-21V
DC CURRENT PER I/O PIN	20 mA
DC CURRENT FOR 3.3V PIN	50 mA
CLOCK SPEED	20MHz
CPU FLASH MEMORY	48KB (ATMega4809)
SRAM	6KB (ATMega4809)
EEPROM	256byte (ATMega4809)
PWM PINS	5 (D3, D5, D6, D9, D10)
UART	1
SPI	1
I2C	1
ANALOG INPUT PINS	8 (ADC 10 bit)
ANALOG OUTPUT PINS	Only through PWM (no DAC)
EXTERNAL INTERRUPTS	all digital pins
LED_BUILTIN	13
USB	Uses the ATSAMD11D14A (datasheet)
LENGTH	45 mm
WIDTH	18 mm
WEIGHT	5 gr (with headers)

Product Information

Availability In stock
Manufacturer Arduino
EAN 7630049201477
Product path Home Development Cards Arduino Arduino® Nano Arduino Nano Every (ABX00028)
SKU ARD-ABX00028
Attributes
- Compatible Arduino Nano
- RAM Memory 6KB
- Memory FLASH 48KB
- Clock Frequency 20MHz
- Processor AVR (ATMEGA4809)
- Memory EEPROM 256B
- Manufacturer's model ABX00028
- Click for more details https://store.arduino.cc/products/arduino-nano-every?queryID=undefined
