Arduino Nano Connector Carrier is designed for fast and flexible prototyping with Arduino Nano development boards. It extends the Nano family’s capabilities by providing ready-made Qwiic and Grove connectors, allowing sensors, actuators and other modules to be connected directly without soldering or complex wiring. This makes development significantly faster and more reliable.

The board also features an integrated microSD card slot, opening new possibilities for data storage, edge AI solutions and real-time data collection. The selectable I/O voltage (3,3 V or 5 V) ensures compatibility with a wide range of components. The Nano Connector Carrier is an excellent tool for hobbyists, educational use and professionals who need a quickly adaptable development platform fit for future needs.

Features

• Plug-and-play Qwiic and Grove connectors for rapid prototyping
• Compatible with Arduino Nano development boards
• Grove connectors for analog and digital I/O signals
• I2C and UART support on Grove connectors
• Qwiic connector for I2C devices

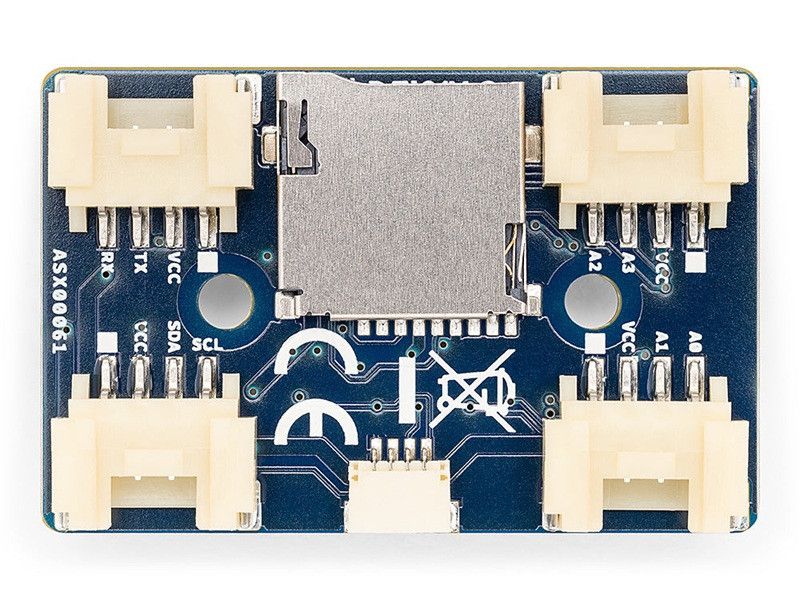

• Integrated microSD card slot for datalogging and storage applications
• Selectable I/O voltage: 3,3 V or 5 V
• Compact design optimized for development use

Technical specifications

• Name: Arduino® Nano Connector Carrier
• SKU: ASX00061
• Grove connectors (analog/digital I/O): 2
• Grove I2C: Yes
• Grove UART: Yes
• Qwiic connector: Yes (I2C)
• External storage: microSD card reader
• I/O voltage: Selectable 3,3 V / 5 V
• Dimensions: 43 × 28 mm

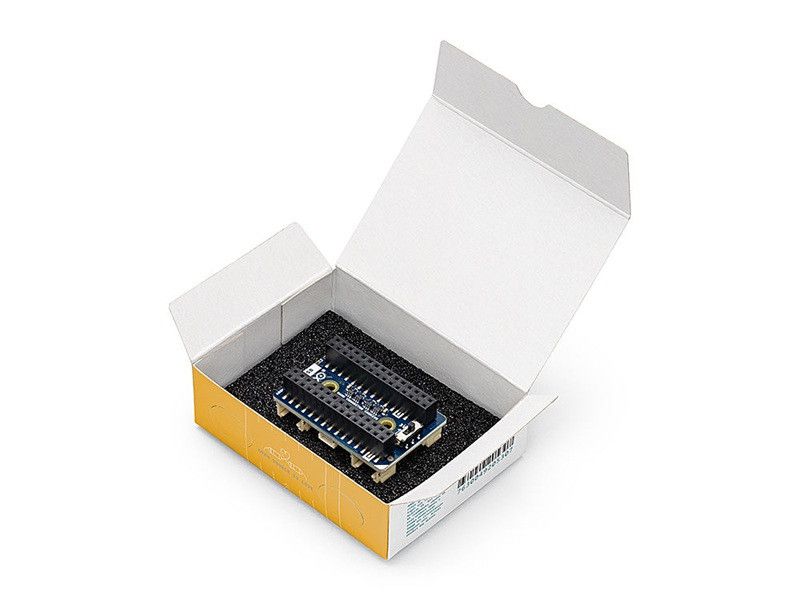

Package contents

• 1 x Arduino Nano Connector Carrier

Links

Nano Connector Carrier info page
