Arduino Nano 33 IoT (ABX00027)

Name: Arduino Nano 33 IoT (ABX00027)
Brand: Arduino
SKU: ARD-ABX00027
Price: 31.50 EUR
Availability: InStock

In stock 10 pcs

SKU#: ARD-ABX00027

Arduino Nano 33 IoT (ABX00027)

In stock 10 pcs

SKU#: ARD-ABX00027

Original Arduino® ABX00027 - Arduino Nano 33 IoT

31,50 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Arduino Nano 33 IoT is the easiest and cheapest way to upgrade existing devices (and create new ones) into the IoT and to design pico-network applications. Whether you are building a sensor network connected to an office or home router, or want to create a Bluetooth® Low Energy device that sends data to a mobile phone, the Nano 33 IoT is a one-stop solution for many basic IoT application scenarios.

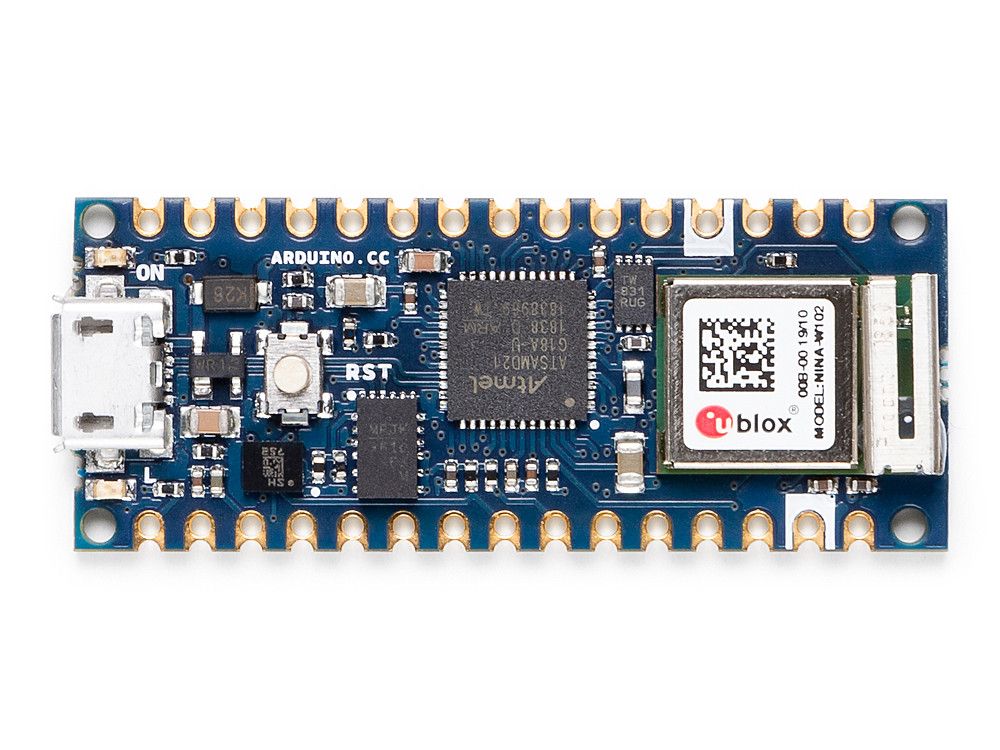

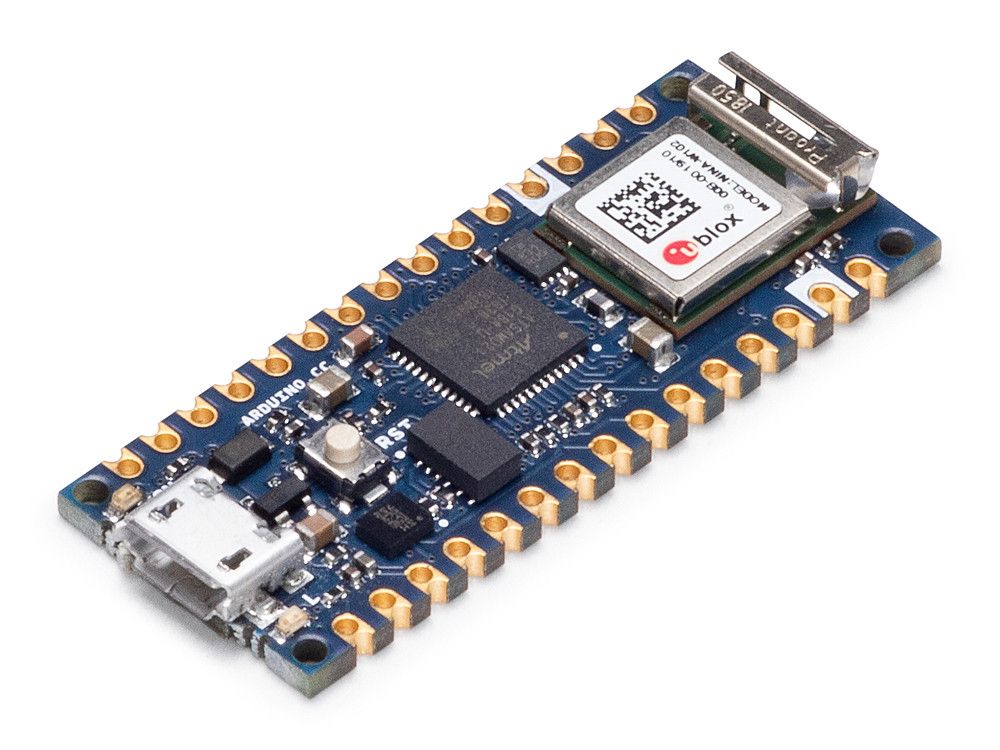

The board's main processor is a low-power Arm® Cortex®-M0 32-bit SAMD21. WiFi and Bluetooth® connectivity is implemented with u-blox's module, NINA-W10, which is a low-power chipset operating in the 2.4 GHz band. In addition, secure communication is ensured by the Microchip® ECC608 crypto chip. You will also find a 6-axis IMU, which makes this board perfect for simple vibration alarm systems, pedometers, relative positioning of robots, etc.

Specifications

MICROCONTROLLER	SAMD21 Cortex®-M0+ 32bit low power ARM MCU (datasheet)
RADIO MODULE	u-blox NINA-W102 (datasheet)
SECURE ELEMENT	ATECC608A (datasheet)
OPERATING VOLTAGE	3.3V
INPUT VOLTAGE (LIMIT)	21V
DC CURRENT PER I/O PIN	7 mA
CLOCK SPEED	48MHz
CPU FLASH MEMORY	256KB
SRAM	32KB
EEPROM	none
DIGITAL INPUT / OUTPUT PINS	14

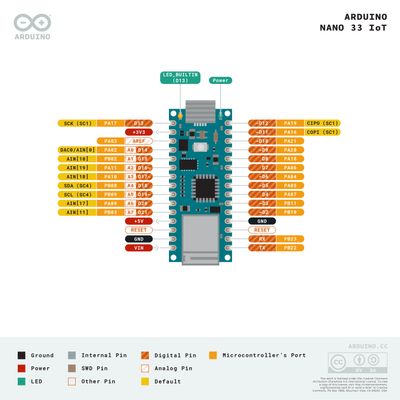

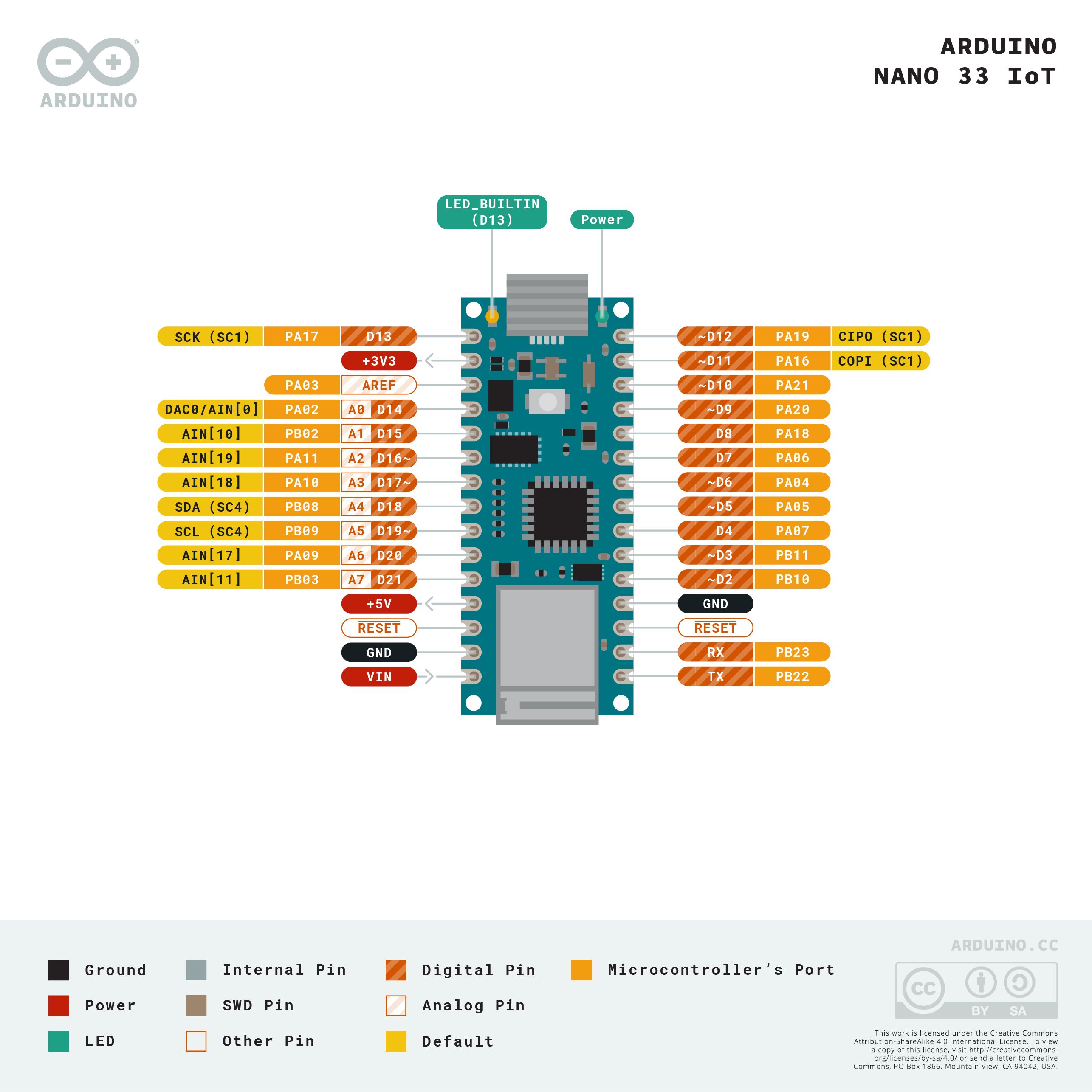

PWM PINS	11 (2, 3, 5, 6, 9, 10, 11, 12, 16 / A2, 17 / A3, 19 / A5)
UART	1
SPI	1
I2C	1
ANALOG INPUT PINS	8 (ADC 8/10/12 bit)
ANALOG OUTPUT PINS	1 (DAC 10 bit)
EXTERNAL INTERRUPTS	All digital pins (all analog pins can also be used as interrupt pins, but will have duplicated interrupt numbers)
LED_BUILTIN	13
USB	Native in the SAMD21 Processor
IMU	LSM6DS3 (datasheet)
LENGTH	45 mm
WIDTH	18 mm
WEIGHT	5 gr (with headers)

Product Information

Availability In stock
Manufacturer Arduino
EAN 7630049201460
Product path Home Development Cards Arduino Arduino® Nano Arduino Nano 33 IoT (ABX00027)
SKU ARD-ABX00027
Attributes
- Compatible Arduino Nano
- RAM Memory 32KB
- Memory FLASH 256KB
- Network Connections BT,Wifi
- Clock Frequency 48MHz
- Processor ARM Cortex-M0+ (SAMD21)
- Memory EEPROM ei
- Manufacturer's model ABX00027
- Click for more details https://store.arduino.cc/products/arduino-nano-33-iot
