Modulino® Thermo module brings reliable temperature and humidity measurement to your projects – a perfect solution for environmental monitoring, weather stations and smart devices!
The Arduino Modulino® collection includes a set of plug-and-play intelligent components that turn complex electronics into simple, interactive projects – with minimal code and maximum creativity.
Discover a new generation of ready-to-use sensors and actuators that simplify any build. The Modulino series is designed for hobbyists, teachers and professionals, and they connect easily with Qwiic cables. Thanks to the chaining technique they operate as a unified system.
Both beginners and experienced developers can implement advanced features using preconfigured Arduino Cloud templates and the Modulino library (support for both Arduino language and MicroPython).
The uniform design of the modules allows them to be swapped and reused in many new ideas. The board’s pin header interface offers advanced users the possibility for broader customization.
Compatible with Arduino Nano, Nano 33 IoT, Nano 33 BLE, Nano 33 BLE Sense, Nano Every, Nano RP2040 Connect, Nano ESP32, Nano Matter and UNO R4 WiFi boards.
Main benefits
- Plug-and-play connectivity: Connect to a Nano or UNO R4 WiFi board using the Nano Connector Carrier – easy and reliable.
- Accurate measurement: HS3003 provides reliable temperature and humidity readings without calibration.
- Energy efficient: Consumption only ~24 µA (14 bit, 3.3 V).
- Easy expandability: Add environmental monitoring without redesigning hardware.
- Integration with the Arduino ecosystem: Take advantage of Arduino software, cloud tools and community support.
Features:

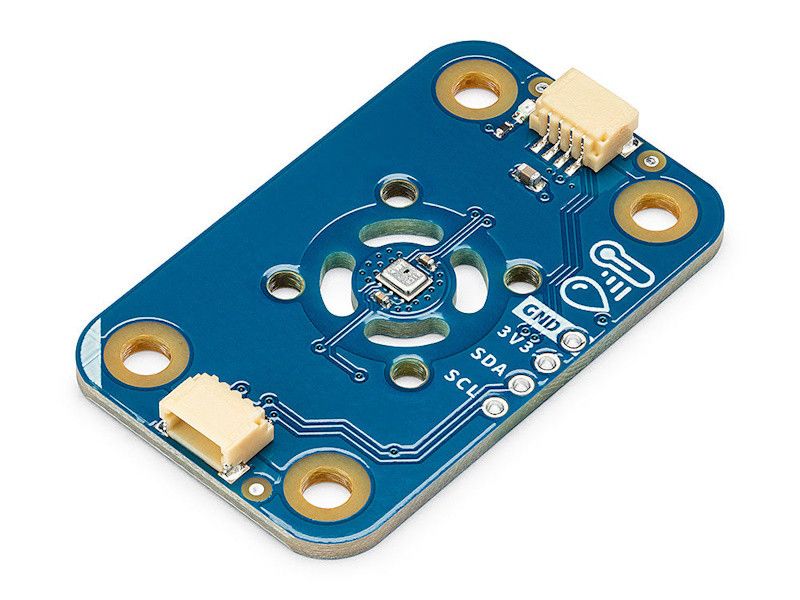

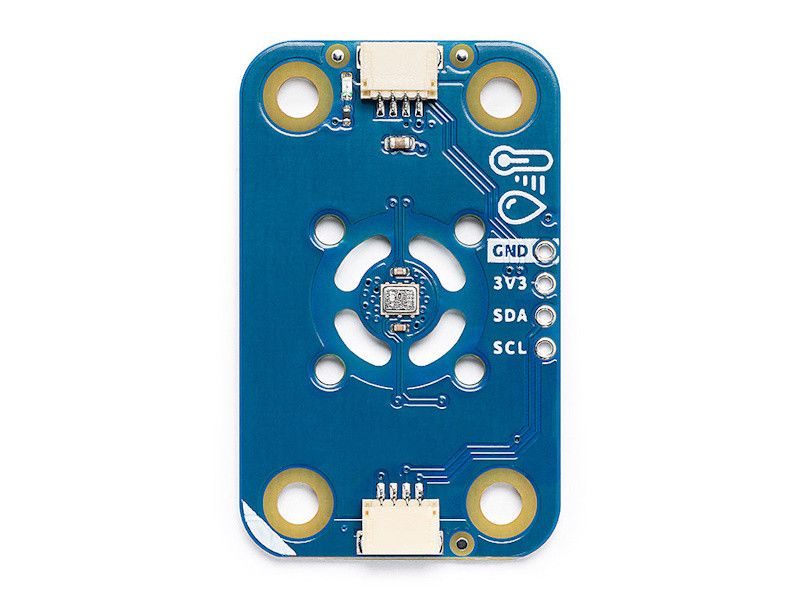

- Board name: Modulino® Thermo
- SKU: ABX00103
- Sensor: HS3003 – temperature and humidity (I²C, STM32C011)

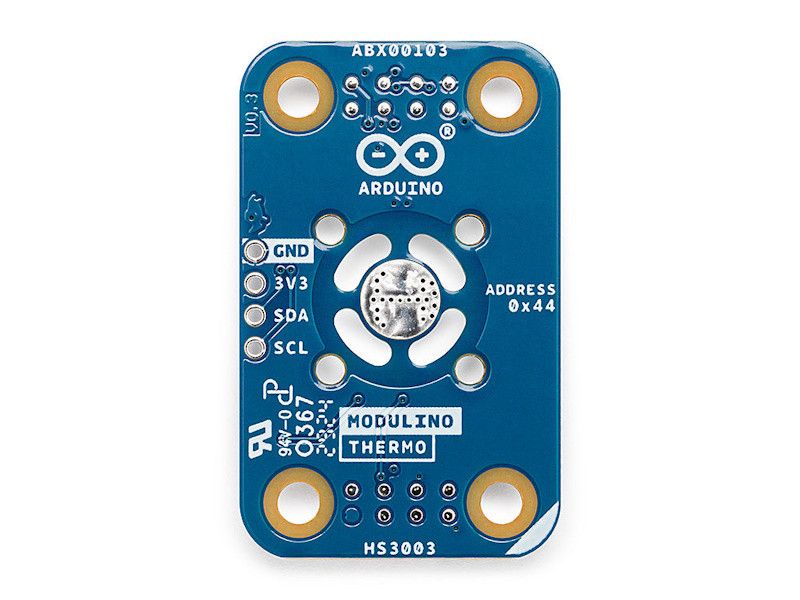

- I²C address: 0x44 (programmable)
- Connector: Qwiic (3.3 V), alternative pin header interface
- Operating voltage: 3.3 V
- Dimensions: 25,36 mm × 41 mm
- Weight: 3,6 g
- Measurement range: 0–100 % RH, –40…+125 °C
- Accuracy: ±2,8 % RH, ±0,25 °C (14 bit)
- Power consumption: ~24,4 µA @ 14 bit, 3.3 V

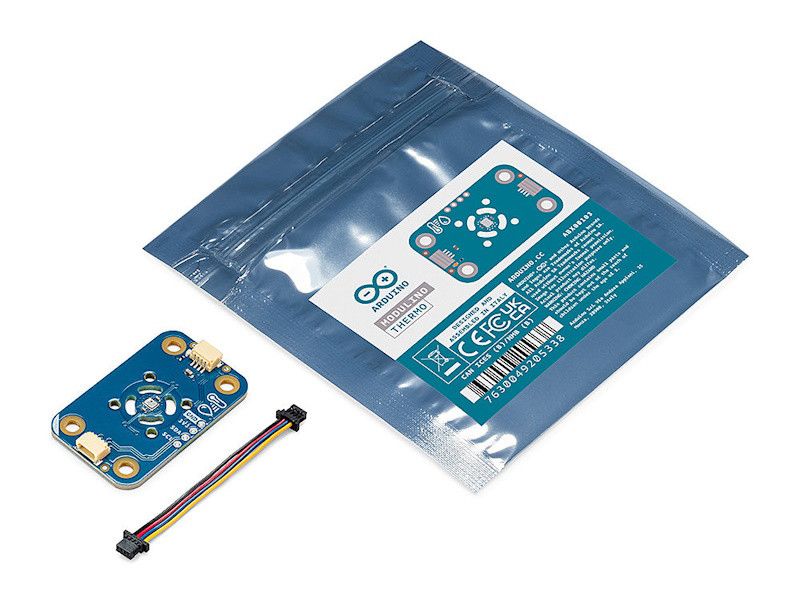

Package includes:
- Modulino® Thermo module
- Qwiic cable (5 cm)
Link:
Datasheet (PDF)
