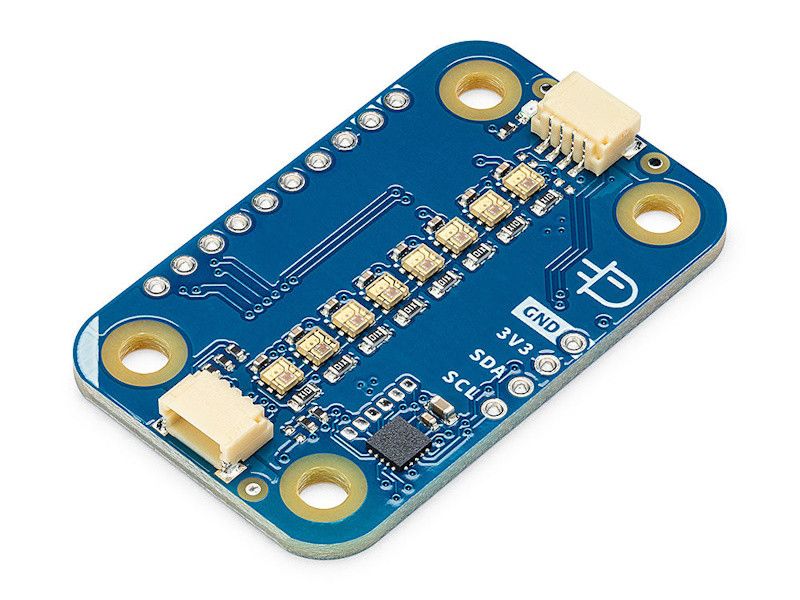

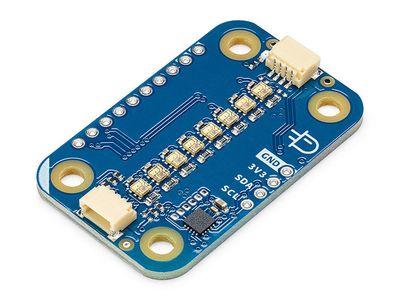

Modulino® Pixels module contains eight programmable RGB LEDs that let you easily create visual effects and animations for your projects!

The Arduino Modulino collection includes a set of plug‑and‑play smart components that turn complex electronics into simple, interactive projects – with minimal code and maximum creativity.

Discover a new generation of ready‑to‑use sensors and actuators that simplify any build. The Modulino series is designed for hobbyists, educators, and professionals, and they connect easily with Qwiic cables. Thanks to the daisy‑chain design, they operate as a unified system.

Both beginners and experienced developers can implement advanced functions using preconfigured Arduino Cloud templates and the Modulino library (support for both Arduino language and MicroPython).

The uniform design of the modules allows them to be swapped and used in many new ideas. The board’s pin header interface provides advanced users with greater customization options.

Main benefits

• Plug‑and‑play connectivity: Easily connect Modulino® nodes to Arduino UNO R4 WiFi or Nano boards using the Nano Connector Carrier adapter – quickly and reliably.
• Preassembled and compact modules: Designed to support demanding edge‑IoT projects.
• Easy scalability: Add new sensors, actuators, or controllers without redesigning hardware.
• Seamless Arduino ecosystem integration: Leverage Arduino software, cloud tools, and community support to speed up development.

Features:

• Board name: Modulino® Pixels
• Product code (SKU): ABX00109
• Eight programmable LC8822-2020 RGB LEDs with I2C control (STM32C011)
• I2C address: 0x6C (address can be changed programmatically)
• Connector: Qwiic
• Supply voltage: 3.3 V via the Qwiic connector

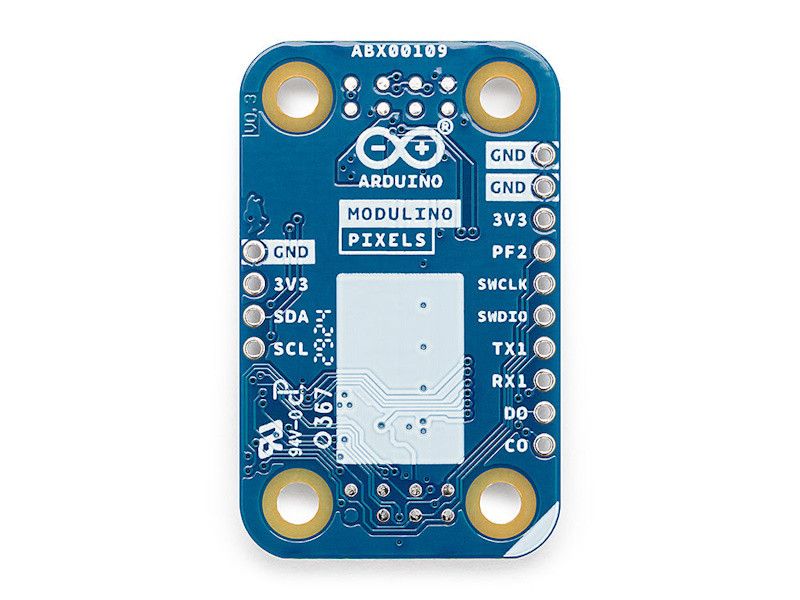

• Pins: 3.3 V
• Dimensions: 25.36 mm × 41 mm
• Weight: 3.8 g

Package includes:

• Modulino® Pixels module
• Qwiic cable (5 cm)

Link:

Datasheet (PDF)
