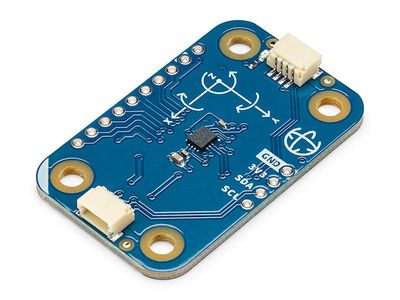

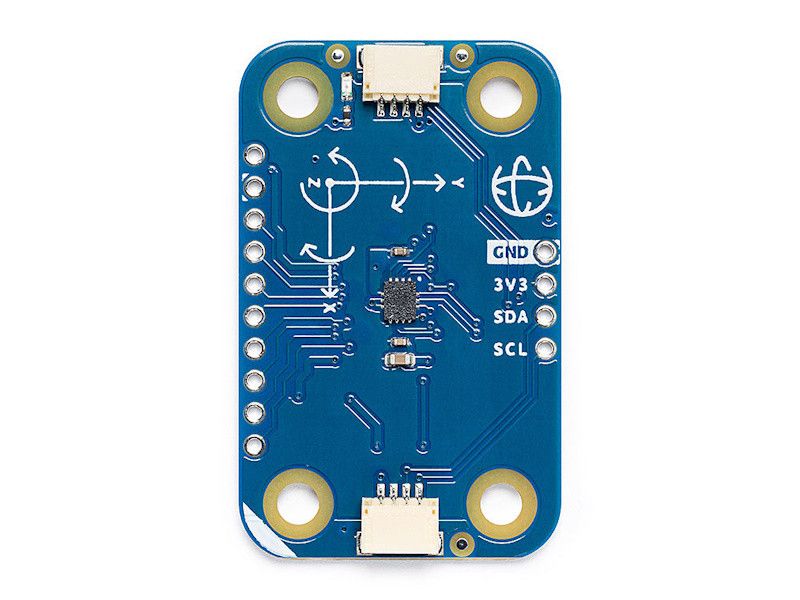

Modulino® Movement module brings precise motion sensing to your projects – measures acceleration and rotational movements (tilt, rotation, inclination) with an LSM6DSOXTR IMU sensor!
The Arduino Modulino® collection offers plug-and-play smart components that make electronics easy to use and interactive – minimal code, maximum creativity.
Connect the Modulino® Movement to other Modulino nodes and Arduino boards with a Qwiic cable – it forms a seamless network that uses daisy-chaining just like other Modulino modules.
Both beginners and experienced developers can use Arduino Cloud templates and the Modulino library (Arduino/MicroPython support) to quickly implement motion-based features such as gesture recognition, attitude measurement, or vibration monitoring.
The module’s uniform design enables easy swapping and reuse in projects. Advanced users can use the pin-header connector for additional signals such as SPI or interrupts.
Compatible with all Qwiic-compatible Arduino boards, such as Nano, UNO R4 WiFi, Nano 33 BLE, Nano ESP32, Nano RP2040 Connect and Nano Matter.
Key benefits
- Plug-and-play connectivity: Connect directly to a Nano or UNO R4 WiFi board using the Nano Connector Carrier.
- 6-axis precision: LSM6DSOXTR sensor measures 3-axis acceleration and gyroscope (roll, pitch, yaw).
- Wide applicability: Suitable for gesture recognition, pedometers, vibration monitoring, robotics and motion control.
- Easy expandability: Add functionality without redesigning hardware.
- Arduino ecosystem integration: Support for Arduino IDE, Arduino Cloud and the Modulino library.
Technical specifications:
- Board name: Modulino® Movement
- Product code (SKU): ABX00101
- IMU sensor: LSM6DSOXTR – 3-axis accelerometer + 3-axis gyroscope

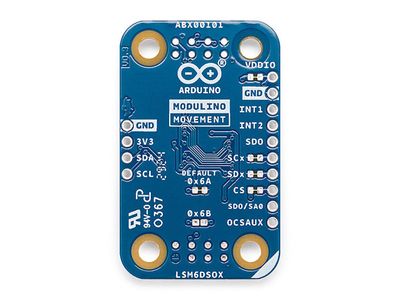

- I²C address: 0x6A (changeable to 0x6B with a solder jumper)
- Connector: Qwiic (3.3 V), pin header also available
- Operating voltage: 3.3 V
- Dimensions: 25,36 × 41 mm
- Weight: 3.9 g
- Accel current draw: ~170 µA; Gyro: ~0.55 mA
- Operating temperature: –40…+85 °C
Package includes:
- 1 × Modulino® Movement module
- 1 × Qwiic cable (5 cm)
Link:
Datasheet (PDF)
