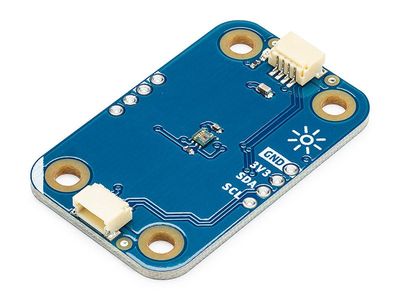

Arduino Modulino® Light is an easy-to-use light module that detects infrared light, recognizes colors and measures ambient light levels. It is part of the Modulino® series, which turns complex electronics into simple and creative projects without soldering or complicated wiring. The module is ideal for environment-responsive applications such as automatic lighting adjustment, color detection and smart IoT solutions.

Modulino® Light is pre-soldered and designed for demanding use cases. It connects easily with a Qwiic cable and supports daisy-chain connections, allowing multiple Modulino modules to be chained into a single unified system. The module works seamlessly with Arduino software, cloud services and a large developer community, accelerating development in both education and more demanding projects.

Features

• Detects IR light, colors and ambient light level
• Plug-and-play Qwiic connector with no soldering required
• Daisy-chain support for chaining multiple modules
• Pre-soldered
• Compatible with, among others, Arduino UNO R4 WiFi, UNO Q, Nano and Nesso N1 platforms
• Seamless integration with Arduino software and cloud services

Technical specifications

• Model: Modulino® Light
• SKU: ABX00111
• Sensor component: LTR-381RGB-01
• Connector: QWIIC (I2C)
• I2C address: 0x53
• Operating voltage: 3.3V
• Dimensions: 41 x 25.36mm
• Weight: 4.4g

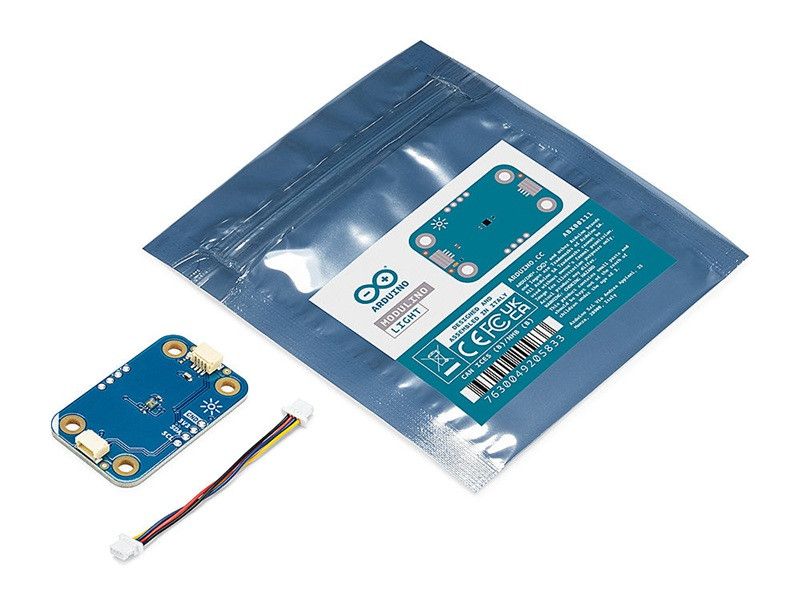

Package contents

• 1 x Arduino Modulino® Light module
• 1 x Qwiic cable (5cm)

Links

• Modulino Light info page
