Modulino® LED Matrix module contains an 8 × 12 charlieplexed LED matrix with a total of 96 blue LEDs. The module is suitable for displaying text, symbols and simple animations in Arduino projects.

The Arduino Modulino collection includes a range of plug-and-play smart components that turn complex electronics into simple, interactive projects – with minimal code and maximum creativity.

Explore a new generation of ready-to-use sensors and actuators that significantly simplify project assembly. The Modulino series is designed for hobbyists, educators and professionals. Thanks to the daisy-chaining technique using Qwiic cables, the modules can be connected easily without soldering to form a single working system.

Beginners, experienced hobbyists and professionals alike can create advanced functionality using preconfigured Arduino Cloud templates and the Modulino library (support for both Arduino language and MicroPython).

The uniform design of the modules allows them to be swapped and used in many new ideas. The board's pin header connection provides advanced users with the option for greater customization.

Main benefits

• Plug-and-play connectivity: Easily connect Modulino® modules to Arduino UNO R4 WiFi or Nano boards using the Nano Connector Carrier adapter.
• Compact display module: Suitable for presenting text, symbols and animations.
• Easy expandability: Add the module as part of a larger Qwiic-based system.
• Seamless Arduino ecosystem integration: Leverage Arduino software, cloud tools and community support.

Specifications

• Board name: Modulino® LED Matrix
• Product code (SKU): ABX00152

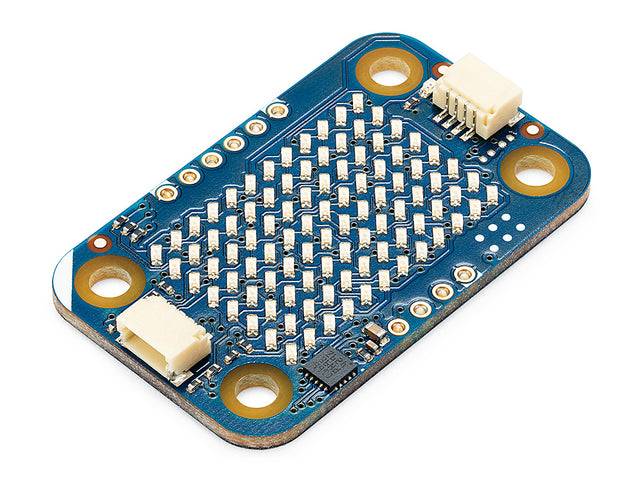

• 8 × 12 charlieplexed LED matrix (96 blue LEDs), controller: STM32C011
• I2C address: 0x39 (address programmable)
• Connector: Qwiic
• Supply voltage: 3,3 V via the Qwiic connector
• Logic level: 3,3 V
• Dimensions: 25,36 mm × 41 mm
• Weight: 4,4 g

Package contents

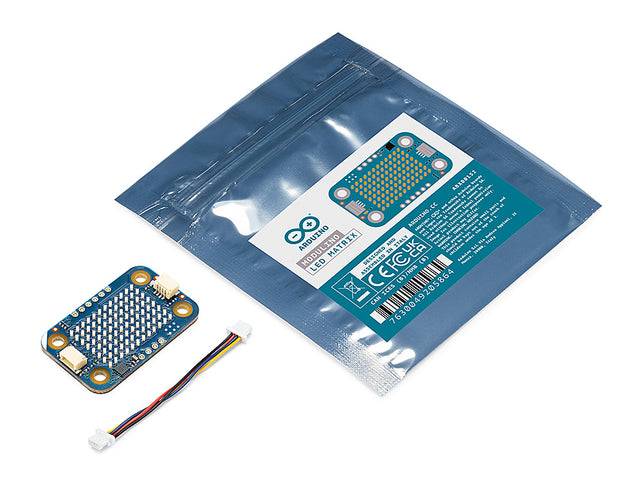

• Modulino® LED Matrix module
• Qwiic cable (5 cm)

Links

Datasheet (PDF)
