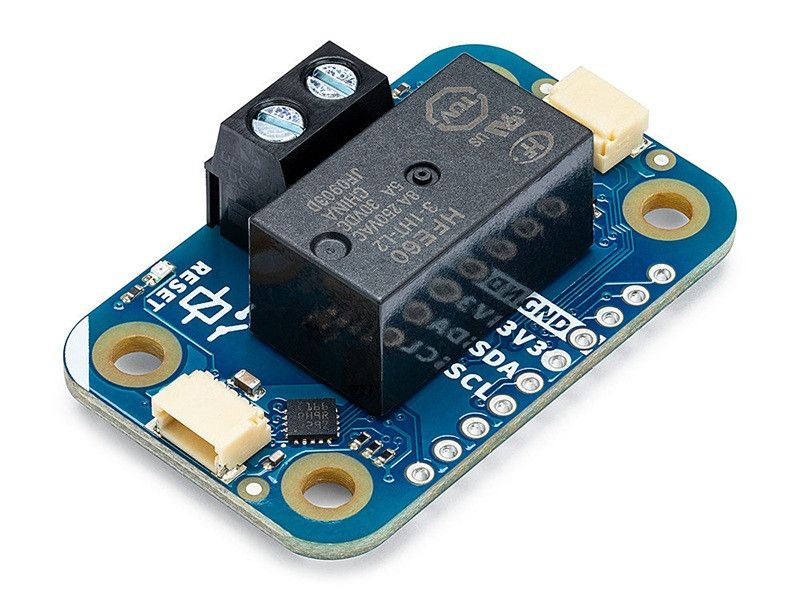

The Arduino Modulino® Latch Relay enables energy-efficient control of external electrical loads in automation and smart energy applications. The latching relay uses power only at the moment of switching, making it an excellent choice for battery-powered systems, for example. The module integrates seamlessly into the Modulino® ecosystem and turns complex electronics into simple, interactive projects with minimal code.

The Modulino® Latch Relay is delivered fully assembled and connects via a Qwiic cable to development boards such as the Arduino UNO R4 WiFi, UNO Q, Nano, or Nesso N1 without soldering or complex wiring. Thanks to daisy-chain support, multiple Modulino modules can be chained into a single system. Full compatibility with Arduino software, cloud services, and a large developer community speeds up development for hobbyists, educators, and professionals alike.

Features

• Latching relay for safe and energy-efficient switching of external loads
• Extremely low power consumption – power is used only during switching
• Plug-and-play Qwiic (I2C) connector with no soldering required
• Daisy-chain support for chaining multiple Modulino modules
• Pre-soldered, compact, and durable construction
• I2C address configurable by software
• Compatible with Arduino UNO R4 WiFi, UNO Q, Nano, and Nesso N1 boards
• Seamless integration with the Arduino ecosystem and cloud services

Technical specifications

• Model: Modulino® Latch Relay
• SKU: ABX00138
• Main component: SY32A-S-105D1M1 (STM32C011 for I2C communication)
• Connector: QWIIC (I2C)
• I2C address: 0x04 (configurable by software)
• Operating voltage: 3.3 V
• Dimensions: 41 x 25.36 mm
• Weight: 4.4 g

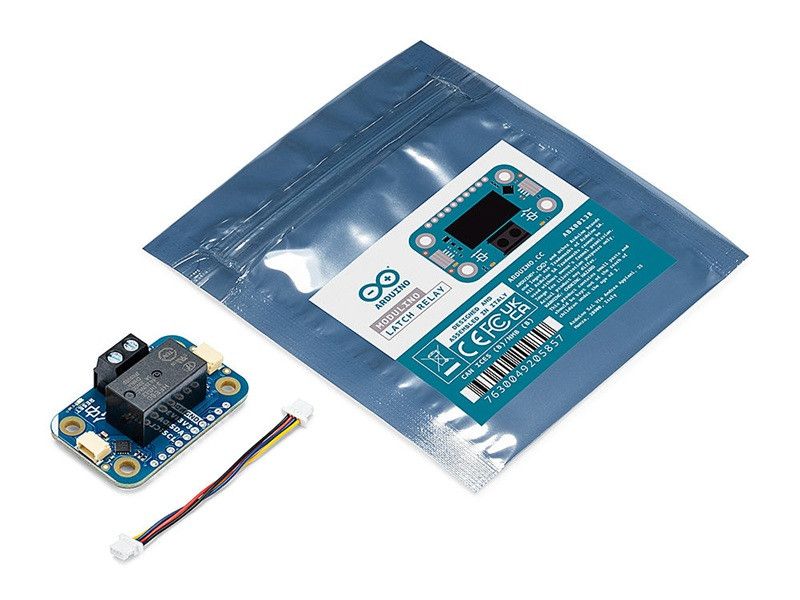

Package contents

• 1 x Arduino Modulino® Latch Relay module
• 1 x QWIIC cable (5 cm)
