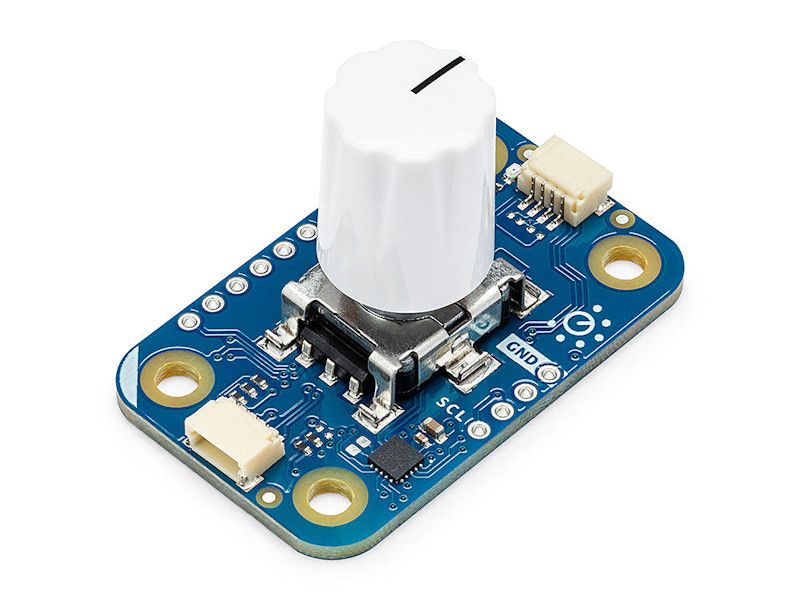

Modulino® Knob module brings a precise and intuitive encoder interface to your projects – ideal for building knobs, menus and other interactive UIs!
The Arduino Modulino® collection includes a set of plug-and-play smart components that turn complex electronics into simple, interactive projects – with minimal code and maximum creativity.
Discover a new generation of ready-to-use sensors and actuators that simplify any build. The Modulino series is designed for hobbyists, educators and professionals, and they connect easily with Qwiic cables. Thanks to daisy-chaining, they operate as a unified system.
Both beginners and experienced developers can implement advanced features using preconfigured Arduino Cloud templates and the Modulino library (support for both Arduino language and MicroPython).

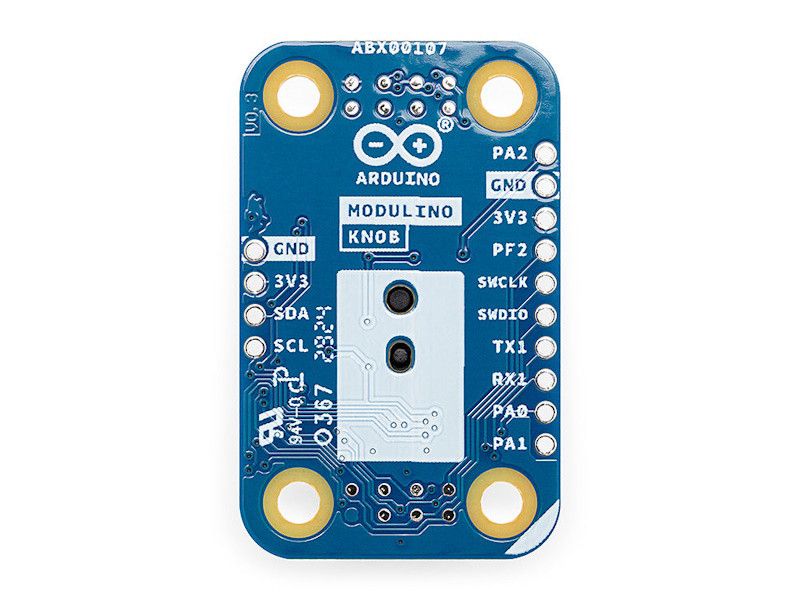

The modules’ uniform design allows them to be swapped and used in many new ideas. The board’s pin header connection offers advanced users greater customization.
Compatible with Arduino Nano, Nano 33 IoT, Nano 33 BLE, Nano 33 BLE Sense, Nano Every, Nano RP2040 Connect, Nano ESP32, Nano Matter, and UNO R4 WiFi boards.
Main benefits
- Plug-and-play connectivity: Connect Modulino® modules to a Nano or UNO R4 WiFi board using the Nano Connector Carrier – easy and reliable.
- Precise, preinstalled control module: Suitable as interface knobs and parameter controls.
- Easy expandability: Add control functions without redesigning the hardware.
- Arduino ecosystem integration: Leverage Arduino software, cloud tools and community support to speed up development.
Specifications:
- Board name: Modulino® Knob
- Product code (SKU): ABX00099

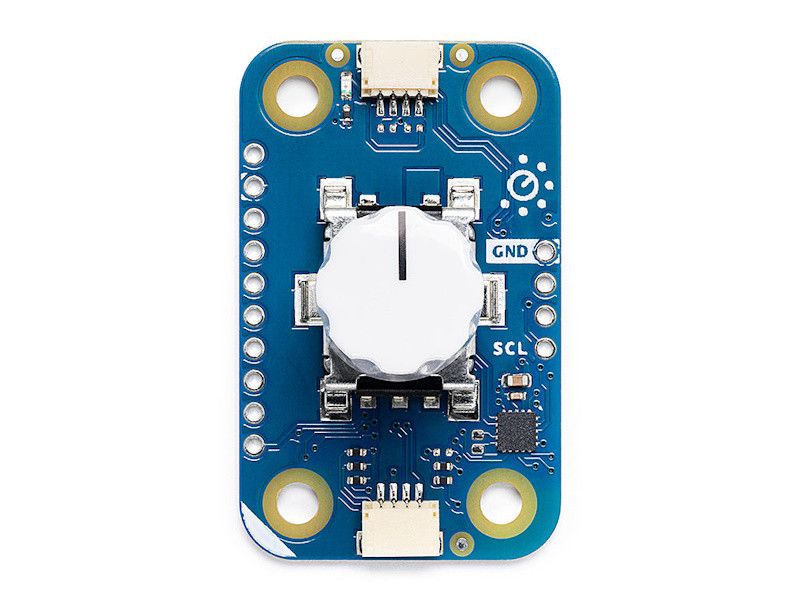

- Combined rotary potentiometer and push button: Enables versatile input over I2C (STM32C011 chip)
- I2C address: 0x3E (programmable)
- Connector: Qwiic (3,3 V), alternative pin header connection
- Supply voltage: 3,3 V
- Dimensions: 25,36 mm × 41 mm
- Weight: 5,0 g

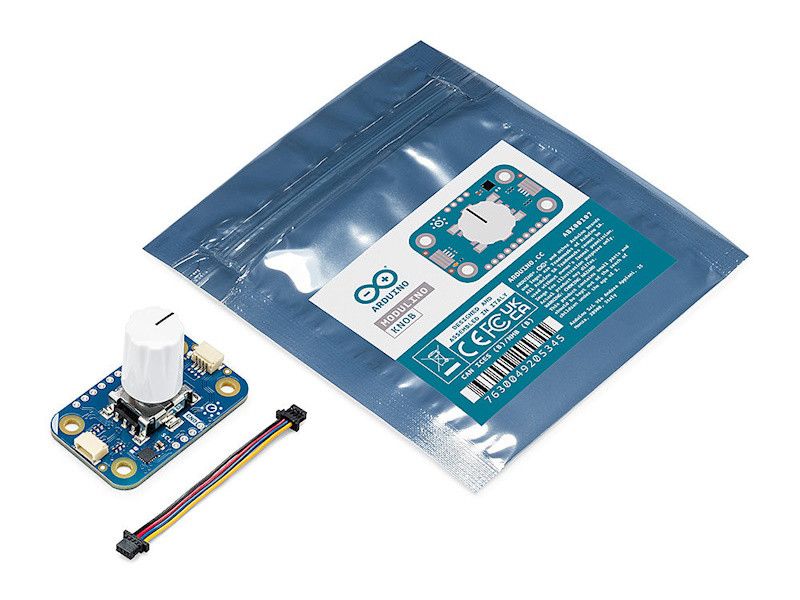

Package includes:
- Modulino® Knob module
- Qwiic cable (5 cm)
Link:
Datasheet (PDF)
