Modulino® Distance module enables precise distance measurement in your projects – it is an excellent choice for obstacle detection, presence sensing, or interactive systems!
The Arduino Modulino® collection includes a set of plug‑and‑play smart components that turn complex electronics into simple, interactive projects – with minimal code and maximum creativity.
Discover a new generation of ready-to-use sensors and actuators that simplify any build. The Modulino series is designed for hobbyists, educators, and professionals, and they connect easily with Qwiic cables. Thanks to the chaining technique they operate as a unified system.
Both beginners and experienced developers can implement advanced features with preconfigured Arduino Cloud templates and the Modulino library (support for both the Arduino language and MicroPython).
The uniform module design allows swapping and reuse in many new ideas. The board’s pin header connector provides advanced users with greater customization options.
Compatible with Arduino Nano, Nano 33 IoT, Nano 33 BLE, Nano 33 BLE Sense, Nano Every, Nano RP2040 Connect, Nano ESP32, Nano Matter and UNO R4 WiFi boards.
Main benefits
- Plug‑and‑play connectivity: Connect Modulino® modules to Nano or UNO R4 WiFi boards with a Nano Connector Carrier – easily and reliably.
- Accurate and compact distance sensor: Suitable for obstacle detection, presence sensing and interactive projects.
- Easy expandability: Add sensors without redesigning hardware.
- Arduino ecosystem integration: Leverage Arduino software, cloud tools and community support to speed up development.
Features:

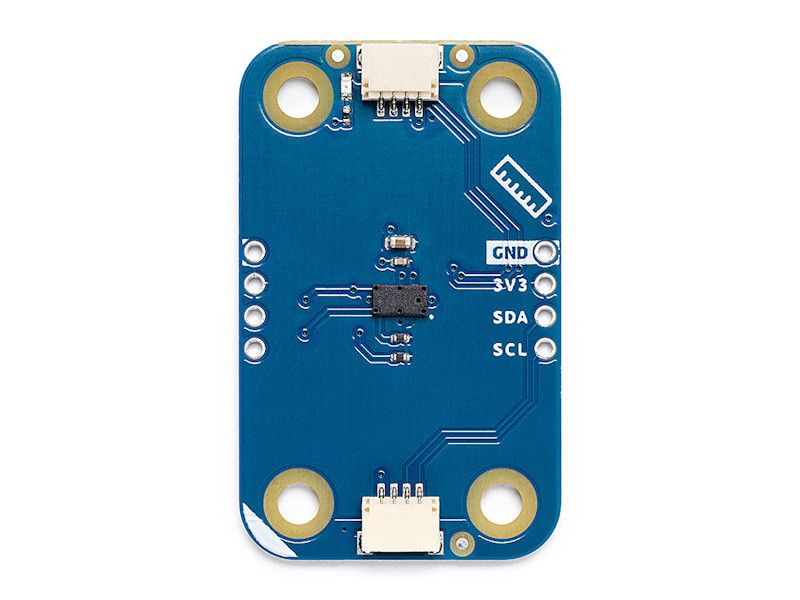

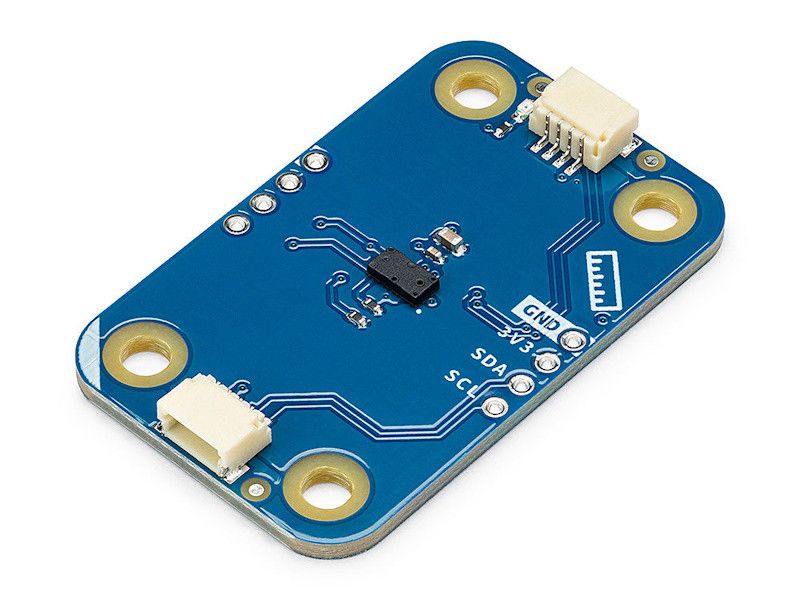

- Board name: Modulino® Distance
- Product code (SKU): ABX00106
- ToF distance sensor: VL53L4CD, measurement range up to 120 cm

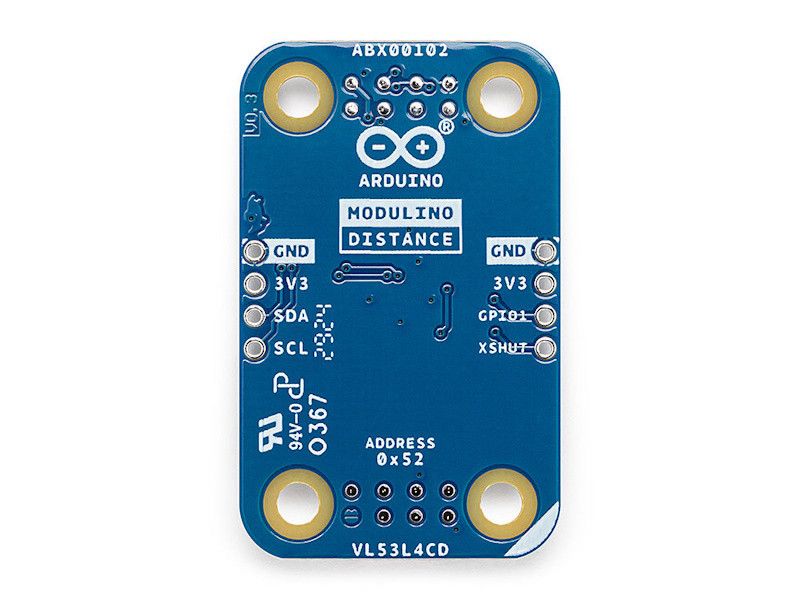

- I2C address: 0x29 (changeable in software)
- Connector: Qwiic (3.3 V), alternative pin header connector
- Supply voltage: 3.3 V
- Dimensions: 25.36 mm × 41 mm
- Weight: 3.8 g

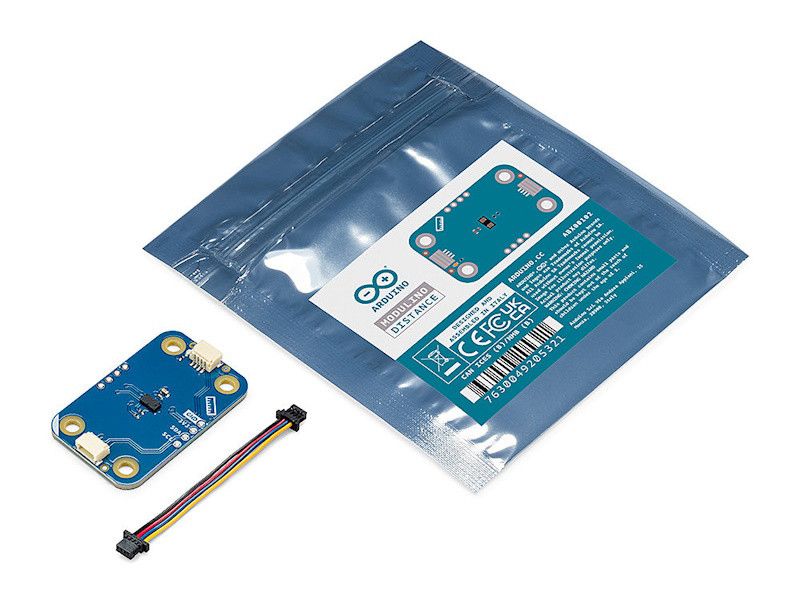

Package includes:
- Modulino® Distance module
- Qwiic cable (5 cm)
Link:
Datasheet (PDF)
