Modulino® Buzzer module adds audible feedback to your projects – easily create beeps, alarms and melodies with minimal code!
The Arduino Modulino collection includes a set of plug-and-play smart components that turn complex electronics into simple, interactive projects – with minimal code and maximum creativity.
Discover a new generation of ready-to-use sensors and actuators that simplify any build. The Modulino series is designed for hobbyists, educators and professionals, and they connect easily with Qwiic cables. Thanks to daisy-chaining, they operate as a unified system.
Both beginners and experienced developers can implement advanced functions using preconfigured Arduino Cloud templates and the Modulino library (support for both Arduino language and MicroPython).
The modules’ unified design enables swapping and reuse in many new ideas. The board’s pin header interface offers advanced users the possibility for broader customization.
Compatible with Arduino Nano, Nano 33 IoT, Nano 33 BLE, Nano 33 BLE Sense, Nano Every, Nano RP2040 Connect, Nano ESP32, Nano Matter, and UNO R4 WiFi boards.
Main benefits
- Plug-and-play connectivity: Quickly and reliably connect the Modulino® Buzzer module to Arduino UNO R4 WiFi or Nano boards using the Nano Connector Carrier adapter.
- Preassembled and compact modules: Designed to support demanding edge-IoT projects.
- Easy expandability: Add new sensors, actuators or controllers without redesigning hardware.
- Seamless Arduino ecosystem integration: Leverage Arduino software, cloud tools and community support to speed up development.
Specifications:

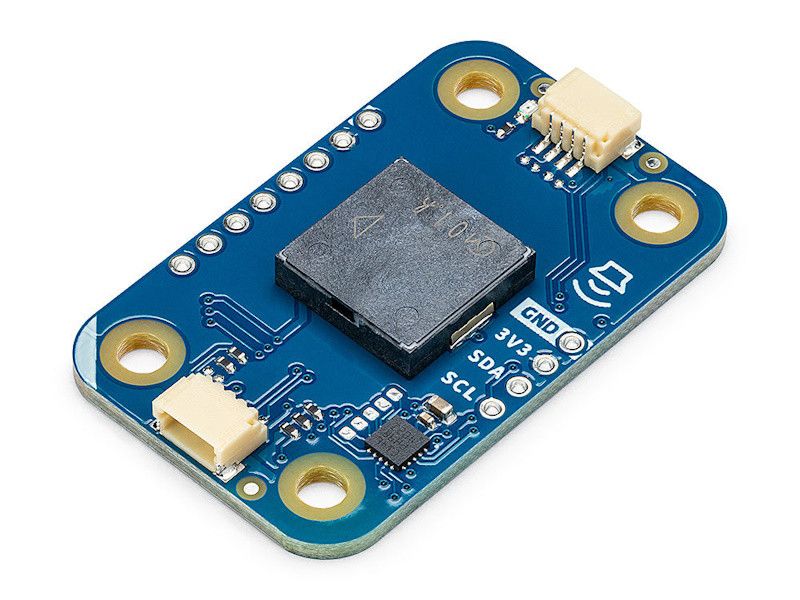

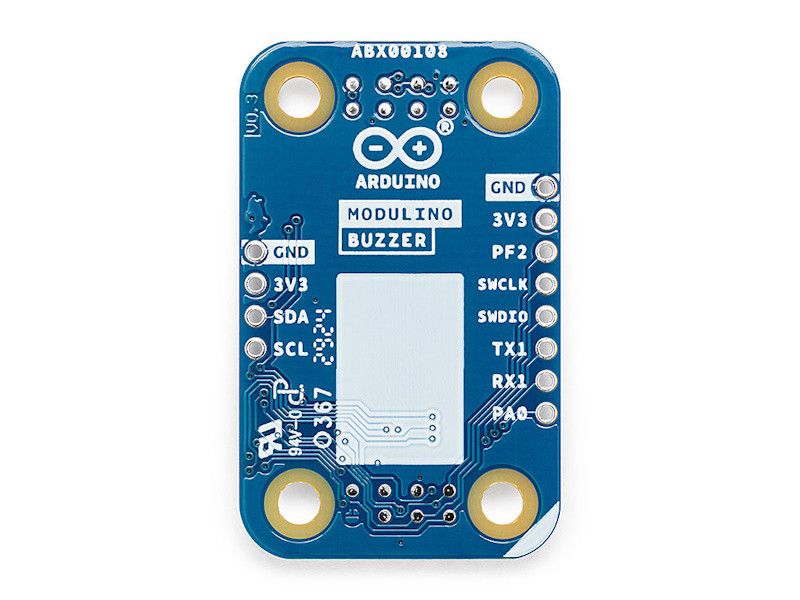

- Board name: Modulino® Buzzer
- Product code (SKU): ABX00108
- Piezo speaker: PKLCS1212E4001-R1, driven by STM32C011F4 microcontroller via I2C bus
- I2C address: 0x3C (programmable)
- Connector: Qwiic
- Supply voltage: 3,3 V via Qwiic connector or pin header
- Logic level: 3,3 V
- Dimensions: 25,36 mm × 41 mm
- Weight: 4,2 g

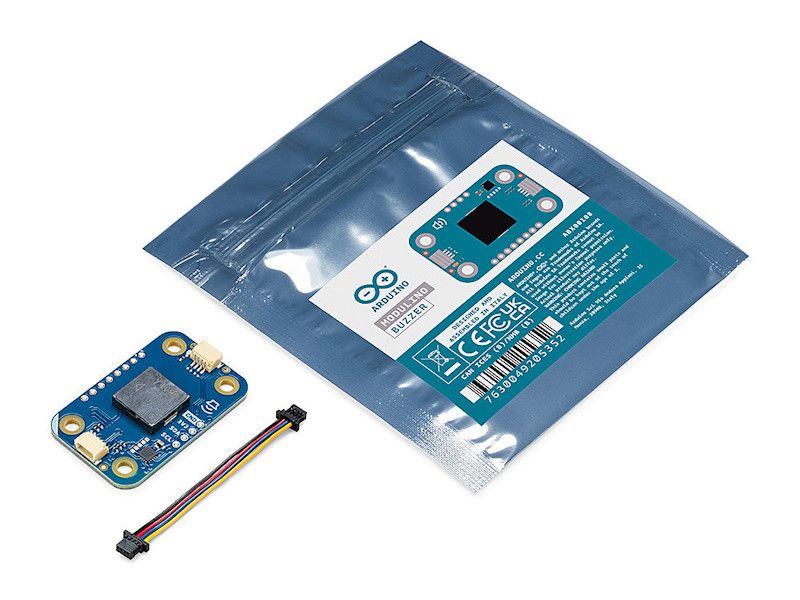

Package includes:
- Modulino® Buzzer module
- Qwiic cable (5 cm)
Link:
Datasheet (PDF)
