Modulino Buttons module offers three buttons that make developing the user interface of your project easier!
The Arduino Modulino collection includes a range of plug-and-play smart components that turn complex electronics into simple, interactive projects – with minimal code and maximum creativity.
Discover a new generation of ready-to-use sensors and actuators that simplify any build. The Modulino series is designed for hobbyists, educators and professionals, and they connect easily with Qwiic cables. Thanks to daisy-chaining, they operate as a unified system.
Both beginners and experienced developers can implement advanced features using preconfigured Arduino Cloud templates and the Modulino library (support for both Arduino language and MicroPython).
The modules’ uniform design allows them to be swapped and used across many new ideas. The board’s pin header interface offers advanced users the option for broader customization.
Compatible with Arduino Nano, Nano 33 IoT, Nano 33 BLE, Nano 33 BLE Sense, Nano Every, Nano RP2040 Connect, Nano ESP32, Nano Matter, and UNO R4 WiFi boards.
Main benefits
- Plug-and-play connectivity: Quickly and reliably connect Modulino Buttons modules to Arduino UNO R4 WiFi or Nano boards using the Nano Connector Carrier adapter.
- Preassembled and compact modules: Designed to support demanding edge-IoT projects.
- Easy extensibility: Add new sensors, actuators or controllers without redesigning hardware.
- Seamless Arduino ecosystem integration: Leverage Arduino software, cloud tools and community support to speed up development.
Features:
- Board name: Modulino Buttons
- Product code (SKU): ABX00110

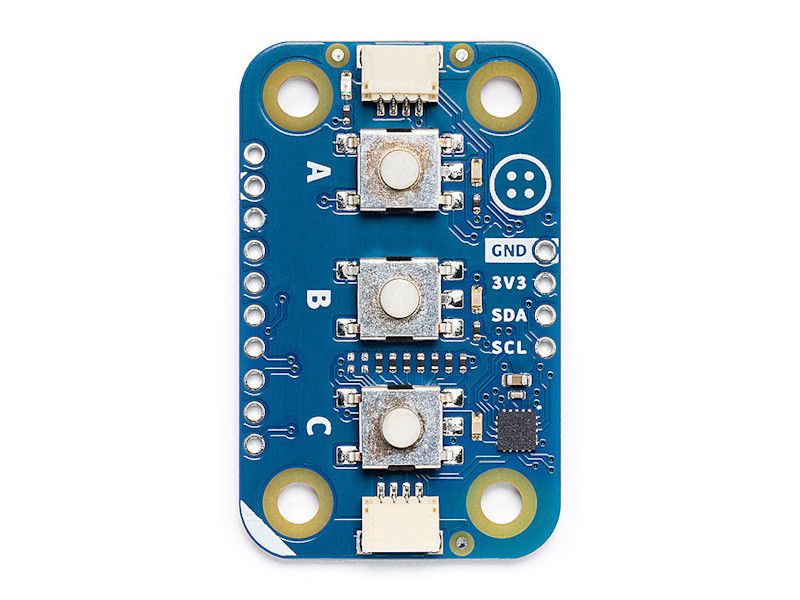

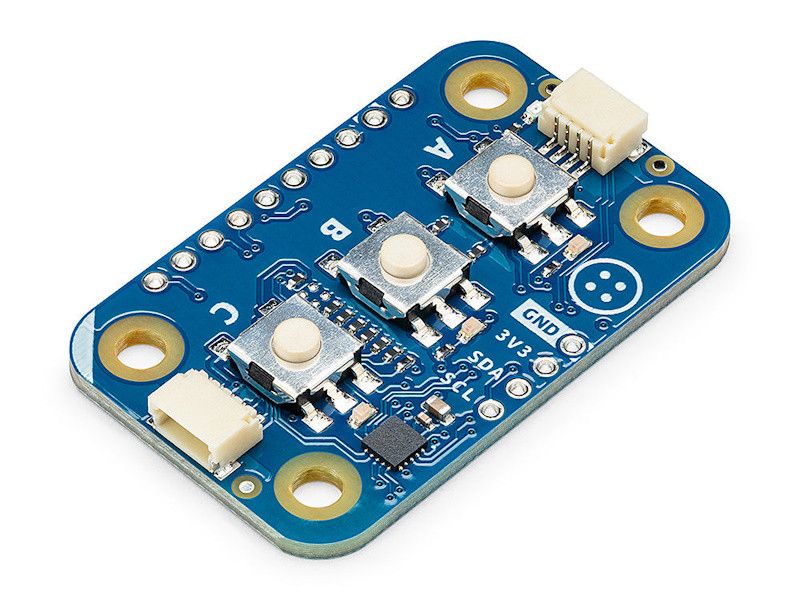

- Three buttons and three orange LEDs (I2C communication to STM32C011)
- I2C address: 0x7C (address changeable by software)
- Connector: Qwiic
- Supply voltage: 3.3 V via the Qwiic connector or through the pin header

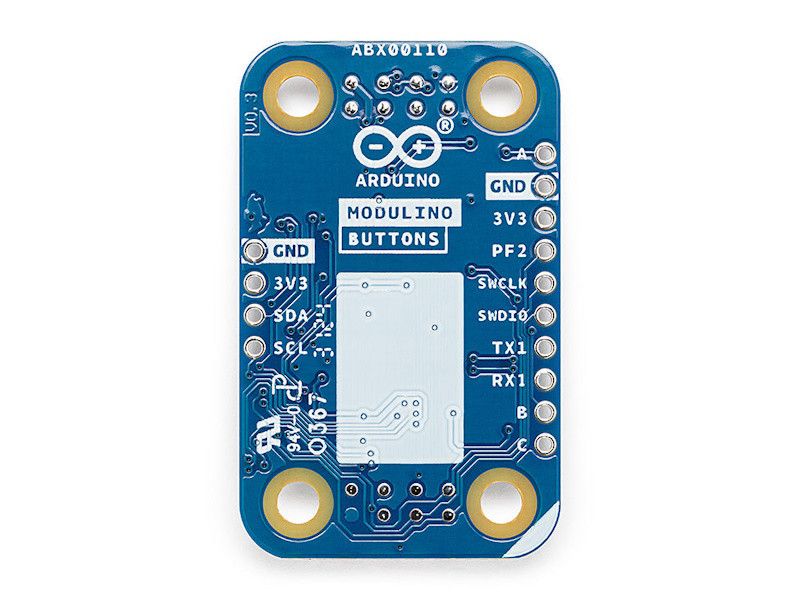

- Pins: 3.3 V
- Dimensions: 25,36 mm × 41 mm
- Weight: 4,4 g

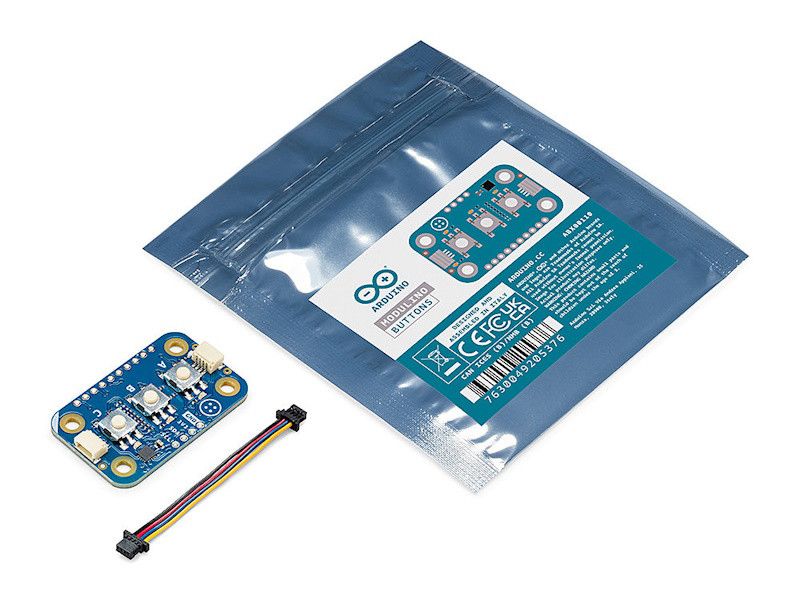

Package includes:
- Modulino Buttons module
- Qwiic cable (5 cm)
Link:
Datasheet (PDF)
