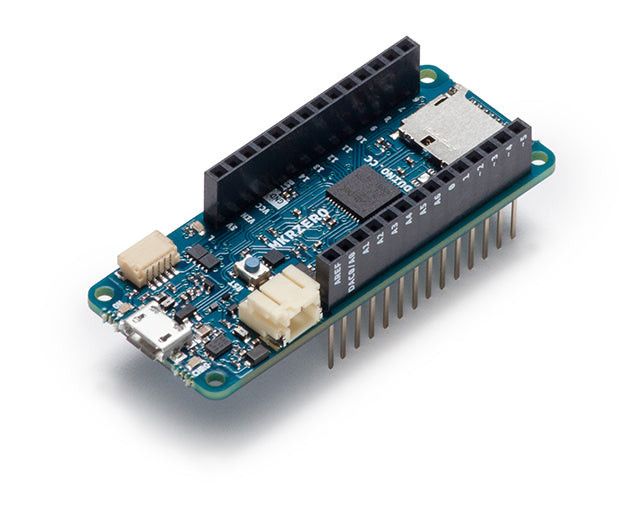

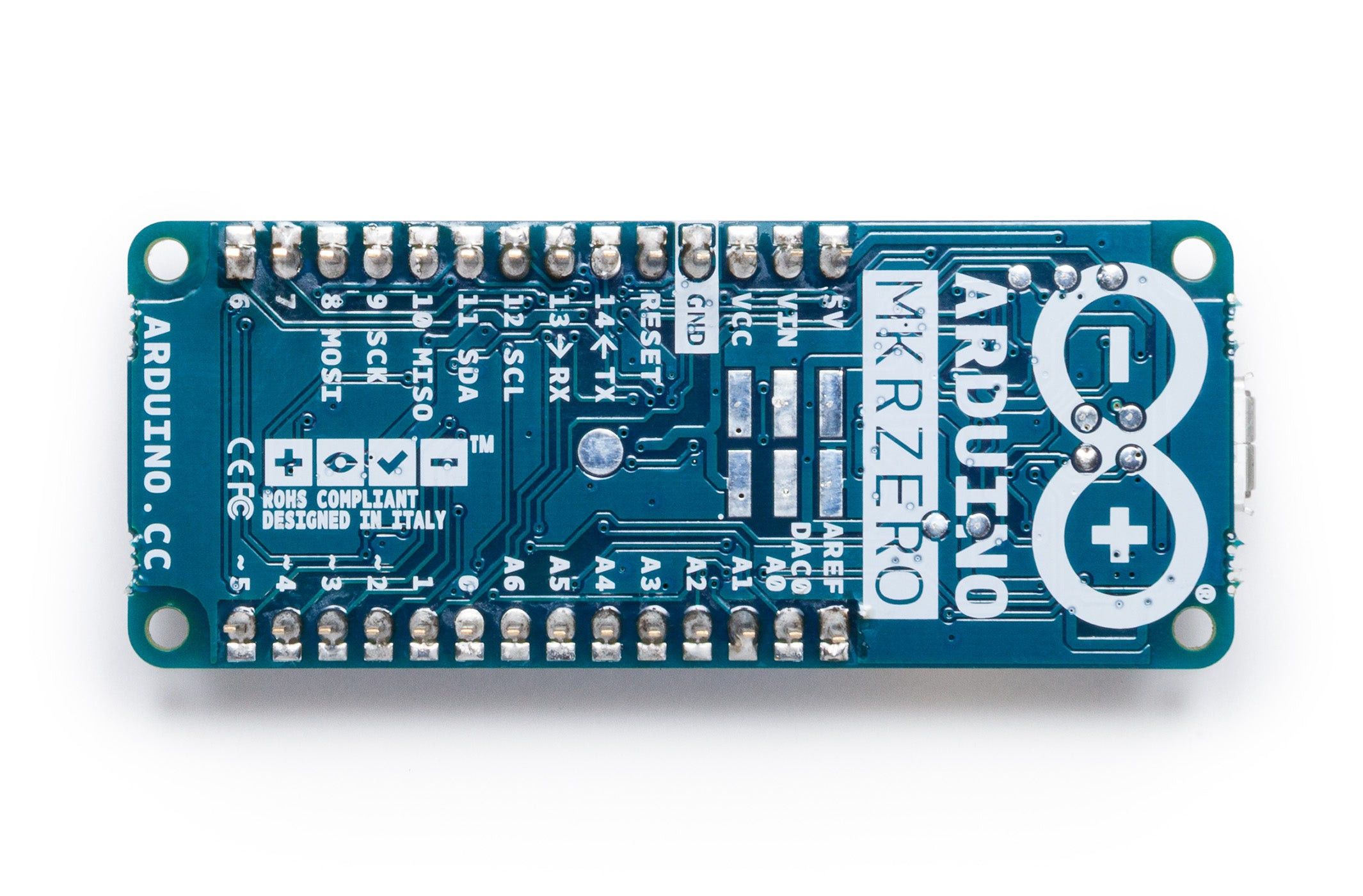

MKR ZERO offers you the power of the Zero in a smaller, well-established MKR form factor. The MKR ZERO board is an excellent learning tool for getting started with 32-bit application development. It features a built-in SD connector with its own SPI lines (SPI1), allowing you to play music files without extra hardware! The board is powered by Atmel's SAMD21 MCU, which has a 32-bit ARM Cortex® M0+ core.
Warning: Unlike most Arduino and Genuino boards, the MKRZero operates at 3.3 volts. The maximum voltage that the I/O pins can tolerate is 3.3 V. Applying voltages higher than 3.3 V to any I/O pin may damage the board.
The board includes everything needed to support the microcontroller; simply connect it to your computer with a micro-USB cable or power it with a LiPo battery. The battery voltage can also be monitored because there is a connection between the battery and the board's analog converter.
Getting Started
Getting Started - section contains all the information you need to configure the board, use the Arduino Software (IDE), and tinker with coding and electronics.
Need Help?
Specifications
| Microcontroller |
SAMD21 Cortex-M0+ 32bit low power ARM MCU |
| Board Power Supply (USB/VIN) |
5V |
| Supported Battery(*) |
Li-Po single cell, 3.7V, 700mAh minimum |
| DC Current for 3.3V Pin |
600mA |
| DC Current for 5V Pin |
600mA |
| Circuit Operating Voltage |
3.3V |
| Digital I/O Pins |
22 |
| PWM Pins |
12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19) |
| UART |
1 |
| SPI |
1 |
| I2C |
1 |
| Analog Input Pins |
7 (ADC 8/10/12 bit) |
| Analog Output Pins |
1 (DAC 10 bit) |
| External Interrupts |
10 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17) |
| DC Current per I/O Pin |
7 mA |
| Flash Memory |
256 KB |
| Flash Memory for Bootloader |
8 KB |
| SRAM |
32 KB |
| EEPROM |
no |
| Clock Speed |
32.768 kHz (RTC), 48 MHz |
| LED_BUILTIN |
32 |
| Full-Speed USB Device and embedded Host |
