Learn the basics of electronics by hand-assembling an Arduino UNO, get to know soldering by attaching each component. Unleash your creativity with this kit.

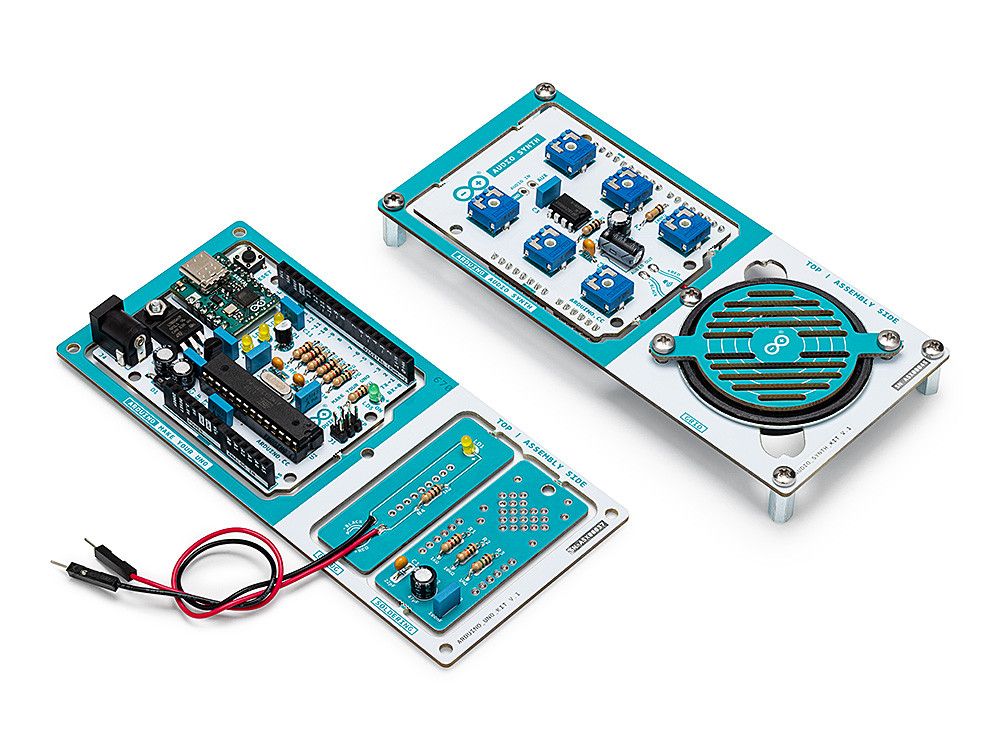

The Arduino Make Your UNO kit is truly the best way to learn soldering. And when you are ready, the pack lets you build a synthesizer and make your own music.

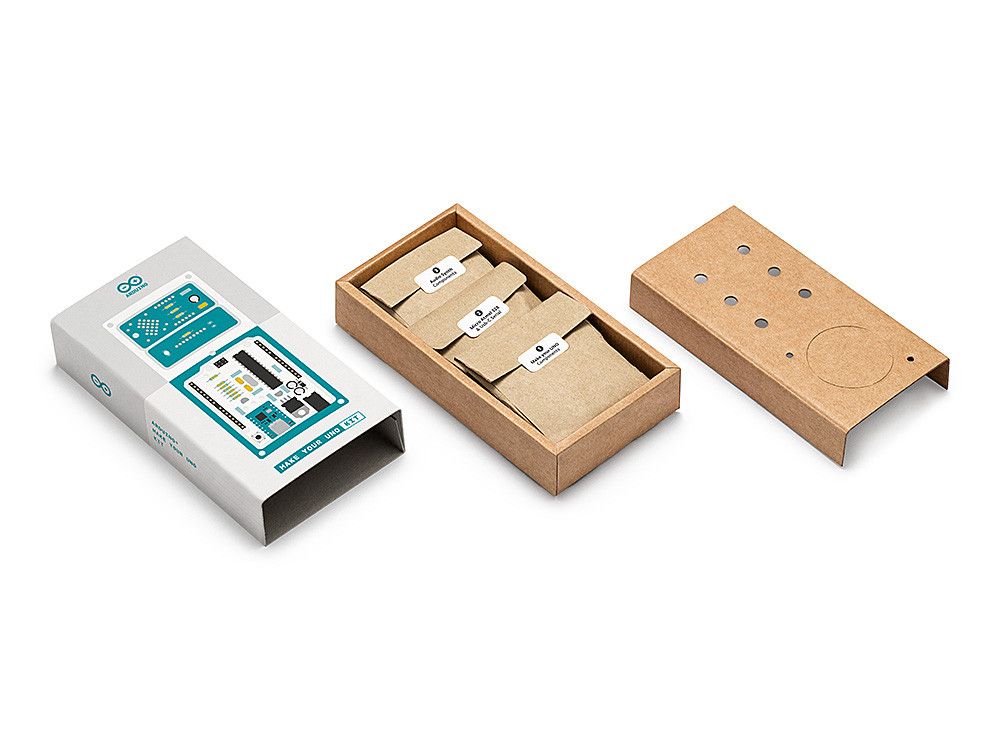

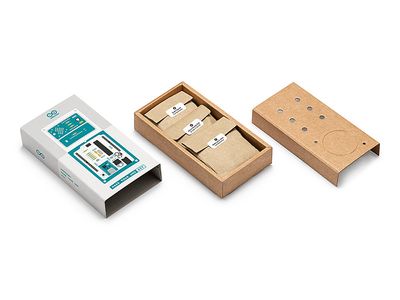

A kit that includes all the components to build your own Arduino UNO and an audio synthesizer enclosure.
The Make Your UNO kit comes with complete instructions on a dedicated content platform. This includes video material, a 3D interactive viewer to follow detailed instructions, and how to program the board once it is ready.
Technical specifications

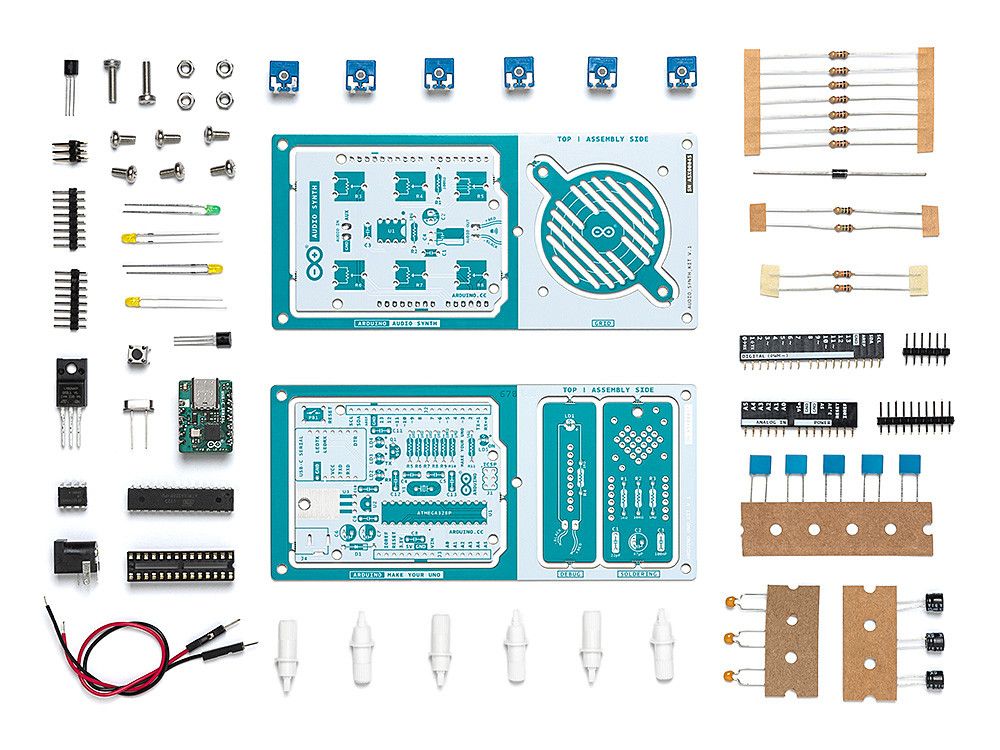

This kit includes:
- Arduino Make Your UNO
- 1 x Make Your UNO PCB
- 1 x USB C Kit adapter board
- 7 x Resistor 1k Ohm
- 2 x Resistor 10k Ohm
- 2 x Resistor 1M Ohm
- 1 x Diode (1N4007)
- 1 x 16MHz Crystal
- 4 x Yellow LEDs
- 1 x Green LED
- 1 x Push button
- 1 x MOSFET
- 1 x LDO (3.3V)
- 1 x LDO (5V)
- 3 x Ceramic capacitors (22pF)
- 3 x Electrolytic capacitors (47uF)
- 7 x Polyester capacitors (100nF)
- 1 x Socket for ATMega 328p
- 2 x I/O connectors
- 1 x Header 6 pins
- 1 x Barrel jack connector
- 1 x ATmega 328p Microcontroller
- Arduino Audio Synth
- 1 x Audio Synth PCB
- 1 x Resistor 100k Ohm
- 1 x Resistor 10 Ohm
- 1 x Audio amplifier (LM386)
- 1 x Ceramic capacitor (47nF)
- 1 x Electrolytic capacitor (47uF)
- 1 x Electrolytic capacitor (220uF)
- 1 x Polyester capacitor (100nF)
- 4 x header pins
- 6 x potentiometers 10k Ohm with plastic knobs
- Spare parts
- 2 x Electrolytic capacitors (47uF)
- 2 x Polyester capacitors (100nF)
- 2 x Ceramic capacitors (22pF)
- 1 x Slide switch
- 1 x Yellow LED
- 1 x Green LED
- Mechanical parts
- 5 x Spacers 12mm
- 11 x Spacers 6mm
- 5 x Nuts
- 2 x Screws 12mm
*This kit does not include a soldering iron or solder.
