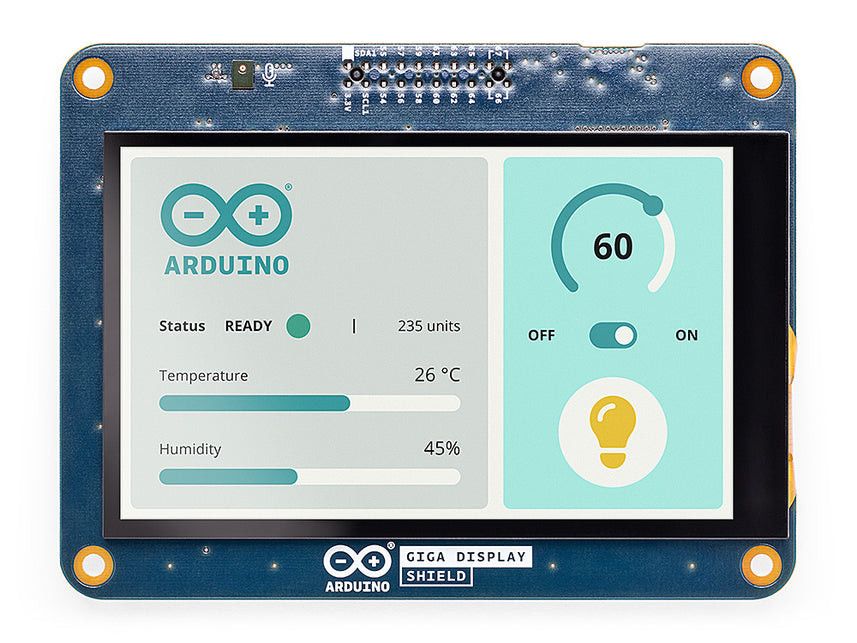

Original Arduino® ASX00039 - Arduino GIGA Display Shield, 480x800 full-color display, capacitive touch panel for the back of the Arduino GIGA R1 WiFi board. The board also has a microphone.

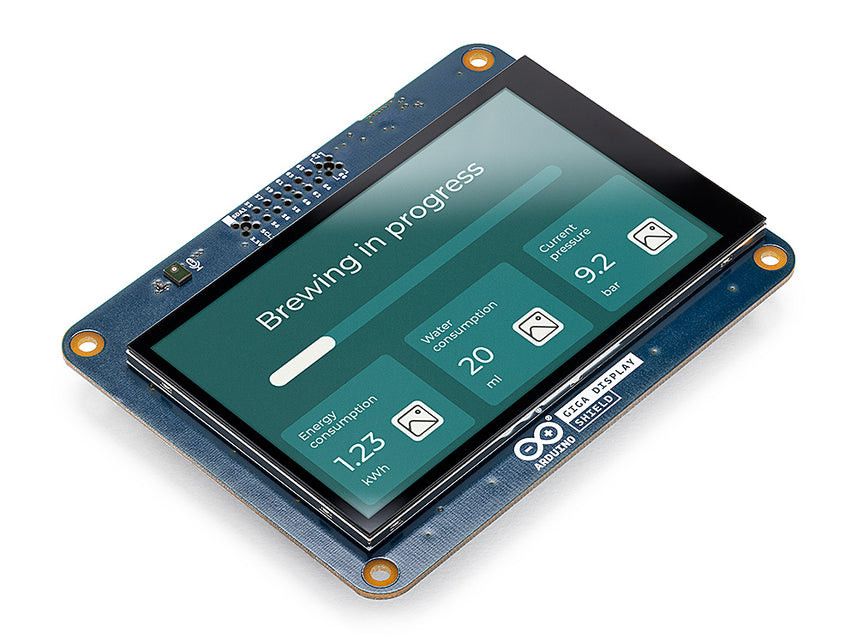

Introducing the Arduino GIGA Display Shield, a touchscreen solution designed to simplify the adoption of graphical user interfaces in your projects. This shield offers seamless integration and enhanced features.
The GIGA Display Shield gives you many features, such as a digital microphone, a 6-axis IMU, and an Arducam connector. These additional features allow full use of the other 54 available pins, making it very convenient to create handheld devices or instrument panels to control your projects.
Experience the ease and convenience of building user interfaces thanks to the GIGA Display Shield’s user-friendly design and comprehensive features. Elevate your project’s functionality and user experience with this top-tier solution.
Features
Note: The GIGA Display Shield requires the GIGA R1 WiFi board to operate. It does not include a microcontroller and cannot be programmed on its own. Also note the mounting on the back of the GIGA R1, it physically goes on both sides.
KD040WVFID026-01-C025A 3,97" TFT display
480x800 resolution
16.7 million colors
0.108 mm pixel pitch
Capacitive touch sensor
Five touch points and gestures
Edge LED backlight
BMI270 6-axis IMU (accelerometer and gyroscope)
16-bit
3-axis accelerometer with $$pm2g/pm4g/pm8g/pm16g$$ ranges
3-axis gyroscope with $$pm125dps/pm250dps/pm500dps/pm1000dps/pm2000dps$$ ranges
SMLP34RGB2W3 RGB LED
Common anode
IS31FL3197-QFLS2-TR driver with integrated charge pump
MP34DT06JTR digital microphone
AOP = 122.5 dB SPL
64 dB signal-to-noise ratio
Omnidirectional sensitivity
–26 dBFS ± 3 dB sensitivity
I/O
GIGA connector
2.54 mm camera connector
Technical specifications
Board
Name
Arduino® GIGA Display Shield
SKU
ASX00039
Connectors
Camera
SOCKET 2ROW 20POS VERTICAL PASS THROUGH (Arducam-compatible)
