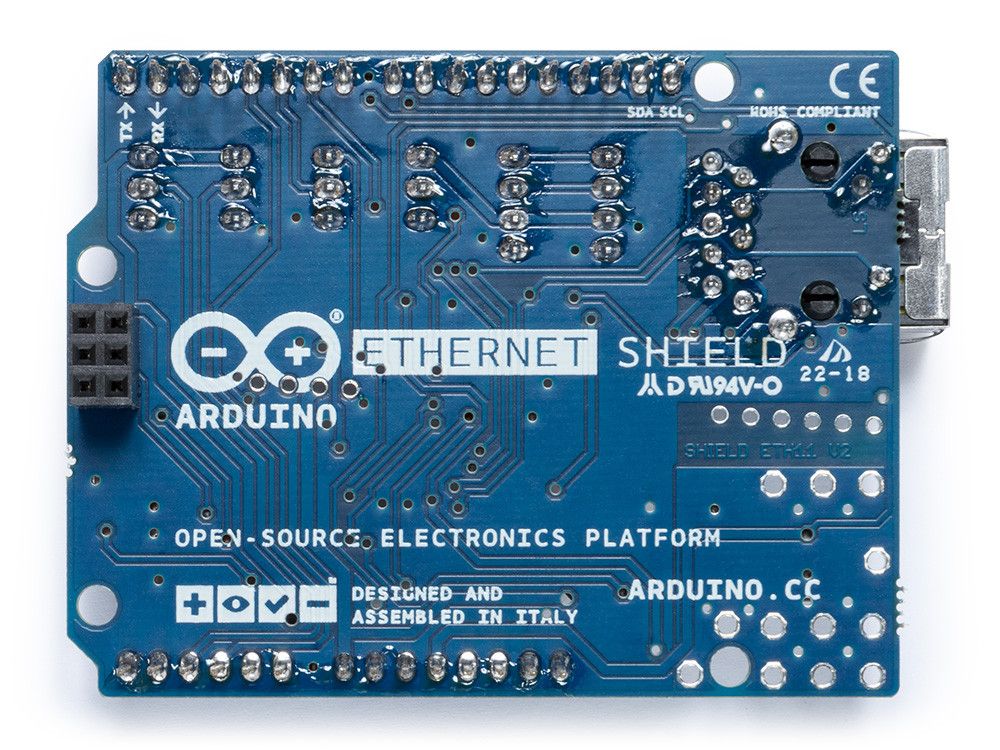

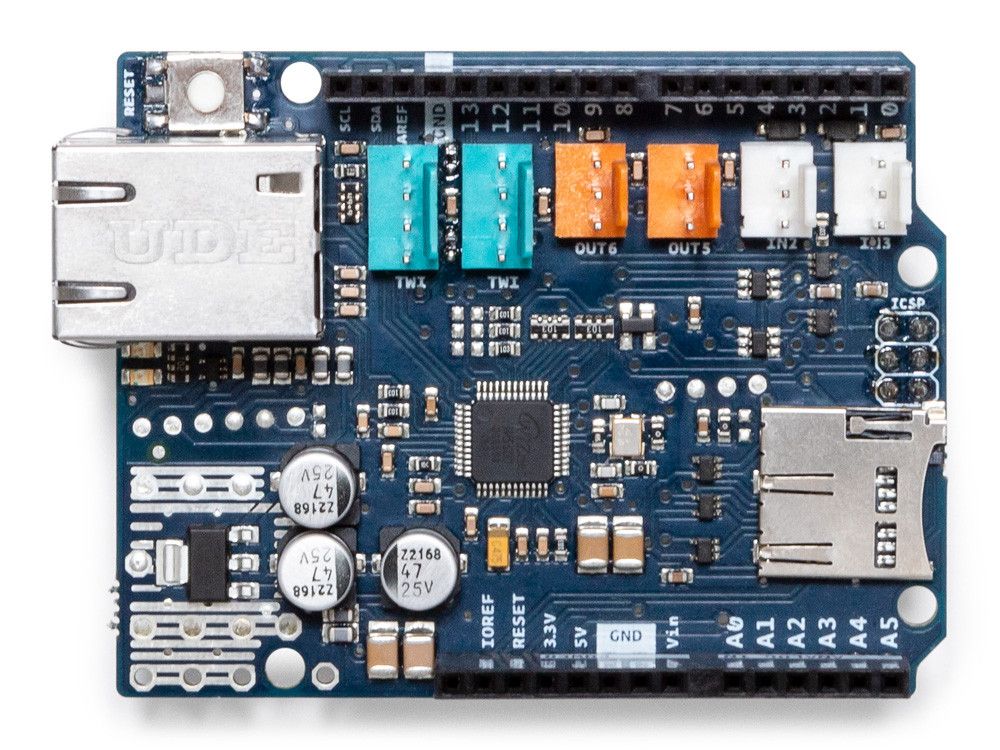

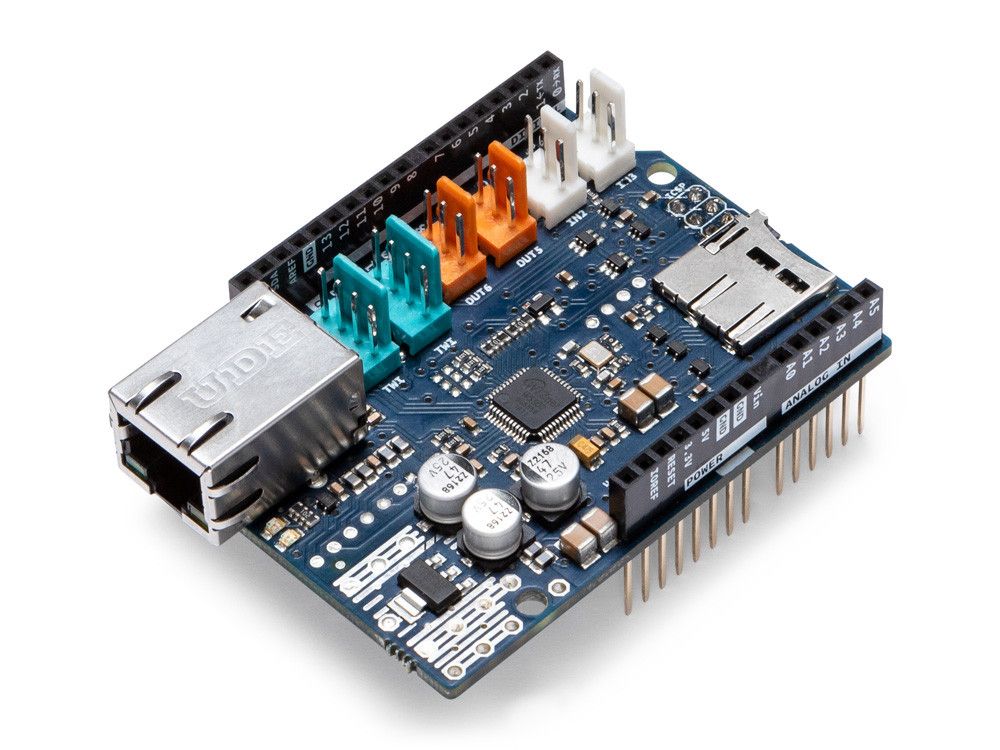

The popular Arduino Ethernet Shield from Arduino has a new updated version available. It includes a MicroSD memory card slot and follows the 1.0 pinout (UNO Rev 3). The Ethernet network interface is based on the Wiznet W5500 chip and supports up to eight simultaneous TCP/UDP socket connections. The network traffic library is included in the core installation and the memory card library is available from the link below. The RJ45 panel connector is board-mounted and communication with both the Ethernet chip and the SD card takes place over the SPI bus. In addition, five surface-mount LEDs indicate, among other things, the network status.

• Operating voltage 5V (available from the Arduino board)
• Ethernet controller: W5500, with internal 32K buffer
• Connection speed: 10/100Mb
• Connection to Arduino is via the SPI port

Specifications

• based on the Wiznet W5500 Ethernet chip
• max. 8 simultaneous TCP/UDP socket connections
• library for network traffic is included in the core installation
• library for the memory card is available from the link below
• board-mounted RJ45 panel connector
• communication with both the Ethernet chip and the SD card takes place over the SPI bus
• five surface-mount LEDs indicate e.g. network status

Links

• EAGLE FILES
• SCHEMATICS
• Learn more on the Ethernet Shield 2 in the Ethernet2 Library reference
